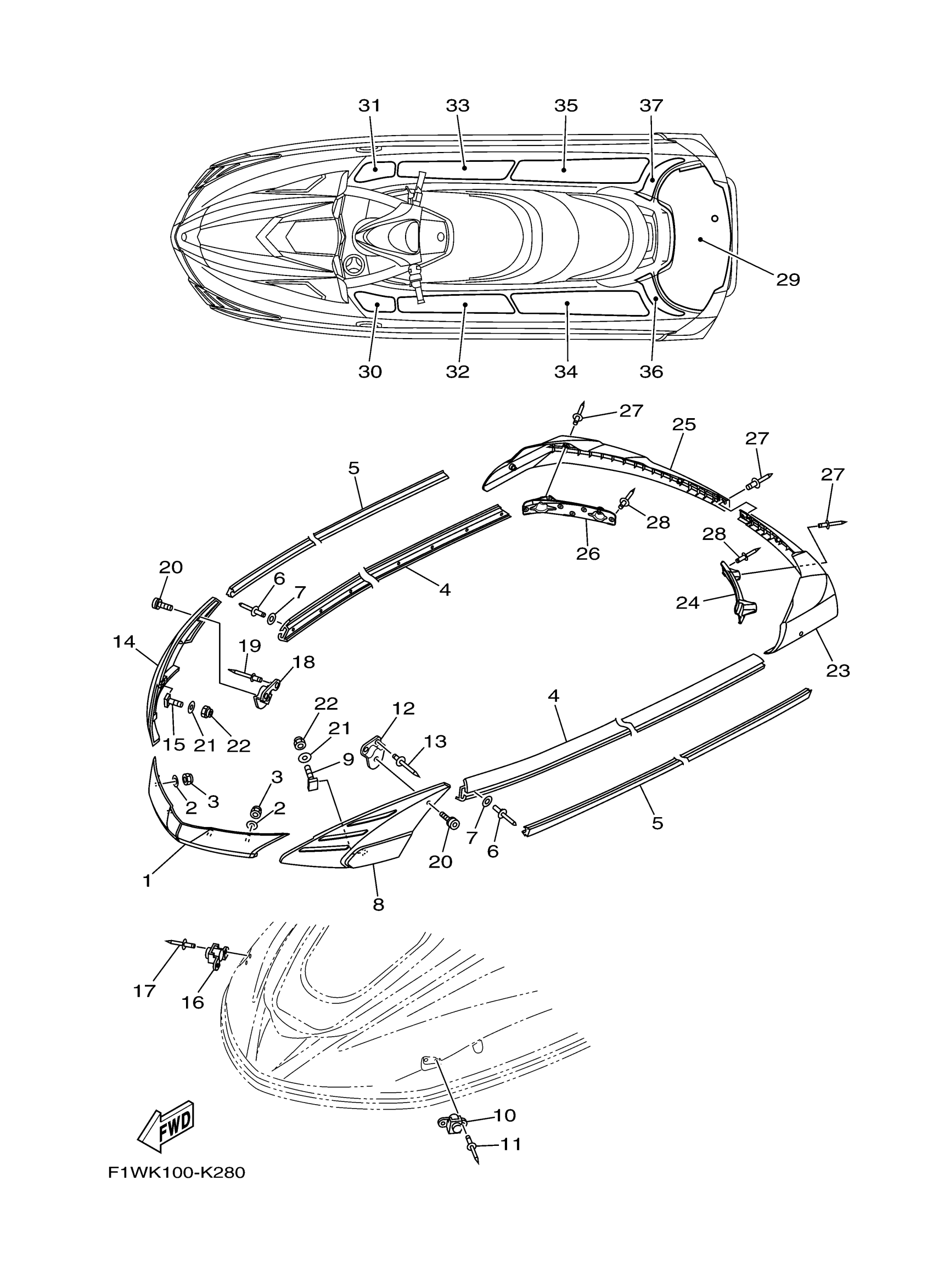

Yamaha FX1800K (FX SUPER HIGH OUTPUT) F1WN 2011 GUNWALE & MAT Diagram

#

Description
Price

1

BOW GUNWALE COMP.

F1W-U2501-11-00

Unavailable

2

WASHER

9299R-06200-00

$0.43

3

NUT, NYLON

9572R-06300-00

$2.93

4

GUNWALE, SIDE

F1B-U2512-00-00

$125.36

5

INNER,GUNWALE

F1B-U2519-10-00

$59.69

6

RIVET, BLIND

90267-489U8-00

$1.37

7

WASHER

9299R-05200-00

$4.60

8

JOINT,GUNWALE LH

F1W-U252E-11-00

$53.19

9

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

10

GROMMET ASSY

F1W-U250B-00-00

$4.46

11

RIVET, BLIND

90267-489U6-00

Unavailable

12

BRACKET

F1W-U4949-00-00

$3.21

13

RIVET, BLIND

90267-489U6-00

Unavailable

14

JOINT,GUNWALE RH

F1W-U252F-11-00

Unavailable

15

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

16

GROMMET ASSY

F1W-U250B-00-00

$4.46

17

RIVET, BLIND

90267-489U6-00

Unavailable

18

BRACKET

F1W-U4949-00-00

$3.21

19

RIVET, BLIND

90267-489U6-00

Unavailable

20

BOLT,HEX. SOCKET BUTTON

90111-06115-00

$3.03

21

WASHER

9299R-06200-00

$0.43

22

NUT, NYLON

9572R-06300-00

$2.93

23

GUNWALE, STERN 1

F1W-U251D-11-00

$73.18

24

BRACKET, GUNWALE 1

F1W-U251L-01-00

$4.63

25

GUNWALE, STERN 2

F1W-U251E-11-00

$73.18

26

BRACKET, GUNWALE 2

F1W-U251M-01-00

$4.63

27

RIVET, BLIND

90267-48825-00

$2.16

28

RIVET, BLIND

90267-489U8-00

$1.37

29

MAT, UPPER

F1W-U3581-00-00

$92.52

30

MAT, STEP 1

F1W-U351H-00-00

$6.19

31

MAT, STEP 2

F1W-U351J-00-00

$4.93

32

MAT, STEP 3

F1W-U351K-00-00

$23.87

33

MAT, STEP 4

F1W-U351M-00-00

$23.87

34

MAT, STEP 5

F1W-U351N-00-00

Unavailable

35

MAT, STEP 6

F1W-U351P-00-00

$29.09

36

MAT, STEP 7

F1W-U351R-00-00

$13.42

37

MAT, STEP 8

F1W-U351S-00-00

$11.93
