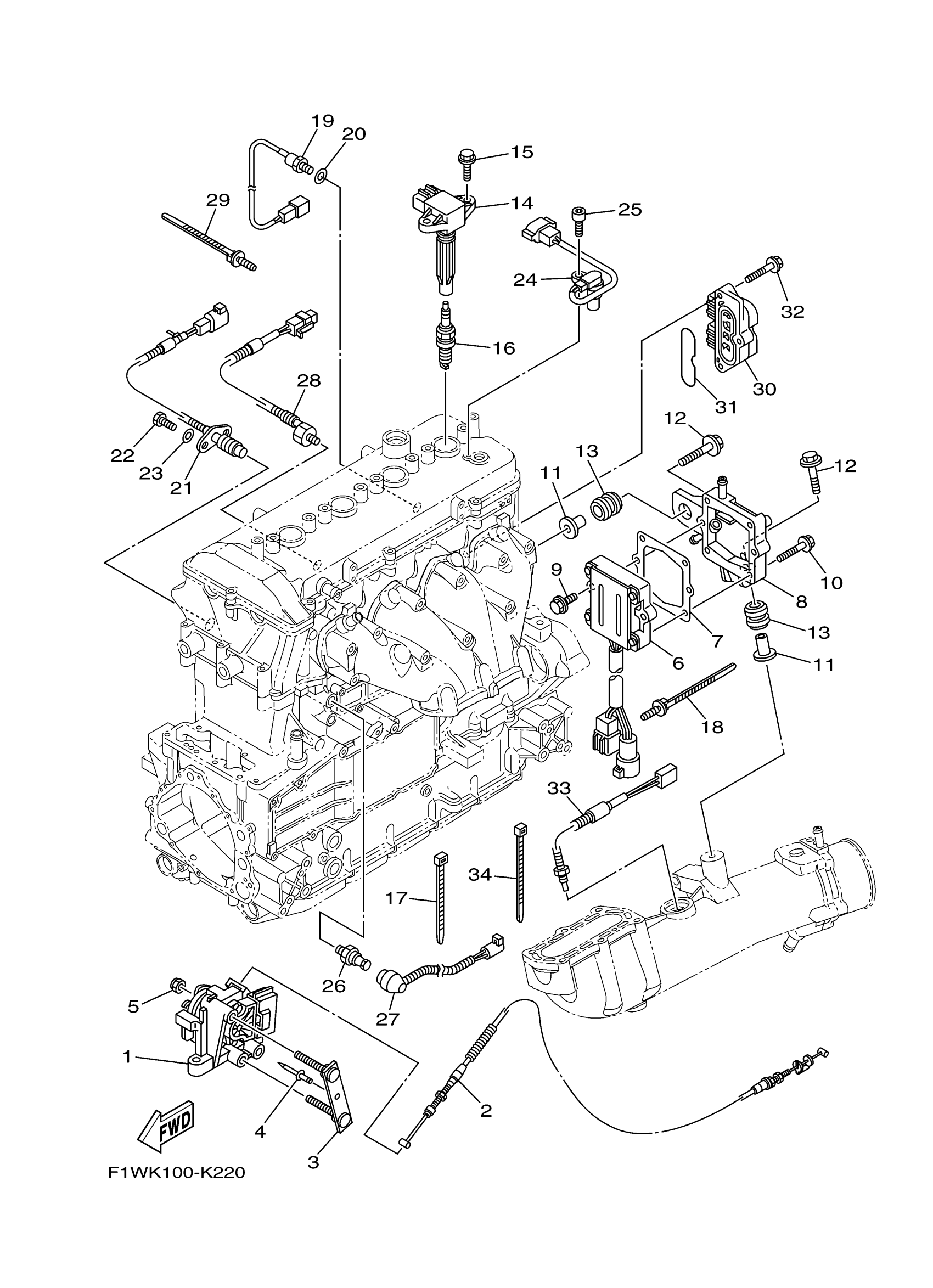

Yamaha FX1800K (FX SUPER HIGH OUTPUT) F1WN 2011 ELECTRICAL 2 Diagram
#
1
ACCEL. POSITON SENSOR ASSY
6D3-14305-21-00
Unavailable
2
CABLE, THROTTLE 1
6S5-26311-10-00
Unavailable
3
BRACKET, THROTTLE
F1W-U7254-00-00
Unavailable
4
RIVET (EU0)
90267-48938-00
Unavailable
5
NUT, NYLON (6J8)
95780-08300-00
Unavailable
6
RECTIFIER & REGULATOR ASSY
6S5-81960-01-00
Unavailable
7
PLATE, RECTIFIER FITTING
6S5-81975-00-00
Unavailable
8
COVER, RECTIFIER
6S5-81972-01-94
Unavailable
9
BOLT, WITH WASHER
90119-06MA3-00
Unavailable
10
BOLT, WITH WASHER
90119-06048-00
Unavailable
11
COLLAR
90387-08M37-00
Unavailable
12
BOLT, WITH WASHER
90119-08187-00
Unavailable
13
GROMMET
90480-22M15-00
Unavailable
14
IGNITION COIL ASSY
6S5-82310-10-00
$403.99
15
BOLT,FLANGE (EW2)
90105-06903-00
$9.49
16
PLUG, SPARK (NGK LFR6A-00)
LFR-6A000-00-00
Unavailable
17
CLAMP
90465-13M18-00
Unavailable
18
CLAMP
90464-20005-00
Unavailable
19
THERMOSENSOR ASSY
61A-85790-01-00
Unavailable
20
WASHER, PLATE
92990-10600-00
Unavailable
21
THERMO SWITCH ASSY
60E-82560-01-00
Unavailable
22
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
23
WASHER, PLAIN (646)
92990-06600-00
Unavailable
24
SENSOR, CAM POSITION
6D3-85896-01-00
Unavailable
25
BOLT,SOCKET
91380-06016-00
Unavailable
26
OIL PRESSURE SWITCH ASSY
68V-82504-00-00
Unavailable
27
LEAD WIRE ASSY
6S5-81315-01-00
Unavailable
28
SENSOR, KNOCK
6P2-85780-01-00
Unavailable
29
CLAMP
90464-20005-00
Unavailable
30
EARTH PLATE COMP.
6D3-8273J-02-00
Unavailable
31
O-RING
93210-60ME8-00
Unavailable
32
BOLT, WITH WASHER
90119-06048-00
Unavailable
33
THERMOSENSOR ASSY
6AA-85790-00-00
Unavailable
34
CLAMP
90464-20005-00
Unavailable
