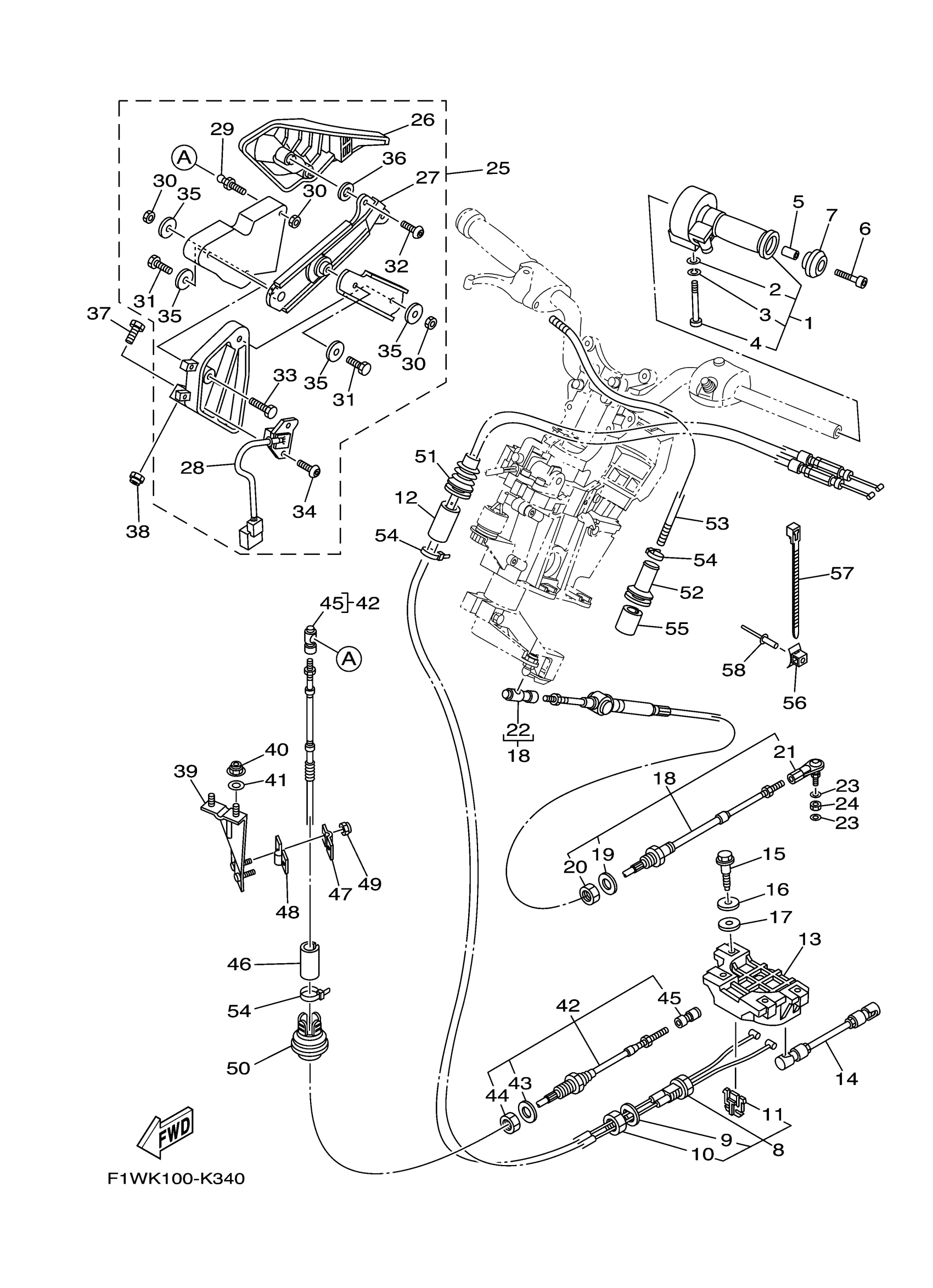

Yamaha FX1800K (FX SUPER HIGH OUTPUT) F1WN 2011 CONTROL CABLE Diagram

#

Description
Price

1

NOZZLE,CONTROL ASSY

F1W-6153A-00-00

$213.62

2

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

3

WASHER, SPRING

92995-06100-00

$2.95

4

SCREW

F1W-613C1-10-00

$10.49

5

COLLAR

90387-05800-00

$3.86

6

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

7

GRIP, END

GP7-U155F-00-00

$2.88

8

CABLE,NOZZLE CONTROL 3

F1W-6153E-01-00

$568.17

9

. PACKING C

F1W-61438-00-00

$5.00

10

NUT

F1B-6151S-01-00

$14.31

11

. GUIDE, CABLE

F1W-61557-00-00

$6.36

12

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

13

REMOCON,NOZZLE 2

F1W-6153J-01-00

Unavailable

14

ROD ASSY

F1W-6150A-00-00

$181.80

15

BOLT

90109-06233-00

$124.23

16

WASHER, PLATE

90201-099U3-00

$2.16

17

WASHER, PLATE

90202-08002-00

$2.07

18

CABLE, STEERING

F1S-61481-12-00

Unavailable

19

. PACKING C

F1B-61438-00-00

$2.72

20

NUT

F1B-6151S-01-00

$14.31

21

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

22

. BALL JOINT ASSY

F2N-61460-00-00

$48.47

23

WASHER, PLATE

90201-06906-00

$2.80

24

NUT

9538R-06700-00

$1.01

25

REMOCON. LEVER ASSY.

F1W-6134A-01-00

$799.98

26

. GRIP

F1W-62714-00-00

$66.65

27

. LEVER

F1W-62289-00-00

$193.92

28

REVERSE SENSOR ASSY

F1W-6830K-01-00

Unavailable

29

. STUD, JOINT BALL

F1X-61461-00-00

$31.80

30

NUT, SELF-LOCKING

95720-06300-00

$1.82

31

BOLT(GJ3)

97080-06014-00

$13.99

32

. SCREW

F1X-613C1-00-00

$15.89

33

. BOLT

F0D-61355-00-00

$5.45

34

SCREW

F1B-613C1-10-00

Unavailable

35

. WASHER

FJ0-61353-00-00

$15.89

36

. WASHER

F1W-6134E-00-00

$15.89

37

BOLT(JF7)

97080-06030-00

Unavailable

38

NUT, LOCK

F2N-U142L-00-00

$1.00

39

BRACKET,STOPPER CABLE

F1W-U1467-02-00

Unavailable

40

NUT, NYLON (6J8)

95780-08300-00

$10.55

41

WASHER

9299R-08200-00

Unavailable

42

CABLE,REVERSE

F1W-6149C-11-00

Unavailable

43

. PACKING C

F1B-61438-00-00

$2.72

44

NUT

F1B-6151S-01-00

$14.31

45

. BALL JOINT ASSY

F1B-61460-00-00

$50.99

46

PACKING, CABLE

F1W-U146G-00-00

$1.43

47

STOPPER, CABLE

GH1-61468-01-00

$8.32

48

HOLDER, STOPPER

GU5-6146K-10-00

$87.86

49

NUT, NYLON

9572R-06300-00

$2.80

50

GROMMET

F1W-U1519-00-00

$6.36

51

GROMMET

F0D-6822E-00-00

$18.49

52

GROMMET

GU2-6822E-01-00

$24.98

53

HOSE, WITH SPRING

90447-07001-00

Unavailable

54

BAND

90601-200U1-00

$2.77

55

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

56

BASE, CLAMP

F1W-U828M-00-00

$1.23

57

CLAMP

90464-32801-00

$1.23

58

RIVET, BLIND

90267-48802-00

$1.98
