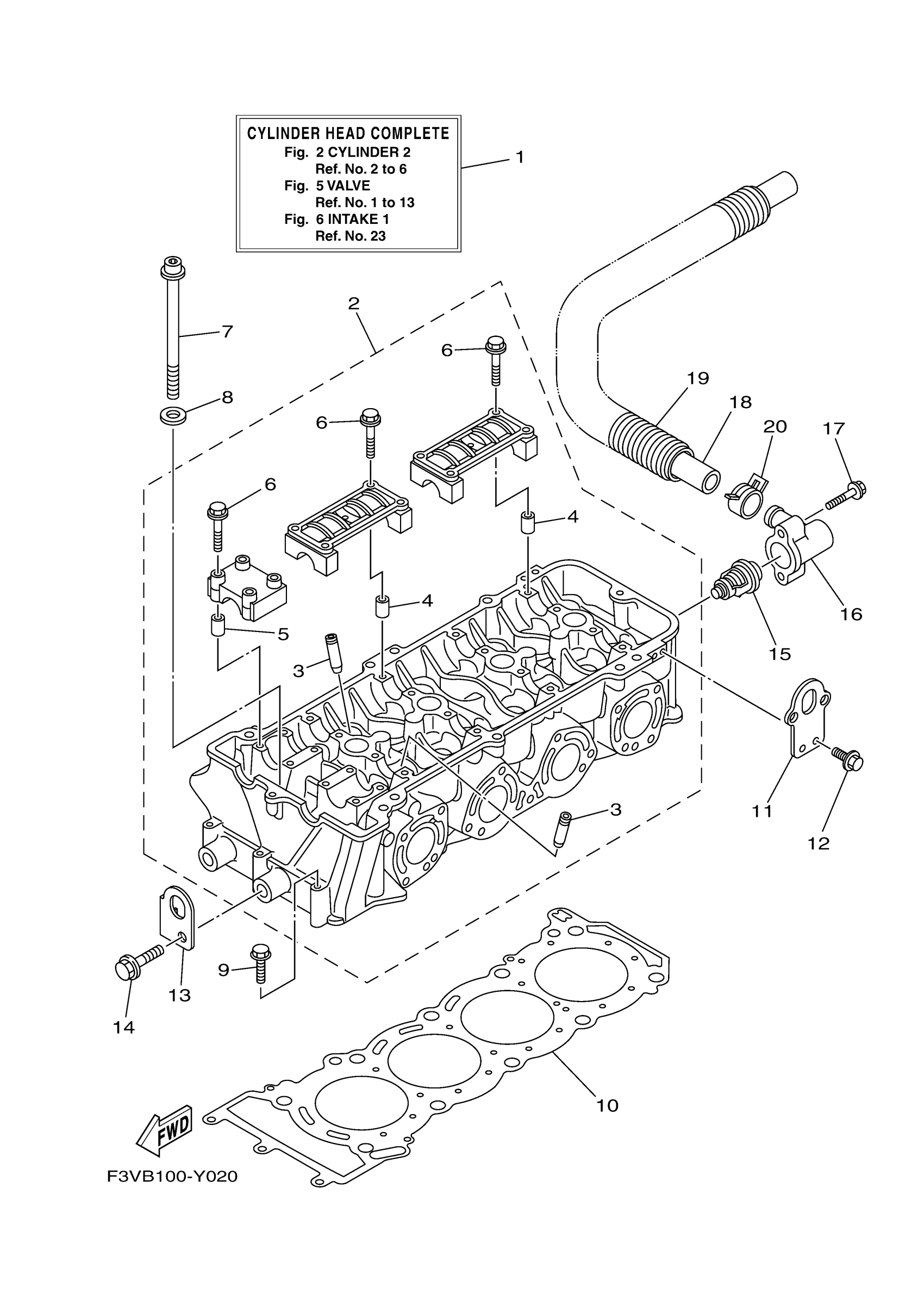

Yamaha FX1800JY (FX HO WITH AUDIO_FX HO) F3VD 2023 CYLINDER 2 Diagram

#

Description
Price

1

CYLINDER HEAD COMPLETE

6BH-W009A-20-94

$5,173.12

2

CYLINDER HEAD ASSY

6BH-11102-20-00

$861.34

3

. GUIDE, VALVE 1

6S5-11133-10-00

$44.45

4

. PIN, DOWEL

91809-16002-00

$2.16

5

. PIN, DOWEL

91809-16002-00

$2.16

6

. BOLT, FLANGE

90105-07009-00

$3.03

7

BOLT

6S5-12228-01-00

$18.66

8

WASHER

6HL-12456-00-00

$2.16

9

BOLT, WITH WASHER

97513-06555-00

$2.80

10

GASKET, CYLINDER HEAD 1

6JC-11181-00-00

$119.63

11

HANGER, ENGINE 2

6BH-1111E-00-00

$23.12

12

BOLT, WITH WASHER

90119-06078-00

$2.24

13

HANGER, ENGINE

6BH-11119-00-00

$23.12

14

BOLT, WITH WASHER

97513-10525-00

$2.80

15

THERMOSTAT

6D3-12411-00-00

$95.37

16

COVER, THERMOSTAT

6BH-12413-00-00

$37.32

17

BOLT, FLANGE

90105-06035-00

$2.16

18

HOSE 3

6S5-12578-00-00

$61.18

19

TUBE (L850)

90447-28008-00

$18.49

20

CLIP

90467-240A0-00

$6.72
