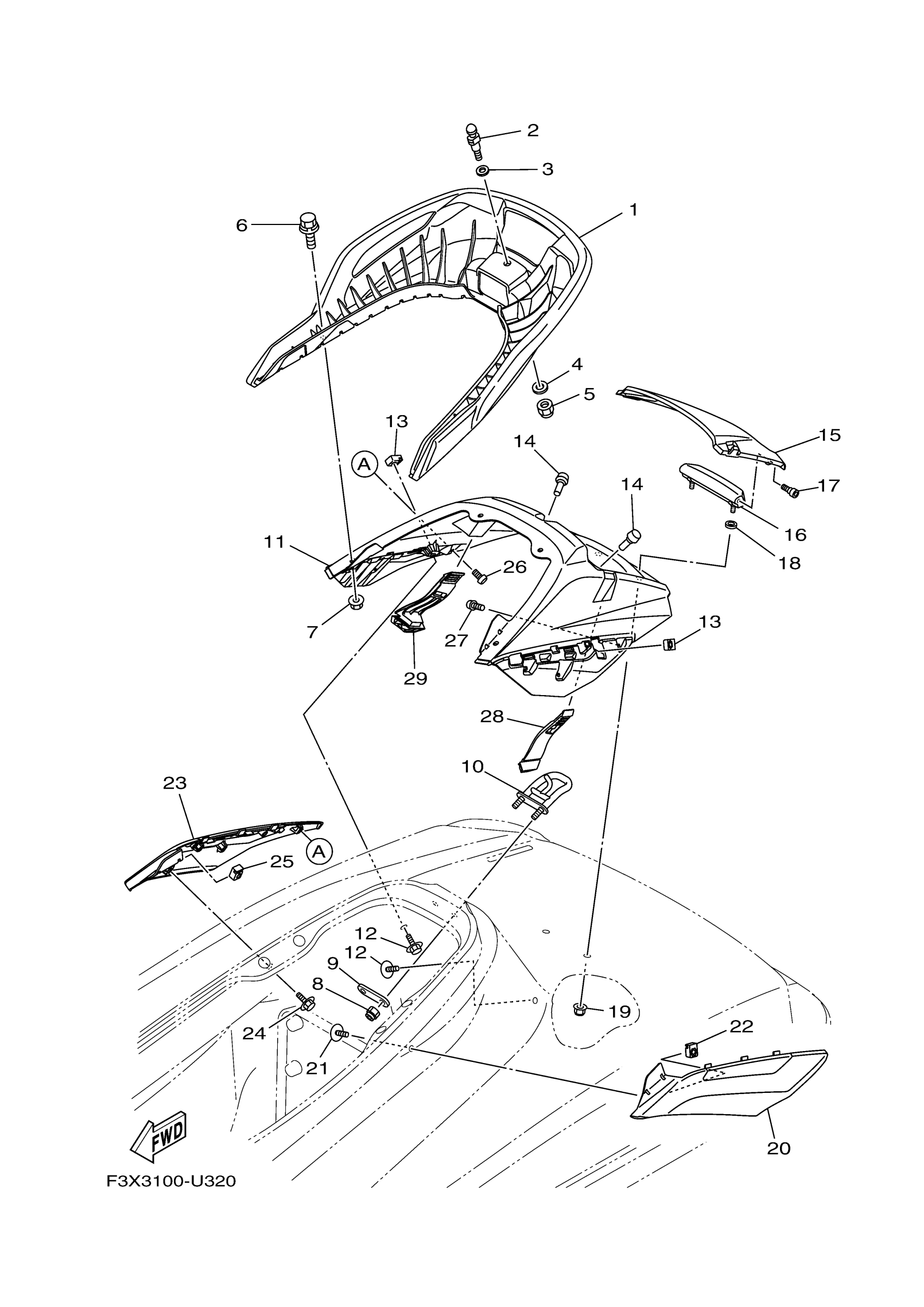

Yamaha FX1800JX (FX HO WITH AUDIO_FX HO) F3VA 2022 SEAT & UNDER LOCKER 2 Diagram

#

Description
Price

1

GRIP, HAND

F3X-U271B-00-00

$114.85

2

PIN

GH1-U3774-00-00

$19.38

3

WASHER, PLATE

90201-109U6-00

$3.29

4

WASHER

9299R-10200-00

$1.63

5

NUT, NYLON

9572R-10300-00

$3.37

6

BOLT, WITH WASHER

90119-08829-00

$3.88

7

NUT, LOCK

F3Y-U142L-00-00

$2.52

8

NUT, NYLON (6J8)

95780-08300-00

$10.55

9

PLATE A

GP7-U4953-10-00

$3.52

10

SKI TOWS

F3J-U1629-00-00

$33.32

11

STORAGE, STERN (DNMC)

F3X-U89A1-00-P2

$218.17

12

BOLT

F3X-U13B4-00-00

$1.01

13

NUT

F3X-U517E-00-00

$1.23

14

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

15

LID LOCKER STERN (DNMC)

F3X-U518M-01-P2

$18.17

16

GRIP, LOWER

F2S-U271F-01-00

$20.81

17

BOLT

F2S-U2624-00-00

$1.87

18

PACKING

F2S-U2284-01-00

Unavailable

19

NUT, LOCK

F3Y-U142L-00-00

$2.52

20

STERN COVER ASSY 1

F3X-U890M-A0-00

$65.14

21

BOLT

F3X-U13B4-00-00

$1.01

22

NUT

F3X-U517E-00-00

$1.23

23

STERN COVER ASSY 2

F3X-U890N-A0-00

$65.14

24

BOLT

F3X-U13B4-00-00

$1.01

25

NUT

F3X-U517E-00-00

$1.23

26

SCREW

F2S-U13C1-00-00

$2.36

27

SCREW

F2S-U13C1-00-00

$2.36

28

LOCK 1

F3X-U264L-01-00

$9.08

29

LOCK 1

F3X-U264L-11-00

$9.08
