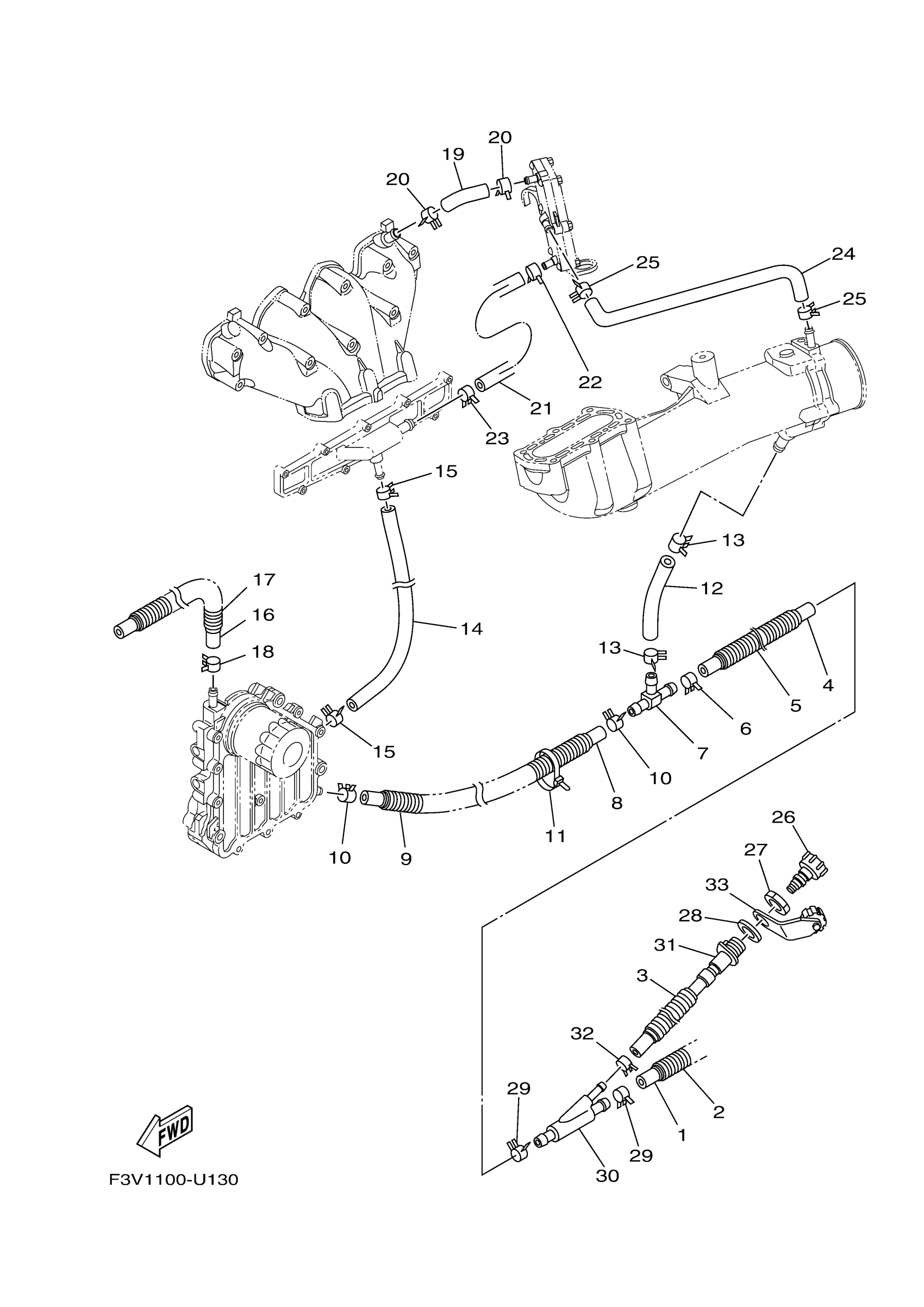

Yamaha FX1800JX (FX HO WITH AUDIO_FX HO) F3VA 2022 EXHAUST 2 Diagram
#
1
HOSE
F3X-U1273-00-00
Unavailable
2
TUBE
F2T-U773D-20-00
Unavailable
3
TUBE (L485)
90447-19801-00
Unavailable
4
HOSE 2
6S5-1243E-01-00
Unavailable
5
TUBE
F2T-U773D-00-00
Unavailable
6
CLIP
90467-200A3-00
Unavailable
7
JOINT, HOSE 3
6BH-12584-00-00
Unavailable
8
HOSE (L400)
90445-18012-00
Unavailable
9
TUBE (L260)
90447-19005-00
Unavailable
10
CLIP
90467-160A0-00
Unavailable
11
CLAMP(3XW)
90464-35132-00
$9.49
12
HOSE 6
6S5-12589-01-00
Unavailable
13
CLIP
90467-200A3-00
Unavailable
14
HOSE 5
6BH-1244H-00-00
Unavailable
15
CLIP
90467-141A3-00
$5.99
16
HOSE 5
6CS-12588-00-00
Unavailable
17
TUBE (L760)
90447-19018-00
Unavailable
18
CLIP
90467-160A0-00
Unavailable
19
HOSE 2
6ET-12577-00-00
Unavailable
20
CLIP
90467-160A0-00
Unavailable
21
HOSE 4
6ET-12579-00-00
Unavailable
22
CLIP
90467-160A0-00
Unavailable
23
CLIP
90467-170A5-00
Unavailable
24
HOSE 1
6ET-12576-01-00
Unavailable
25
CLIP
90467-160A0-00
Unavailable
26
CONDUCTION ASSY (US)
67X-E2590-00-00
Unavailable
27
NUT
EU0-61652-00-00
Unavailable
28
PACKING
F2S-U7525-01-00
Unavailable
29
CLIP
90467-200A3-00
Unavailable
30
JOINT, HOSE 1
60E-12581-00-00
Unavailable
31
JOINT ASSY
64T-12580-00-00
Unavailable
32
CLIP
90467-150A5-00
Unavailable
33
CAP,1
6EY-84385-00-00
Unavailable
