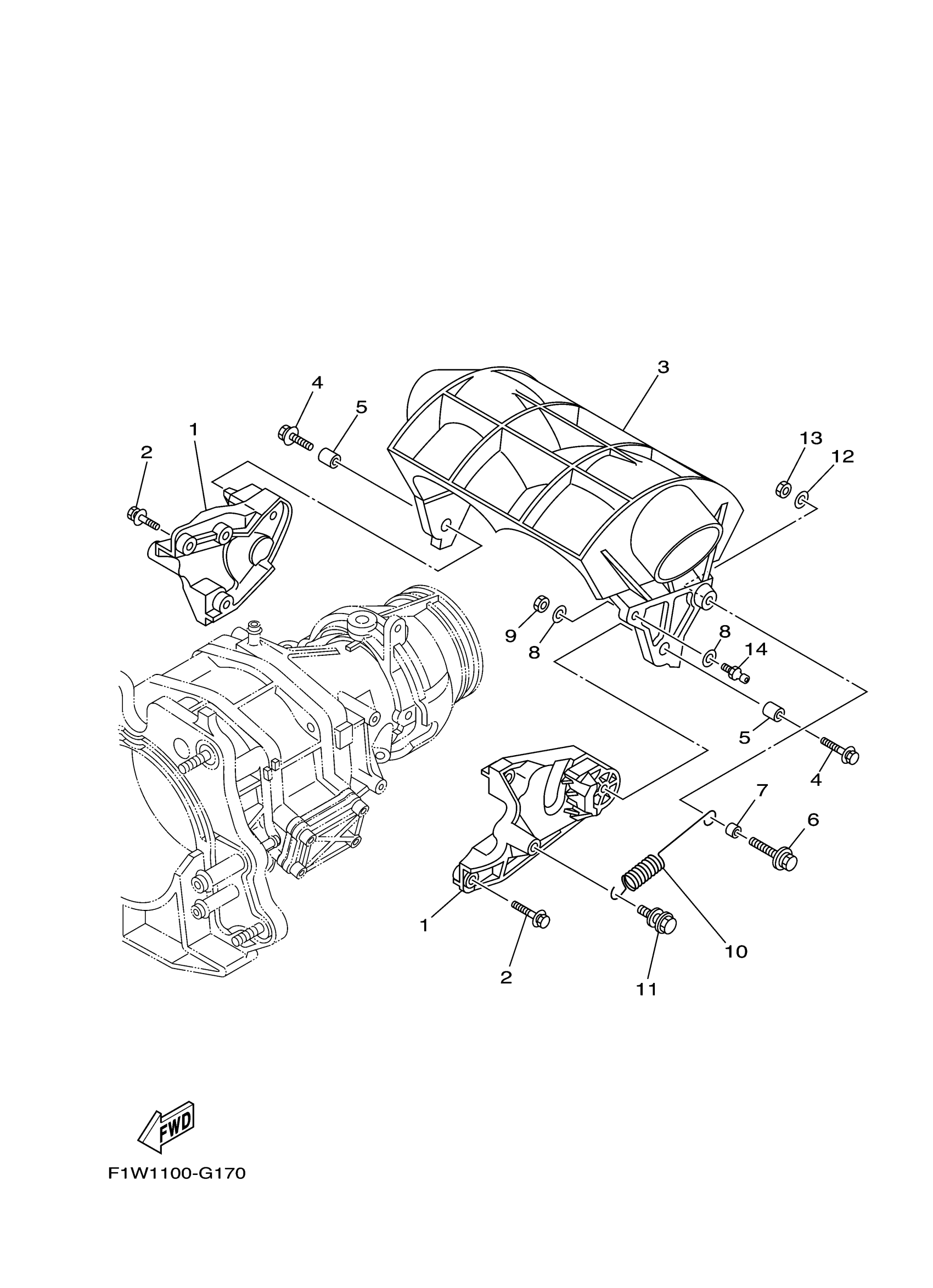

Yamaha FX1800J (FX SUPER HIGH OUTPUT) F1WG 2010 JET UNIT 3 Diagram

#

Description

Price

1

BRACKET 1

6S5-51341-00-94

Unavailable

2

BOLT, WITH WASHER

90119-06892-00

Unavailable

3

GATE, REVERSE

6S5-R1314-02-00

Unavailable

4

BOLT, WITH WASHER

90119-08841-00

Unavailable

5

COLLAR

90387-08M30-00

Unavailable

6

BOLT, WITH WASHER

90119-069UX-00

Unavailable

7

COLLAR(6R8)

90387-06M30-00

Unavailable

8

WASHER, PLATE

90201-06020-00

$9.49

9

NUT

9538R-06600-00

Unavailable

10

SPRING, RETAINER

6S5-R2358-00-00

Unavailable

11

BOLT, FLANGE W/WASHER

6S5-45241-A0-00

Unavailable

12

WASHER, PLATE

90201-06020-00

$9.49

13

NUT

9538R-06600-00

Unavailable

14

SHAFT, JOINT BALL

EU0-U1461-10-00

Unavailable
