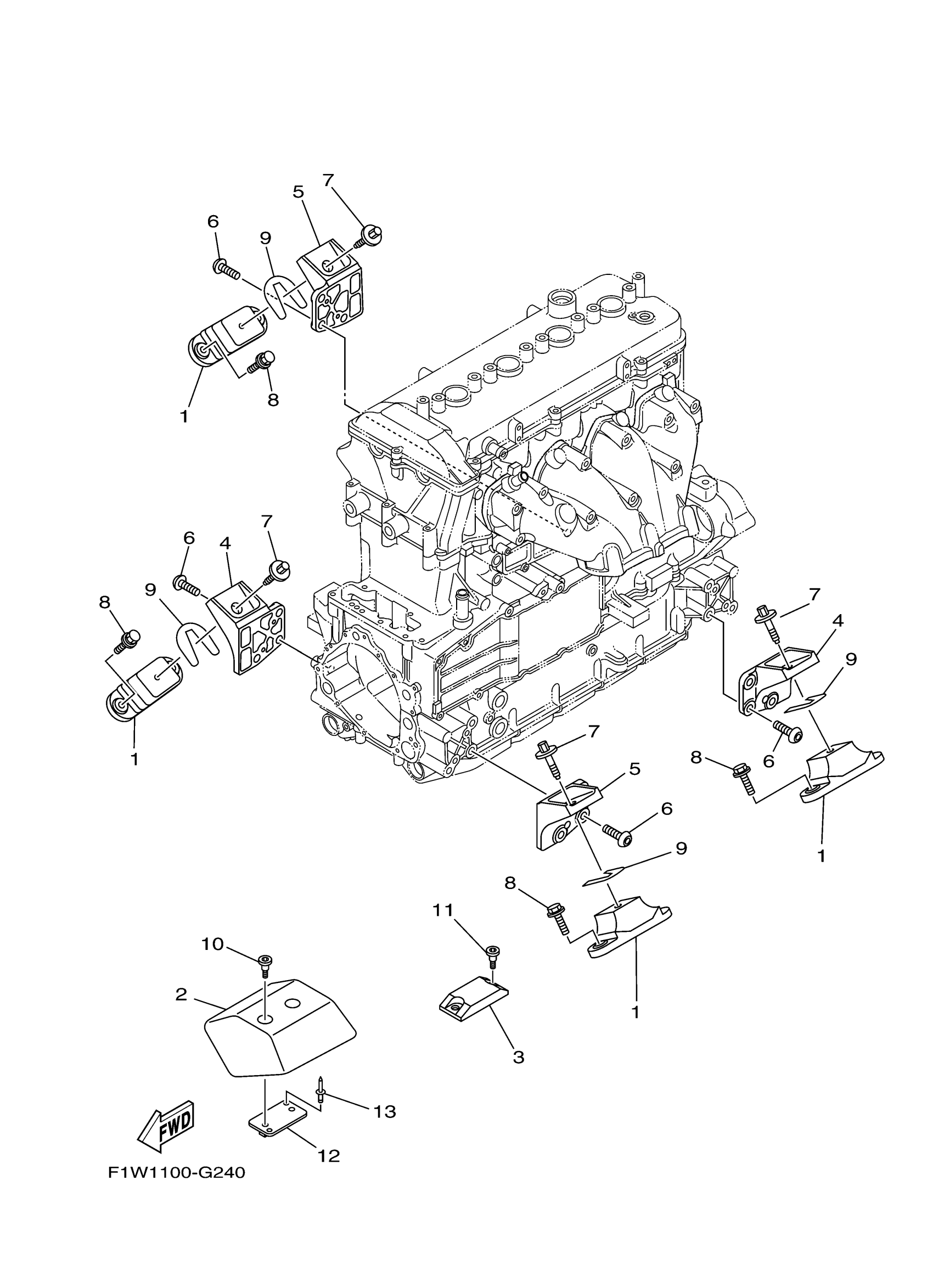

Yamaha FX1800J (FX SUPER HIGH OUTPUT) F1WG 2010 ENGINE MOUNT Diagram

#

Description
Price

1

MOUNT RUBBER

67X-44517-10-00

$96.21

2

STOPPER, UPPER MOUNT

6BH-G4532-00-00

$41.78

3

STOPPER, LOWER MOUNT RUBBER

6BH-G4574-00-00

$11.18

4

BRACKET 1

6S5-41661-00-94

$185.06

5

BRACKET 2

6S5-41662-00-94

$185.06

6

SCREW

90149-10052-00

$6.46

7

BOLT, WITH WASHER

90119-08860-00

$4.09

8

BOLT, WITH WASHER

90119-08829-00

$4.09

9

SHIM (T=0.1)

EU0-67354-A0-00

$4.31

9

SHIM (T=0.3)

EU0-67354-B0-00

$5.17

9

SHIM (T=0.5)

EU0-67354-C0-00

$4.31

9

SHIM (T=1.0)

EU0-67354-D0-00

$3.88

9

SHIM (T=2.0)

EU0-67354-E0-00

$3.88

10

BOLT

90109-06874-00

$3.13

11

BOLT

90109-06875-00

$3.28

12

PLATE

F1W-U732B-00-00

Unavailable

13

RIVET, BLIND

90267-489U2-00

$1.51
