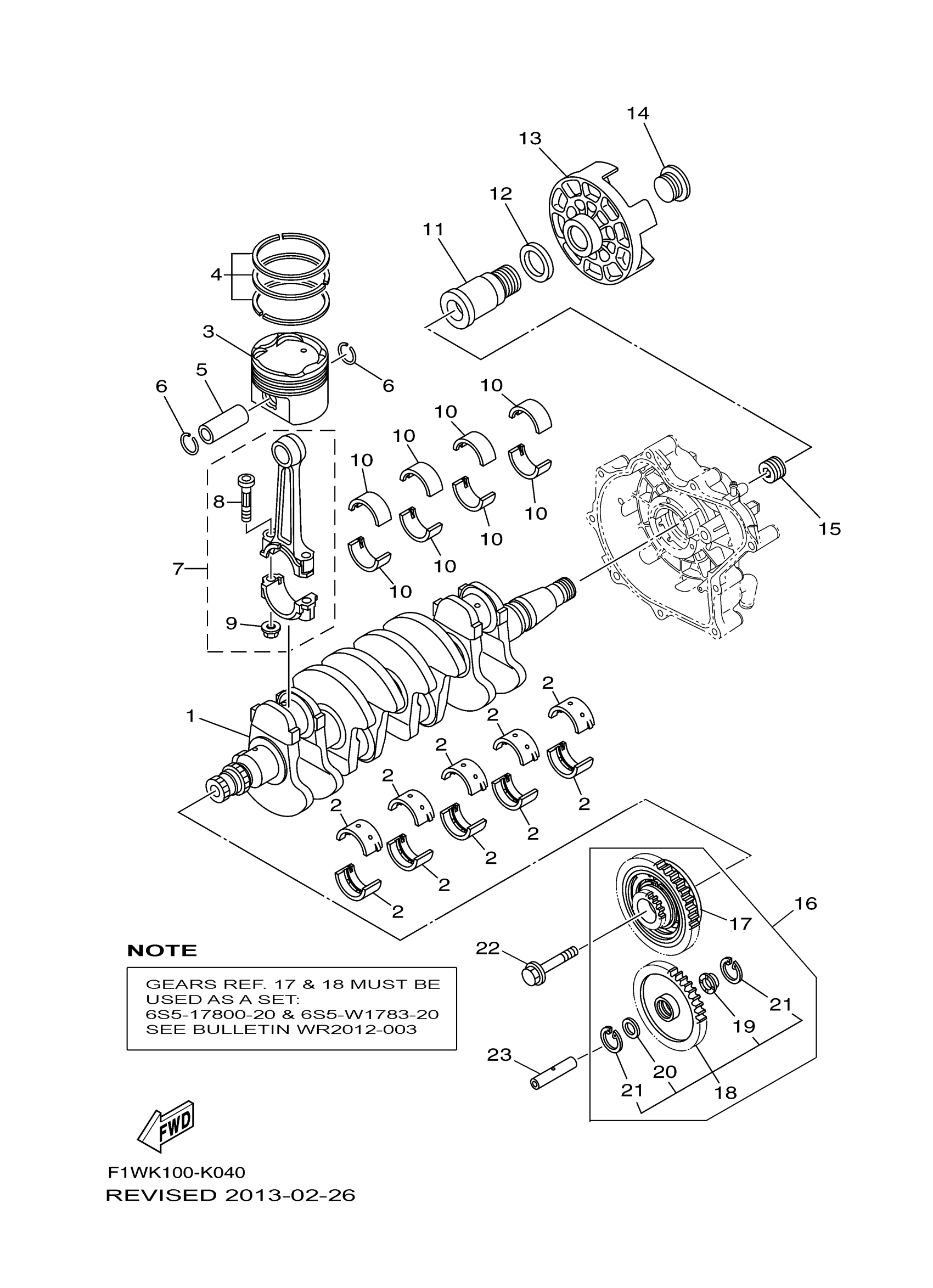

Yamaha FX1800J (FX SUPER HIGH OUTPUT) F1WG 2010 CRANKSHAFT & PISTON Diagram

#

Description
Price

1

CRANKSHAFT

6S5-11411-01-00

Unavailable

2

PLANE BEARING, CRANKSHAFT 1

6S5-11416-00-00

$14.81

2

PLANE BEARING, CRANKSHAFT 1

6S5-11416-10-00

$14.81

2

PLANE BEARING, CRANKSHAFT 1

6S5-11416-20-00

$19.68

2

PLANE BEARING, CRANKSHAFT 1

6S5-11416-30-00

$13.70

2

PLANE BEARING, CRANKSHAFT 1

6S5-11416-40-00

$13.70

3

PISTON (STD)

6ET-11631-01-B0

$130.25

4

PISTON RING SET (STD)

6S5-11603-01-00

$55.57

5

PIN, PISTON

6S5-11633-00-00

$22.98

6

CIRCLIP 256116340000

93450-24028-00

$3.90

7

CONNECTING ROD ASSY

6S5-11650-00-00

$203.02

8

. BOLT, CONNECTING ROD

6S5-11654-00-00

$6.82

9

NUT (11H)

90179-09379-00

$7.03

10

PLANE BEARING, CONNECTING ROD

6S5-11656-00-00

$11.48

10

PLANE BEARING, CONNECTING ROD

6S5-11656-10-00

$11.48

10

PLANE BEARING, CONNECTING ROD

6S5-11656-20-00

$11.48

10

PLANE BEARING, CONNECTING ROD

6S5-11656-30-00

$11.48

11

SHAFT, TRANSFER

6S5-17572-01-00

$252.88

12

WASHER

6S5-12289-00-00

$24.13

13

FLANGE, COUPLING

6S5-45813-01-00

Unavailable

14

HOLDER 2

6S5-17525-01-00

$76.99

15

NUT, SPECIAL

6S5-11459-01-00

$37.49

16

GEAR UNIT & DRIVE GEAR SET

99999-04107-00

$833.32

17

. GEAR UNIT ASSY (57T)

6S5-17800-20-00

$484.98

18

. DRIVE GEAR & COLLAR SET (18T)

6S5-W1783-20-00

$384.20

19

. WASHER, THRUST

6S5-17529-00-00

$14.38

20

WASHER, PLATE

90201-13013-00

Unavailable

21

. CIRCLIP

99009-24700-00

$1.36

22

BOLT

6S5-17031-00-00

$34.75

23

SHAFT, MIDDLE DRIVEN

6S5-17553-00-00

$31.80
