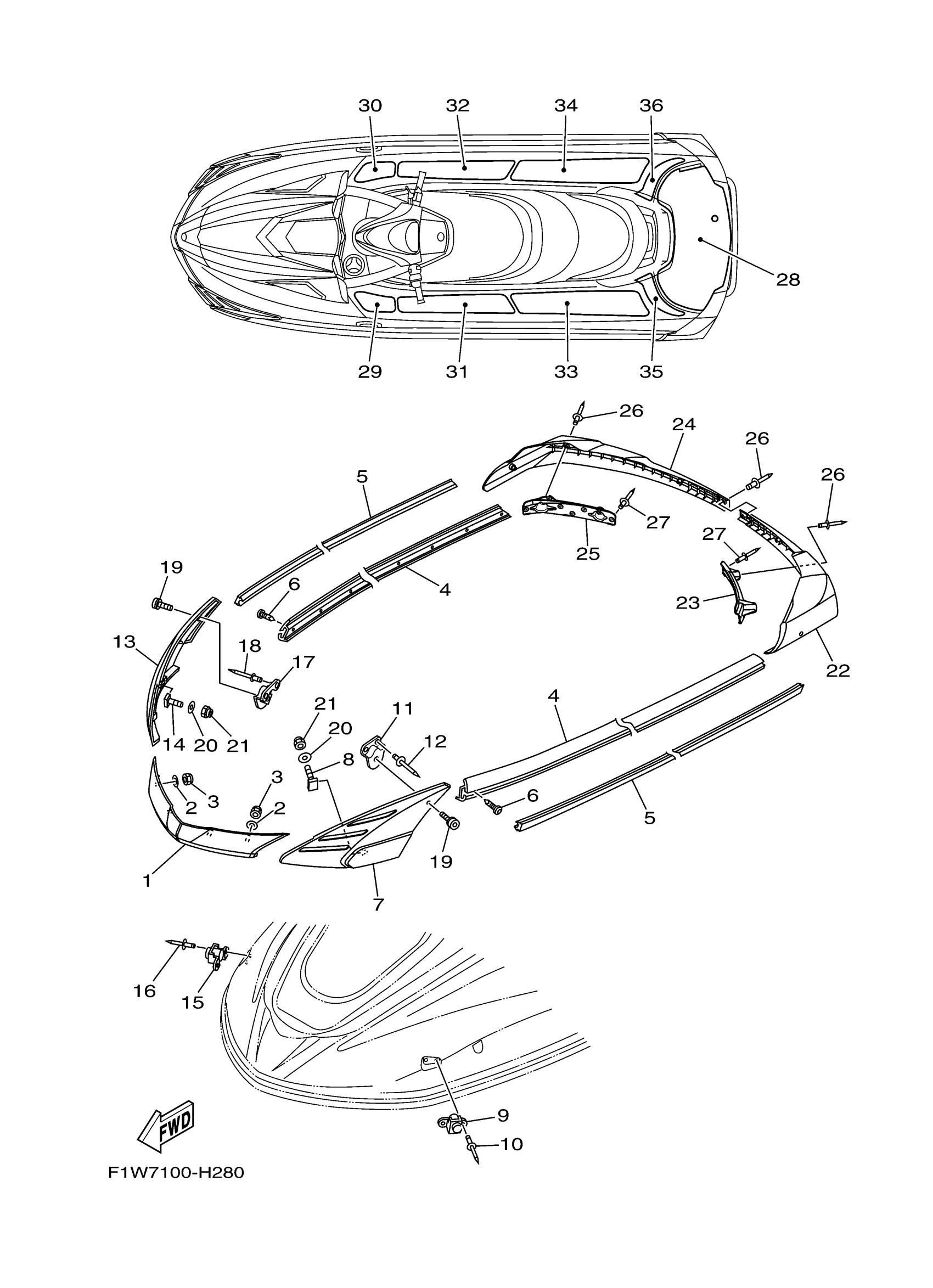

Yamaha FX1800HK (WAVERUNNER FX SHO) FIWA0 2009 GUNWALE MAT Diagram
#
1
BOW GUNWALE COMP.
F1W-U2501-11-00
Unavailable
2
WASHER
9299R-06200-00
Unavailable
3
NUT, NYLON
9572R-06300-00
Unavailable
4
GUNWALE, SIDE
F1B-U2512-00-00
Unavailable
5
INNER,GUNWALE
F1B-U2519-10-00
Unavailable
6
SCREW,TAPPING
90169-059U1-00
Unavailable
7
JOINT,GUNWALE LH
F1W-U252E-11-00
Unavailable
8
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
9
GROMMET ASSY
F1W-U250B-00-00
Unavailable
10
RIVET, BLIND
90267-489U6-00
Unavailable
11
BRACKET
F1W-U4949-00-00
Unavailable
12
RIVET, BLIND
90267-489U6-00
Unavailable
13
JOINT,GUNWALE RH
F1W-U252F-11-00
Unavailable
14
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
15
GROMMET ASSY
F1W-U250B-00-00
Unavailable
16
RIVET, BLIND
90267-489U6-00
Unavailable
17
BRACKET
F1W-U4949-00-00
Unavailable
18
RIVET, BLIND
90267-489U6-00
Unavailable
19
BOLT,HEX. SOCKET BUTTON
90111-06115-00
Unavailable
20
WASHER
9299R-06200-00
Unavailable
21
NUT, NYLON
9572R-06300-00
Unavailable
22
GUNWALE, STERN 1
F1W-U251D-11-00
Unavailable
23
BRACKET, GUNWALE 1
F1W-U251L-01-00
Unavailable
24
GUNWALE, STERN 2
F1W-U251E-11-00
Unavailable
25
BRACKET, GUNWALE 2
F1W-U251M-01-00
Unavailable
26
RIVET, BLIND
90267-48825-00
Unavailable
27
RIVET, BLIND
90267-489U8-00
Unavailable
28
MAT, UPPER
F1W-U3581-00-00
Unavailable
29
MAT, STEP 1
F1W-U351H-00-00
Unavailable
30
MAT, STEP 2
F1W-U351J-00-00
Unavailable
31
MAT, STEP 3
F1W-U351K-00-00
Unavailable
32
MAT, STEP 4
F1W-U351M-00-00
Unavailable
33
MAT, STEP 5
F1W-U351N-00-00
Unavailable
34
MAT, STEP 6
F1W-U351P-00-00
Unavailable
35
MAT, STEP 7
F1W-U351R-00-00
Unavailable
36
MAT, STEP 8
F1W-U351S-00-00
Unavailable
