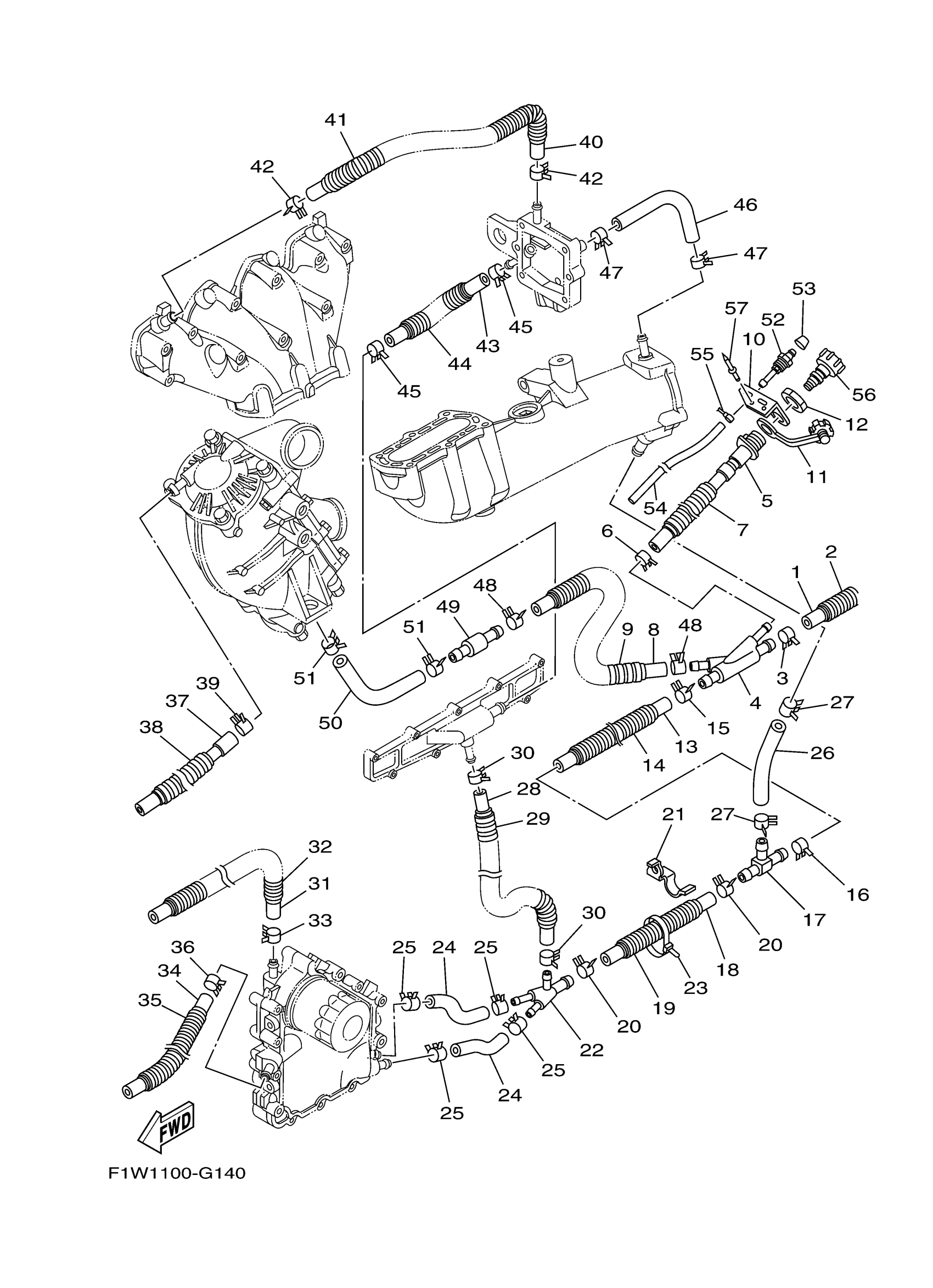

Yamaha FX1800HK (WAVERUNNER FX SHO) FIWA0 2009 EXHAUST 2 Diagram
#
1
HOSE (L250)
90445-21806-00
Unavailable
2
TUBE
F2T-U773D-20-00
Unavailable
3
CLIP
90467-200A0-00
Unavailable
4
JOINT, HOSE 1
6CS-12581-00-00
Unavailable
5
JOINT ASSY
63M-12580-00-00
Unavailable
6
CLIP
90467-150A0-00
Unavailable
7
TUBE (L485)
90447-19801-00
Unavailable
8
HOSE (L970)
90445-21807-00
Unavailable
9
TUBE (L850)
90447-22802-00
Unavailable
10
STAY
6S5-12443-00-00
Unavailable
11
CAP,1
682-84385-01-00
Unavailable
12
NUT
EU0-61652-00-00
Unavailable
13
HOSE 2
6S5-1243E-01-00
Unavailable
14
TUBE
F2T-U773D-00-00
Unavailable
15
CLIP
90467-200A0-00
Unavailable
16
CLIP
90467-200A0-00
Unavailable
17
JOINT, HOSE 3
6S5-12584-00-00
Unavailable
18
HOSE,3
6S5-1243F-00-00
Unavailable
19
TUBE(L140)
90447-22013-00
Unavailable
20
CLIP
90467-200A0-00
Unavailable
21
CLAMP
90462-10044-00
Unavailable
22
JOINT, HOSE 2
6S5-12582-00-00
Unavailable
23
CLAMP(3XW)
90464-35132-00
Unavailable
24
HOSE 6
6S5-1244J-00-00
Unavailable
25
CLIP
90467-160A0-00
Unavailable
26
HOSE 6
6S5-12589-01-00
Unavailable
27
CLIP
90467-200A0-00
Unavailable
28
HOSE 5
6S5-1244H-00-00
Unavailable
29
TUBE (L150)
90447-19011-00
Unavailable
30
. CLIP
90467-150A1-00
Unavailable
31
HOSE 5
6S5-12588-00-00
Unavailable
32
HOSE, WITH SPRING (L=630)
90447-19006-00
Unavailable
33
CLIP
90467-160A0-00
Unavailable
34
HOSE
6S5-14987-00-00
Unavailable
35
HOSE, WITH SPRING (L=630)
90447-19006-00
Unavailable
36
CLIP
90467-160A0-00
Unavailable
37
HOSE 8
6S5-12552-00-00
Unavailable
38
HOSE (L420)
90446-24M89-00
Unavailable
39
CLIP
90467-170A0-00
Unavailable
40
HOSE 2
6S5-12577-00-00
Unavailable
41
HOSE(63M)
90446-27M55-00
Unavailable
42
CLIP
90467-160A0-00
Unavailable
43
HOSE 4
6S5-12579-00-00
Unavailable
44
TUBE (L150)
90447-19011-00
Unavailable
45
CLIP
90467-160A0-00
Unavailable
46
HOSE, 4
6S5-1244G-00-00
Unavailable
47
CLIP
90467-160A0-00
Unavailable
48
CLIP
90467-200A0-00
Unavailable
49
JOINT, HOSE 4
6S5-12594-00-00
Unavailable
50
HOSE 1
6S5-12576-01-00
Unavailable
51
CLIP
90467-200A0-00
Unavailable
52
NIPPLE, GREASE
61L-5169A-00-00
Unavailable
53
CAP, GREASE NIPPLE
663-45119-01-00
Unavailable
54
HOSE (L445)
90445-09M21-00
Unavailable
55
CLAMP
90465-10098-00
Unavailable
56
CONDUCTION ASSY (US)
67X-E2590-00-00
Unavailable
57
RIVET (EU0)
90267-48938-00
Unavailable
