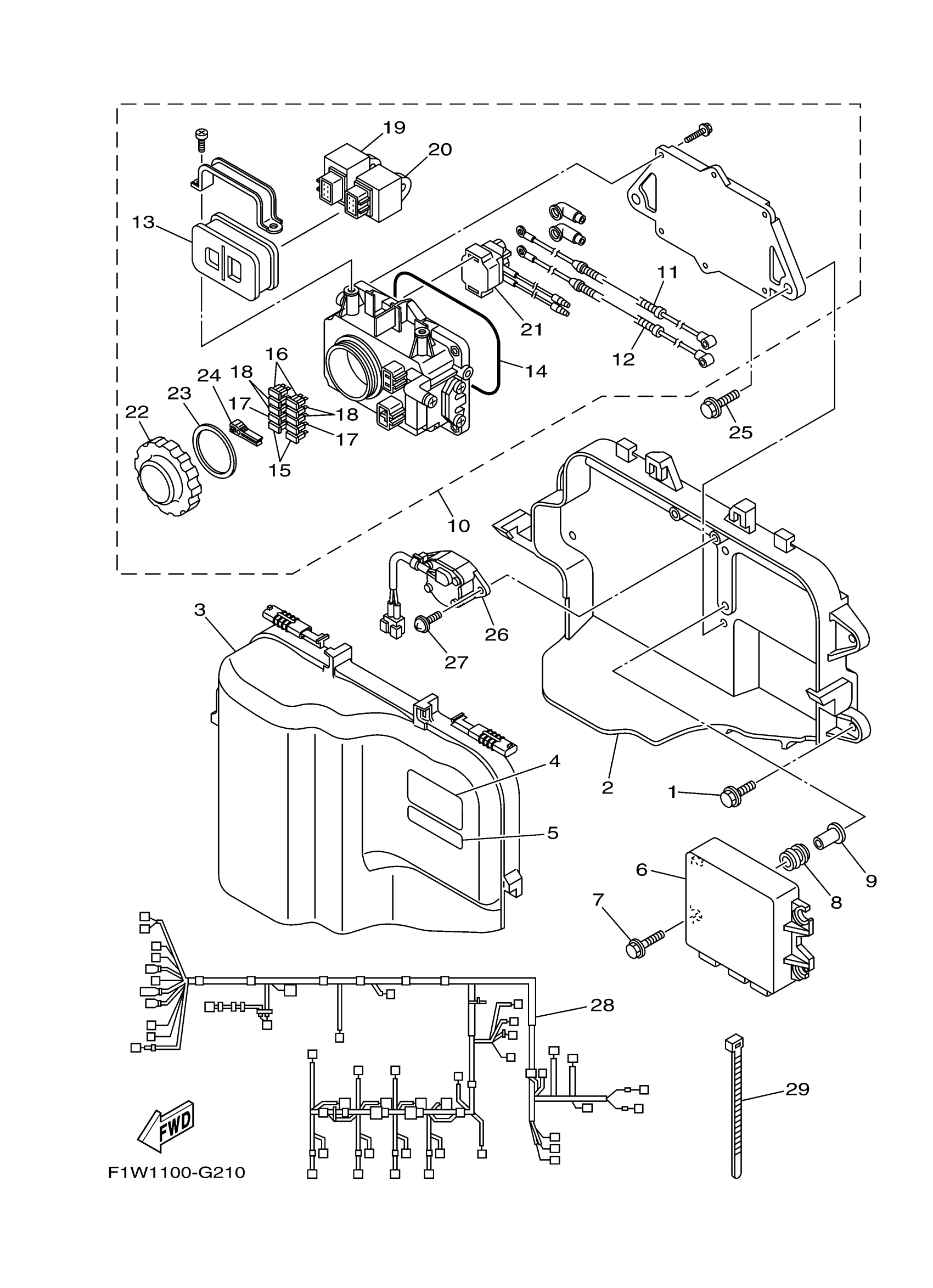

Yamaha FX1800HK (WAVERUNNER FX SHO) FIWA0 2009 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-089UT-00

$3.29

2

PLATE

6S5-81845-00-00

Unavailable

3

COVER

6S5-81942-11-00

Unavailable

4

MARK 3

6B6-83623-00-00

$5.82

5

LABEL, CAUTION 7

60E-83627-00-00

$4.48

6

ENGINE CONTROL UNIT ASSY

6S5-8591A-01-00

$1,498.49

7

BOLT, WITH WASHER

90119-06311-00

$1.72

8

DAMPER, IGNITION C

6A0-82317-01-00

$6.68

9

. COLLAR

90387-06119-00

$4.60

10

FUSE BOX ASSY

6S5-82170-00-00

$671.63

11

. WIRE, PLUS LEAD

6S5-82115-00-00

Unavailable

12

. WIRE, LEAD

6S5-82117-00-00

$101.48

13

. DAMPER

6D3-82157-00-00

$33.99

14

. GASKET, TERMINAL

6D3-81921-00-00

$14.16

15

FUSE

5JJ-82151-20-00

$5.98

16

FUSE

5JJ-82151-60-00

Unavailable

17

. FUSE (3A)

67F-82151-30-00

$4.69

18

. FUSE (10A)

67F-82151-40-00

$6.40

19

RELAY ASSY

60E-81950-00-00

$137.17

20

. RELAY ASSY

68V-81950-00-00

$117.03

21

. STARTER RELAY ASSY

6B6-81940-00-00

$99.55

22

. CAP

66V-8132W-00-00

$15.66

23

. GASKET

66V-81844-00-00

$8.94

24

. PULLER, FUSE

67F-2812A-00-00

$4.55

25

BOLT, WITH WASHER

90119-08123-00

Unavailable

26

SWITCH ASSY

6S5-8259E-00-00

$162.67

27

SCREW, TAPPING

97780-60520-00

$3.88

28

WIRE HARNESS ASSY 1

6S5-8259L-03-00

$1,758.19

29

CLAMP

90465-14M66-00

Unavailable
