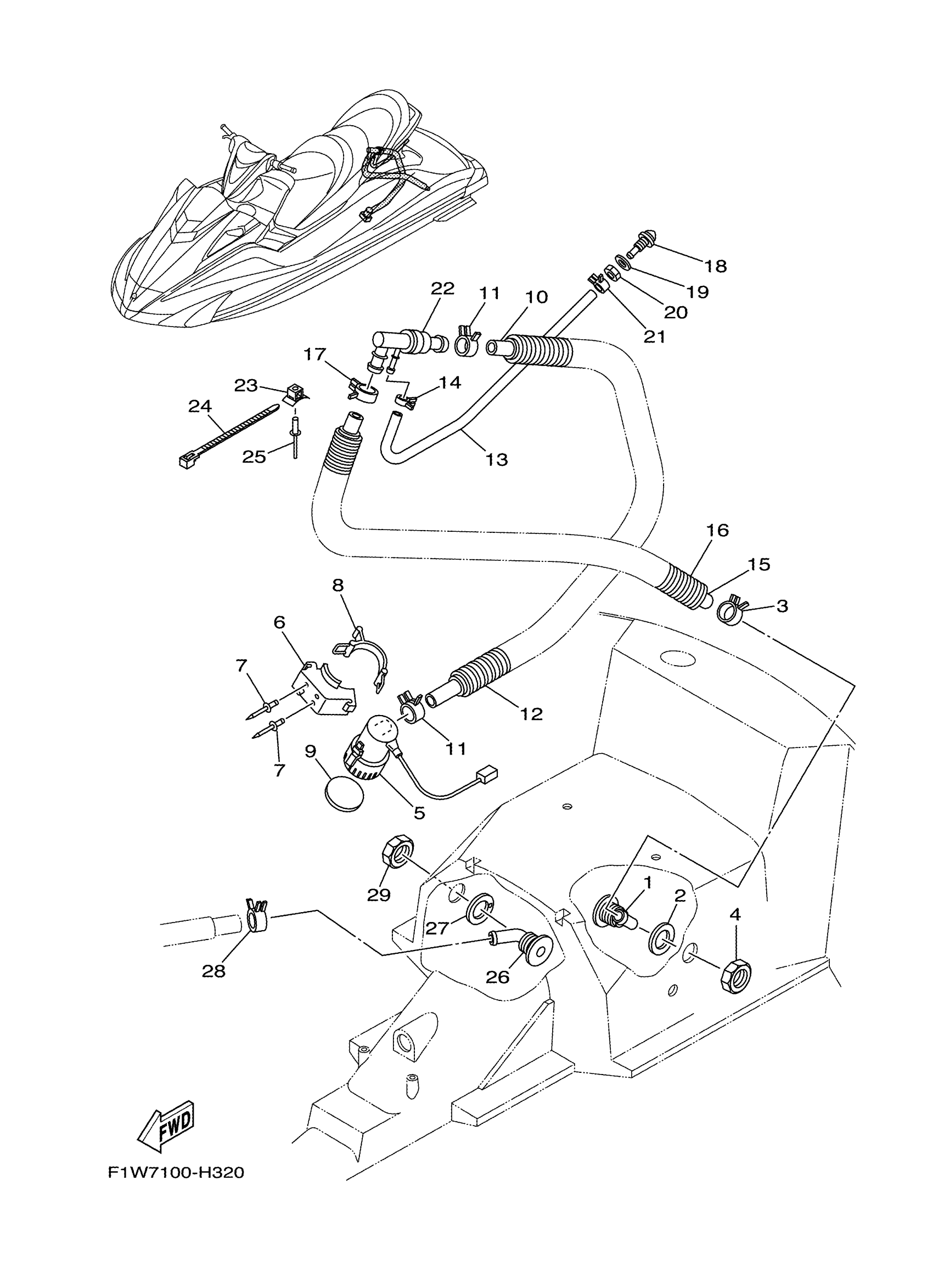

Yamaha FX1800HK (WAVERUNNER FX SHO) FIWA0 2009 BILGE PUMP Diagram

#

Description
Price

1

BODY, DRAIN 3

F1W-U224E-00-00

$4.77

2

PACKING

F1S-U7525-01-00

$99.98

3

CLIP

90467-26800-00

$2.66

4

DRAIN, COCKPIT

F1B-62241-00-00

$13.99

5

BILGE PUMP ASSY

F1B-U8360-02-00

$120.63

6

BRACKET

F1B-U7698-01-00

Unavailable

7

RIVET, 1

F3J-U516R-00-00

$2.36

8

BAND, BATTERY

GA7-68218-00-00

$41.99

9

PACKING, BILGE

F1B-U7656-00-00

$1.17

10

HOSE 1

F1B-U7626-00-00

$18.17

11

CLIP

90467-25801-00

$3.79

12

TUBE

F2T-U773D-10-00

$5.68

13

HOSE, DRAIN 2

F1W-U7629-00-00

Unavailable

14

CLIP

90467-14803-00

$2.58

15

HOSE, DRAIN 3

F1B-U7628-00-00

$21.20

16

TUBE

F2T-U773D-10-00

$5.68

17

CLIP

90467-26800-00

$2.66

18

PILOT,WATER

GH7-6753B-00-00

$30.99

19

GASKET(GJ1)

90430-16910-00

Unavailable

20

NUT

GP7-61652-00-00

$10.24

21

CLIP

90467-14803-00

$2.58

22

HOSE JOINT

F1S-67620-00-00

$66.65

23

CLAMP COMP (EU0)

90600-91736-00

Unavailable

24

CLAMP

90464-51800-00

Unavailable

25

RIVET, BLIND

90267-489U6-00

$1.37

26

BODY, DRAIN 3

F1W-U224E-00-00

$4.77

27

PACKING

F1S-U7525-01-00

$99.98

28

CLIP

90467-26800-00

$2.66

29

DRAIN, COCKPIT

F1B-62241-00-00

$13.99
