Description

Price

1

STARTER ONE-WAY ASSY

6S5-15590-00-00

Unavailable

2

BOLT, SOCKET

91317-08020-00

$8.49

3

GEAR 3

6LE-15515-00-00

$349.99

4

SHAFT 1

6S5-15521-00-00

Unavailable

5

GEAR, IDLER 2

6S5-15517-00-00

Unavailable

6

ROTOR ASSY

6S5-81450-01-00

Unavailable

7

STATOR ASSY

6ET-81410-00-00

Unavailable

8

SCREW

90149-06182-00

$8.49

9

BOLT, WITH WASHER

97513-05514-00

Unavailable

10

KEY, WOODRUFF(1WG)

90280-03047-00

$5.60

11

COVER, FLYWHEEL

6S5-81337-31-00

Unavailable

12

BEARING

93306-00809-00

Unavailable

13

OIL SEAL

6LE-81167-00-00

$73.99

14

CIRCLIP (70R)

93420-72065-00

Unavailable

15

BOLT, FLANGE

90105-08249-00

Unavailable

16

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

17

. O-RING

6S5-81168-00-00

Unavailable

18

CLAMP

6S5-81328-00-00

Unavailable

19

BOLT,SOCKET

91317-06014-00

Unavailable

20

BOLT, SOCKET

91317-05010-00

Unavailable

21

WASHER, PLATE (7N7)

90201-052E8-00

Unavailable

22

COLLAR

90387-06M05-00

Unavailable

23

. BOLT

91380-06020-00

Unavailable

24

. GROMMET

6S5-81364-11-00

Unavailable

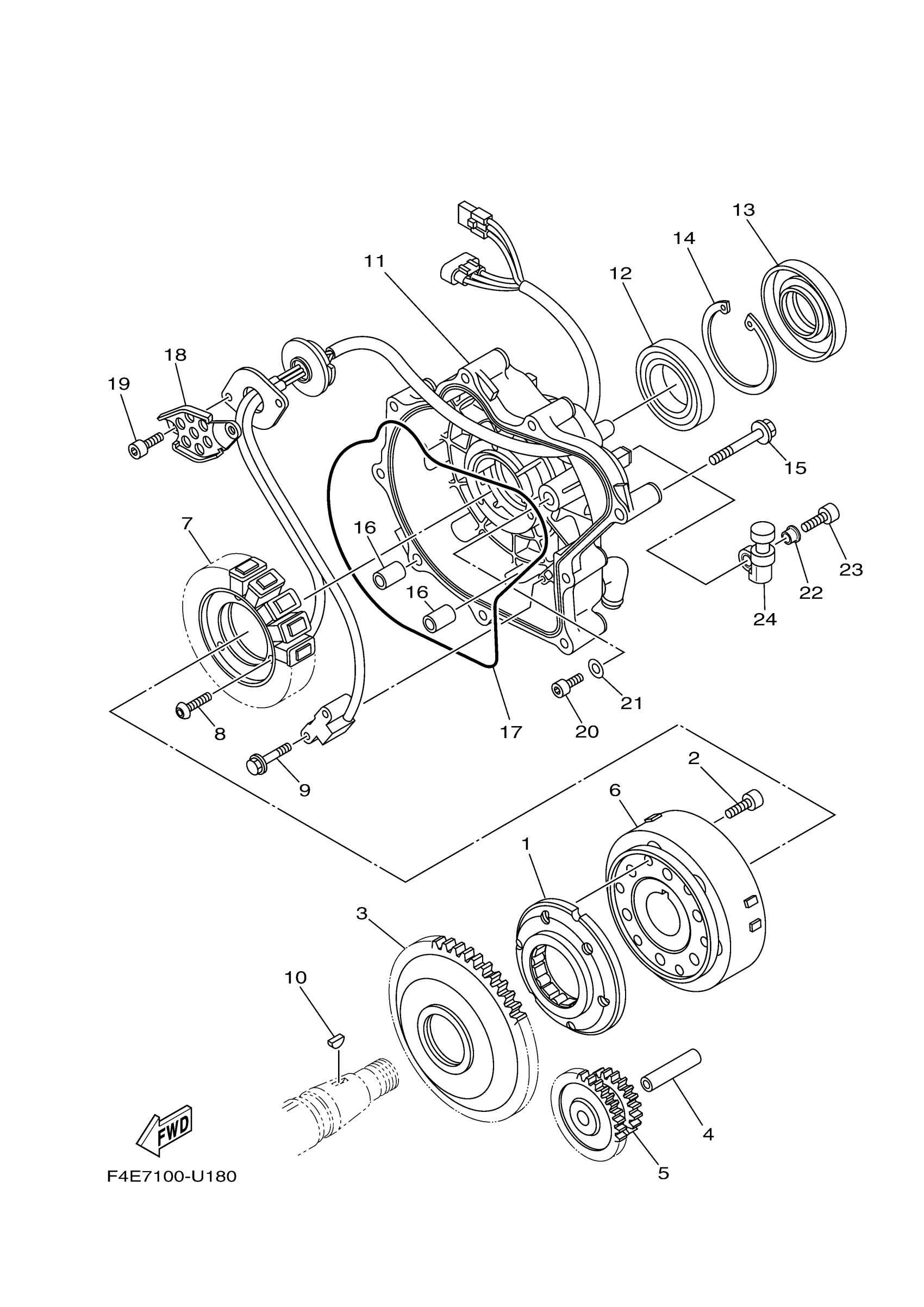

Yamaha FX1800GX (FX CRUISER HO WITH AUDIO_FX CRUISER HO) F3V8 2022 GENERATOR Diagram

STARTER ONE-WAY ASSY

BOLT, SOCKET

GEAR 3

SHAFT 1

GEAR, IDLER 2

ROTOR ASSY

STATOR ASSY

SCREW

BOLT, WITH WASHER

KEY, WOODRUFF(1WG)

COVER, FLYWHEEL

BEARING

OIL SEAL

CIRCLIP (70R)

BOLT, FLANGE

PIN, DOWEL(3VD)

. O-RING

CLAMP

BOLT,SOCKET

BOLT, SOCKET

WASHER, PLATE (7N7)

COLLAR

. BOLT

. GROMMET
