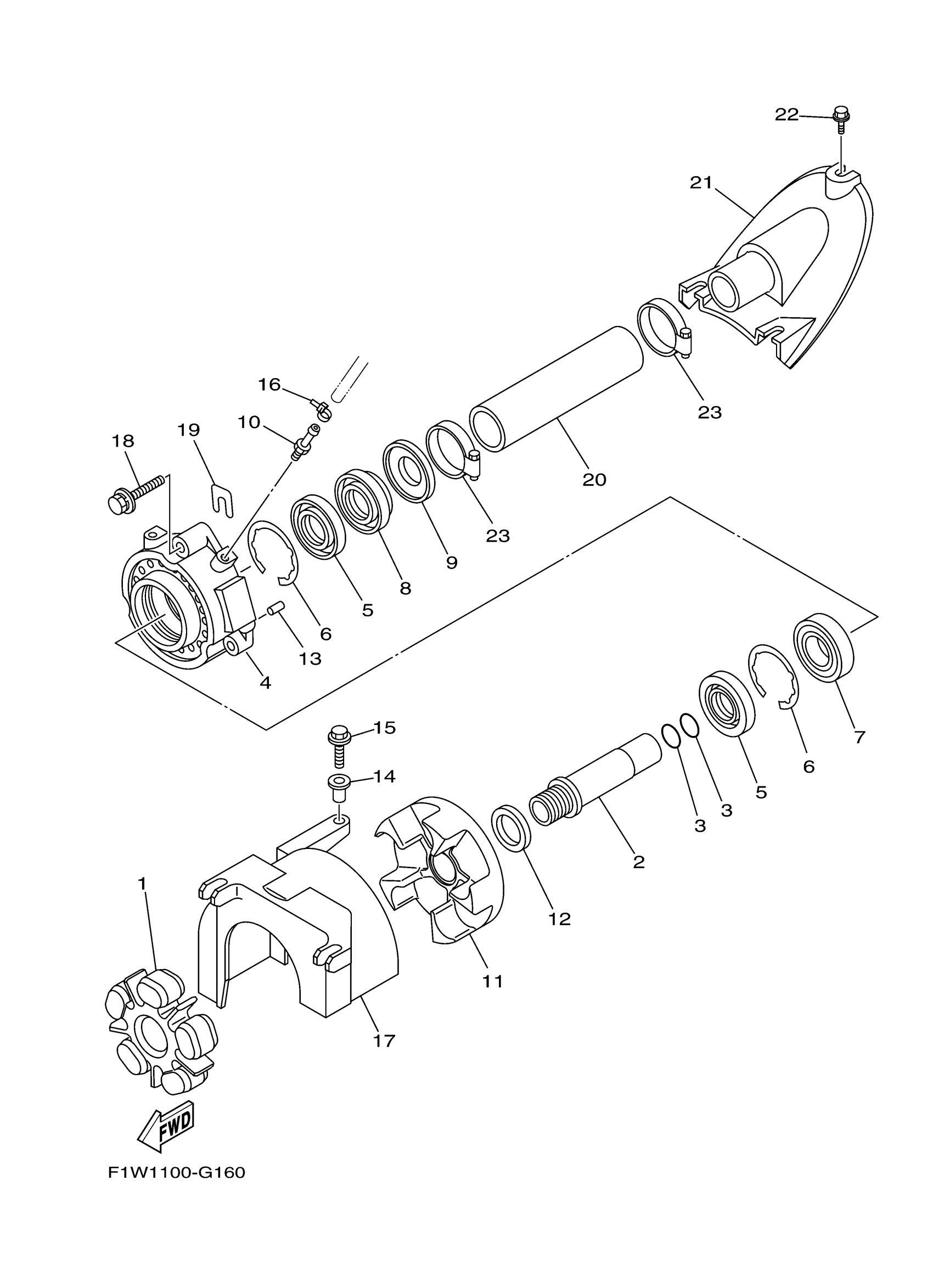

Yamaha FX1800GK (WAVERUNNER FX SUPER HIGH OUTPUT) F1W40 2008 JET UNIT 2 Diagram

#

Description
Price

1

RUBBER SHAFT COUPL

6BH-4581J-01-00

$136.35

2

SHAFT, COUPLER

6S5-R1323-00-00

$130.35

3

O-RING(6U1)

93210-22MF1-00

$4.65

4

HOUSING, BEARING

6S5-G5332-00-00

$200.40

5

. OIL SEAL

93102-29008-00

$22.22

6

CIRCLIP

93450-66156-00

$2.95

7

BEARING

93306-206Y8-00

$43.06

8

OIL SEAL

93102-29009-00

$54.53

9

WASHER, THRUST

6S5-45613-10-00

$28.52

10

NIPPLE, HOSE

61L-45378-00-00

$11.35

11

FLANGE, COUPLING 1

6S5-G5593-00-00

$43.06

12

WASHER

6S5-12289-00-00

$24.13

13

PIN, DOWEL (614)

93606-12019-00

$3.05

14

COLLAR

90387-06M60-00

$6.37

15

BOLT, WITH WASHER

90119-06892-00

$3.79

16

CLAMP

90465-10098-00

$1.68

17

COVER

6S5-R1381-01-00

$4.15

18

BOLT, WITH WASHER

90119-089U1-00

$3.23

19

SHIM (0.5)

GD0-U7249-00-05

$1.94

20

PIPE, 1

F2C-U883B-00-00

$24.23

21

JOINT, PIPE

F1W-U883E-00-00

$13.63

22

SCREW

90149-069UA-00

Unavailable

23

BAND, HOSE 52

90601-152U3-00

$5.67
