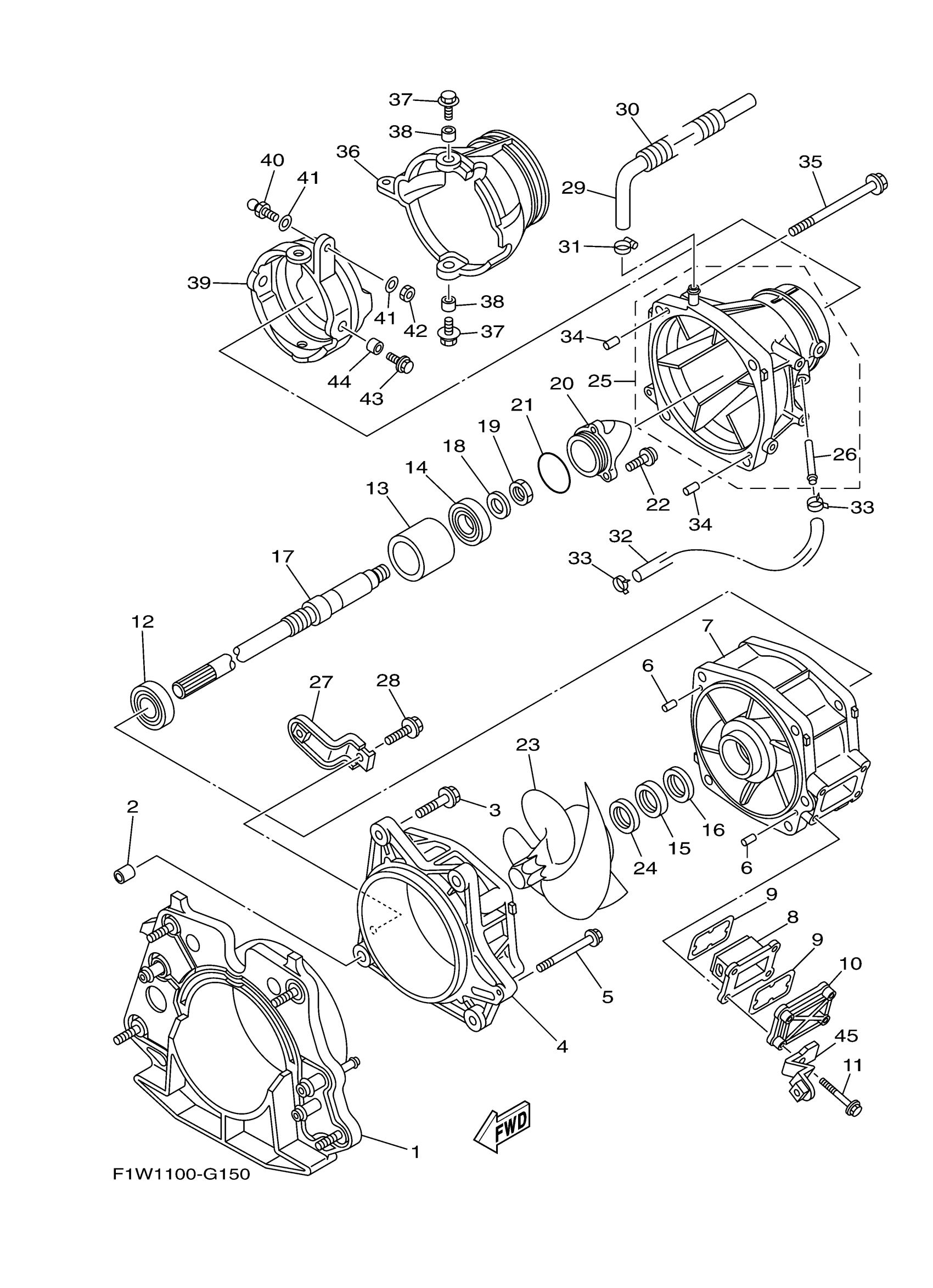

Yamaha FX1800GK (WAVERUNNER FX SUPER HIGH OUTPUT) F1W40 2008 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6S5-G5831-02-00

Unavailable

2

PIN, DOWEL(4JT)

99590-14016-00

$4.24

3

BOLT, WITH WASHER

90119-10811-00

Unavailable

4

HOUSING, IMPELLER

6CR-R1312-00-00

Unavailable

5

BOLT, WITH WASHER

90119-06894-00

Unavailable

6

PIN, DOWEL (614)

93606-12019-00

$4.24

7

DUCT, IMPELLER

6CR-R1315-00-00

Unavailable

8

FILTER

66V-46882-00-00

Unavailable

9

. O-RING

66V-42414-00-00

Unavailable

10

COVER, WATER INLET 1

66V-45214-00-00

Unavailable

11

BOLT,WITH WASHER

90119-06898-00

Unavailable

12

BEARING

93306-20654-00

$76.99

13

SPACER 1

6S5-45538-00-00

Unavailable

14

BEARING

93306-30582-00

Unavailable

15

. OIL SEAL

93102-31009-00

Unavailable

16

. OIL SEAL

93101-31001-00

Unavailable

17

SHAFT, DRIVE

6S5-G5511-00-00

Unavailable

18

WASHER

9290P-20600-00

Unavailable

19

NUT

90170-20802-00

Unavailable

20

CAP

6S5-51326-00-00

Unavailable

21

O-RING

93210-54010-00

Unavailable

22

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

Unavailable

23

IMPELLER

6S5-R1321-04-00

Unavailable

24

SPACER

6S5-R1348-00-00

Unavailable

25

NOZZLE

6S5-51318-00-94

Unavailable

26

. NIPPLE,HOSE

63M-51334-00-00

Unavailable

27

BRACKET

6B6-R1343-00-00

Unavailable

28

BOLT,WITH WASHER

90119-06890-00

Unavailable

29

HOSE (L310)

90445-16806-00

Unavailable

30

TUBE (L230)

90447-19015-00

Unavailable

31

BAND, HOSE 18

90601-118UF-00

Unavailable

32

HOSE (L330)

90445-14804-00

Unavailable

33

CLIP

90467-14803-00

Unavailable

34

PIN, DOWEL (614)

93606-12019-00

$4.24

35

BOLT, WITH WASHER

90119-10807-00

Unavailable

36

NOZZLE, DEFLECTOR

6S5-R1313-01-00

Unavailable

37

BOLT, WITH WASHER

90119-08852-00

Unavailable

38

COLLAR(6R7)

90387-08M06-00

Unavailable

39

RING,TRIM

60T-51190-00-94

Unavailable

40

STUD, JOINT BALL

GH3-U146E-00-00

Unavailable

41

WASHER,PLATE

90201-068M4-00

Unavailable

42

NUT

9538R-06700-00

Unavailable

43

BOLT, WITH WASHER

90119-08852-00

Unavailable

44

COLLAR(6R7)

90387-08M06-00

Unavailable

45

BRACKET 2

6B6-51342-00-00

Unavailable
