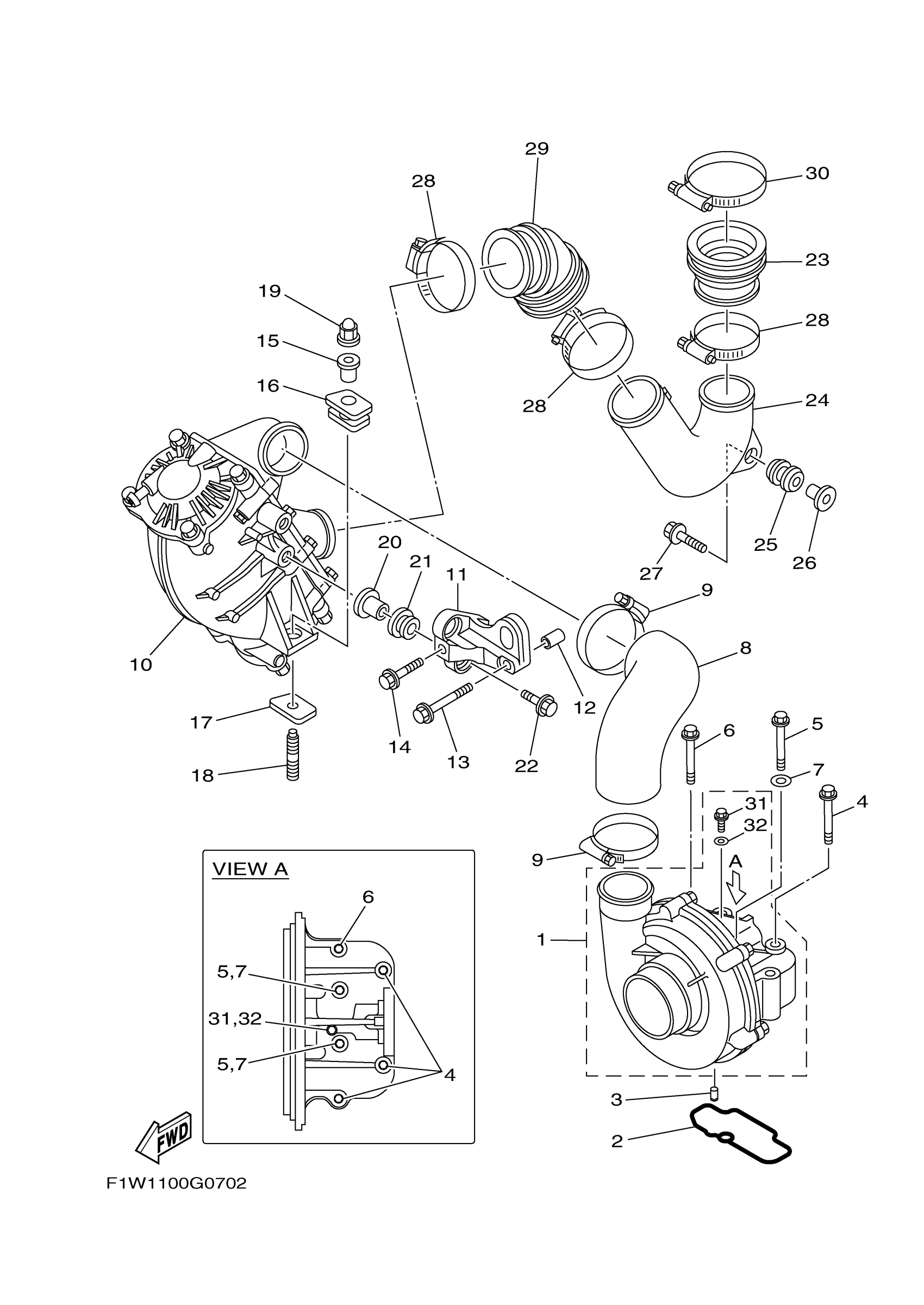

Yamaha FX1800GK (WAVERUNNER FX SUPER HIGH OUTPUT) F1W40 2008 INTAKE 2 Diagram

#

Description
Price

1

SUPER CHARGER ASSY

6S5-141A0-08-00

Unavailable

2

. O-RING

6S5-1416A-00-00

$8.73

3

PIN, DOWEL

93604-10M03-00

$4.17

4

BOLT, FLANGE

95814-08065-00

$3.29

5

BOLT, FLANGE

95814-06065-00

$1.72

6

BOLT, FLANGE

90105-08188-00

$5.31

7

WASHER, PLATE

90201-06028-00

$2.52

8

PIPE

6S5-14349-00-00

$374.61

9

HOSE CLAMP ASSY

90450-75003-00

$29.84

10

AIR COOLER ASSY.

6S5-13670-10-00

Unavailable

11

BRACKET, AIR COOLER

6S5-13691-00-94

$113.42

12

PIN, DOWEL(4JT)

99590-14016-00

$3.50

13

BOLT, WITH WASHER

90119-10047-00

$7.16

14

BOLT, WITH WASHER

90119-10046-00

$6.27

15

COLLAR

90387-11007-00

$8.19

16

GROMMET

6S5-14435-01-00

$4.48

17

PLATE

6S5-14243-01-00

$8.19

18

BOLT, STUD

90116-10044-00

$11.18

19

NUT, CAP

90176-10001-00

$3.41

20

COLLAR

90387-11008-00

$19.39

21

GROMMET(62L)

90480-21M63-00

Unavailable

22

BOLT, WITH WASHER

90119-10011-00

$5.82

23

PIPE, INTAKE

6S5-13652-00-00

$123.87

24

PIPE, BOOST

6S5-13651-00-00

$158.19

25

GROMMET

90480-22M15-00

$11.01

26

COLLAR

90387-08M37-00

$10.28

27

BOLT, WITH WASHER

90119-08187-00

$3.02

28

HOSE CLAMP ASSY

90450-70005-00

$40.28

29

PIPE

6S5-14148-00-00

$110.43

30

HOSE CLAMP ASSY

90450-70M13-00

$46.25

31

. SCREW, COUNTERSUNK

90152-08S16-00

$0.79

32

. GASKET

6S5-14199-00-00

$1.72
