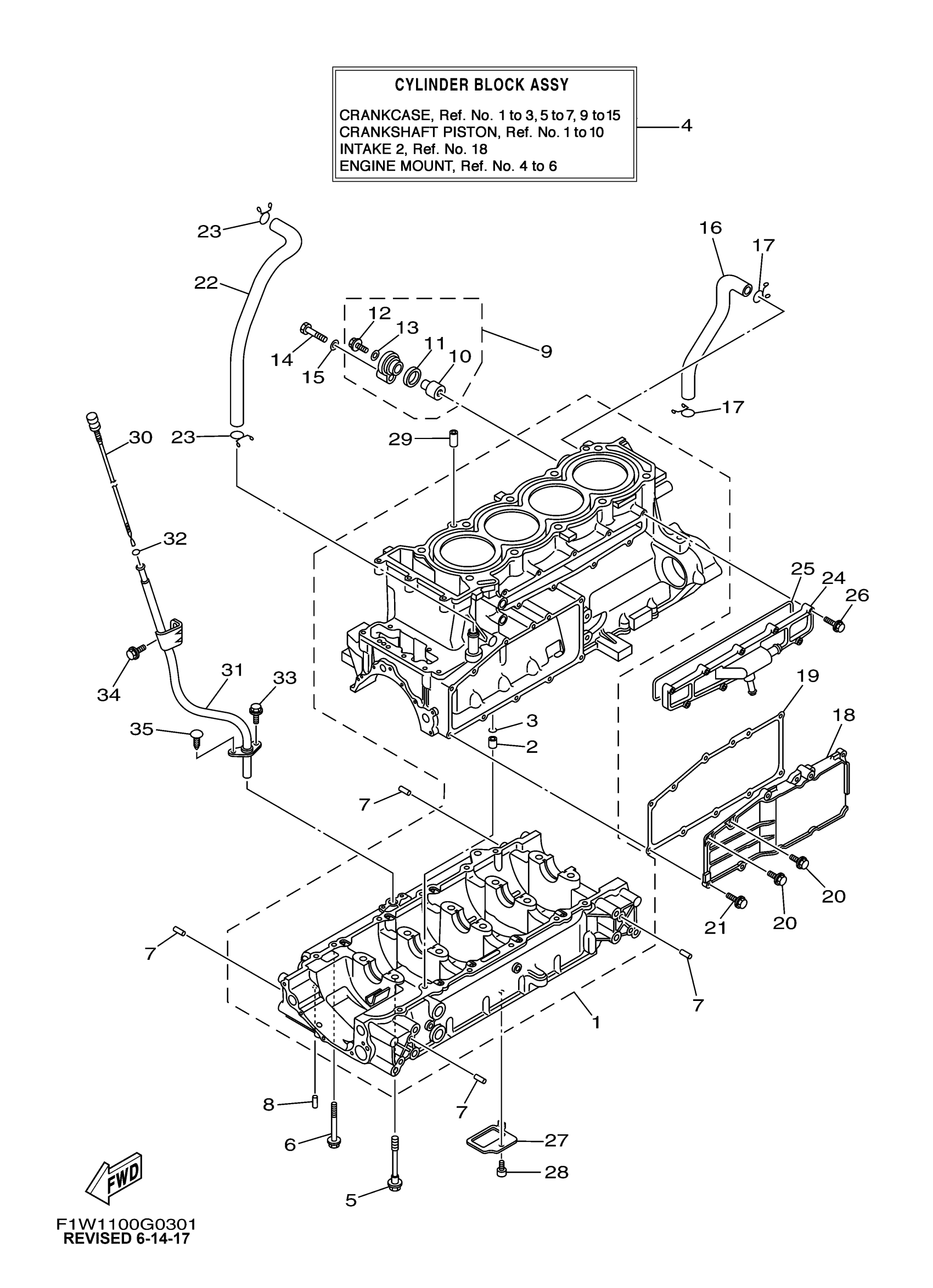

Yamaha FX1800GK (WAVERUNNER FX SUPER HIGH OUTPUT) F1W40 2008 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

6CS-15100-20-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

O-RING (4G0)

93210-11453-00

$7.49

4

CYLINDER BLOCK ASSY

6CS-W009B-28-94

Unavailable

5

. BOLT, FLANGE

90105-10071-00

Unavailable

6

BOLT, FLANGE(3JP)

95814-06070-00

$8.49

7

PIN, DOWEL (614)

93606-12019-00

$4.24

8

PIN, DOWEL

93604-10M03-00

Unavailable

9

ANODE COVER ASSY

69J-11301-11-00

$16.99

10

. ANODE

68V-11325-02-00

Unavailable

11

GROMMET, ANODE

67F-11328-01-00

Unavailable

12

BOLT (689)

90105-06M07-00

$1.54

13

. GASKET

90430-06M03-00

Unavailable

14

BOLT, HEXAGON

97095-08040-00

$4.19

15

.. WASHER, PLATE

92990-08600-00

Unavailable

16

HOSE

6S5-11377-00-00

Unavailable

17

CLIP

90467-190A0-00

Unavailable

18

COVER

6S5-1131M-20-00

Unavailable

19

. GASKET

6S5-13557-00-00

Unavailable

20

BOLT, FLANGE

95024-06014-00

Unavailable

21

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable

22

PIPE, BREATHER 3

6S5-11126-00-00

Unavailable

23

CLIP

90467-190A0-00

Unavailable

24

JOINT 1

99999-03849-00

Unavailable

25

. GASKET, WATER INLET

6S5-12517-01-00

Unavailable

26

BOLT, FLANGE(4KG)

95024-06025-00

Unavailable

27

PLATE, BAFFLE LOWER

6S5-13337-00-00

Unavailable

28

BOLT,SOCKET

91317-06012-00

Unavailable

29

PIN, DOWEL(3VD)

99530-10114-00

$2.55

30

PLUG, OIL LEVEL

6S5-15362-01-00

Unavailable

31

OIL LEVEL PIPE SET

99999-03939-00

Unavailable

32

O-RING(3LD)

93210-12790-00

Unavailable

33

BOLT, FLANGE

95880-06014-00

Unavailable

34

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable

35

PLUG

90338-05M03-00

Unavailable
