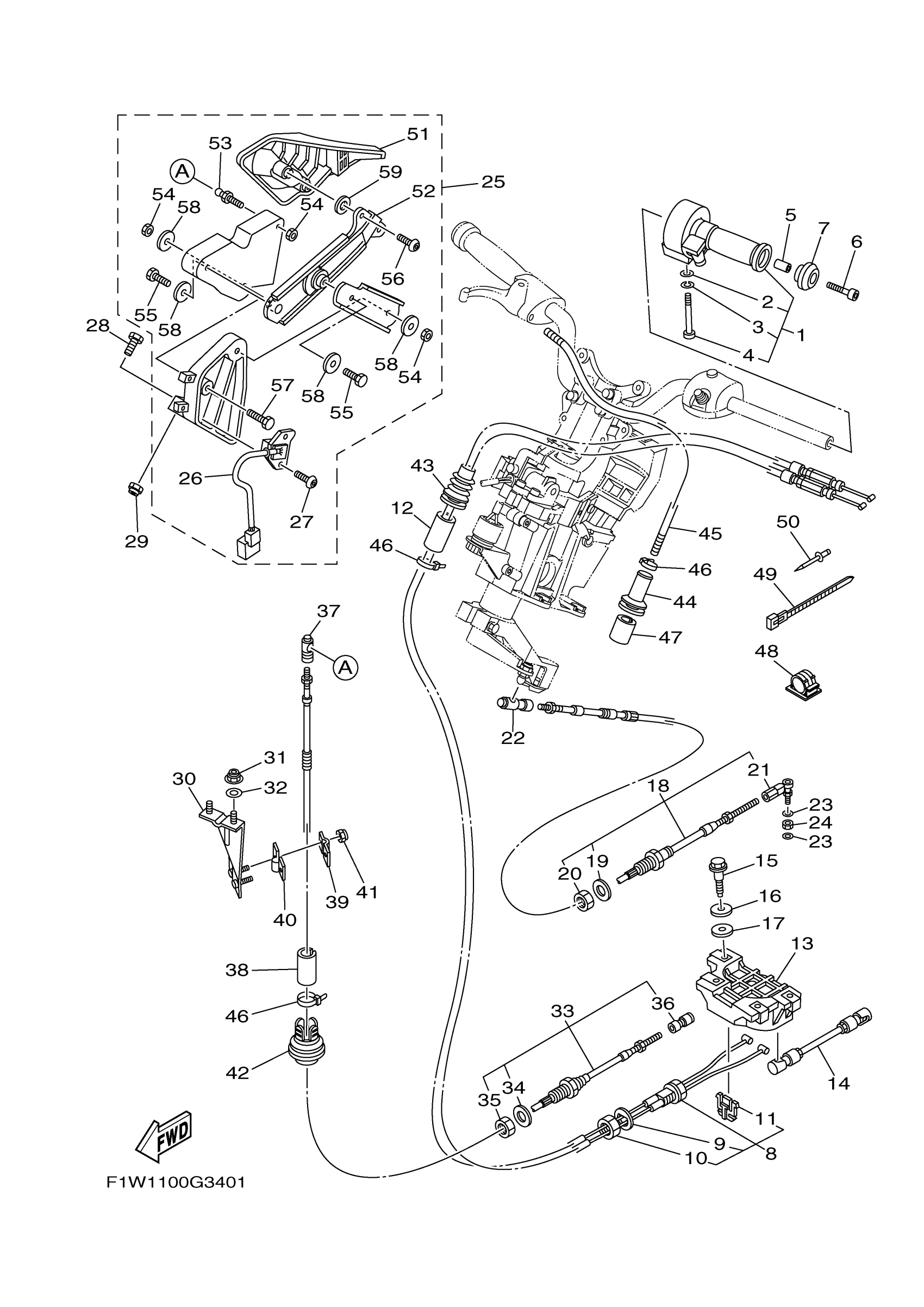

Yamaha FX1800GK (WAVERUNNER FX SUPER HIGH OUTPUT) F1W40 2008 CONTROL CABLE Diagram

#

Description

Price

1

NOZZLE,CONTROL ASSY

F1W-6153A-00-00

Unavailable

2

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

3

WASHER, SPRING

92995-06100-00

Unavailable

4

SCREW

F1W-613C1-10-00

Unavailable

5

COLLAR

90387-05800-00

Unavailable

6

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

Unavailable

7

GRIP, END

GP7-U155F-00-00

Unavailable

8

CABLE,NOZZLE CONTROL 3

F1W-6153E-01-00

Unavailable

9

. PACKING C

F1W-61438-00-00

Unavailable

10

NUT

F1B-6151S-01-00

Unavailable

11

. GUIDE, CABLE

F1W-61557-00-00

Unavailable

12

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

13

REMOCON,NOZZLE 2

F1W-6153J-01-00

Unavailable

14

ROD ASSY

F1W-6150A-00-00

Unavailable

15

BOLT

90109-06233-00

Unavailable

16

WASHER, PLATE

90201-099U3-00

Unavailable

17

WASHER, PLATE

90202-08002-00

Unavailable

18

CABLE, STEERING

F1S-61481-02-00

Unavailable

19

. PACKING C

F1B-61438-00-00

Unavailable

20

NUT

F1B-6151S-01-00

Unavailable

21

. STUD, JOINT BALL

F1B-61461-02-00

Unavailable

22

SHAFT,JOINT BALL

GK5-U146F-00-00

Unavailable

23

WASHER, PLATE

90201-06906-00

Unavailable

24

NUT

9538R-06700-00

Unavailable

25

REMOCON. LEVER ASSY.

F1W-6134A-01-00

Unavailable

26

REVERSE SENSOR ASSY

F1W-6830K-01-00

Unavailable

27

SCREW

F1B-613C1-10-00

Unavailable

28

BOLT(JF7)

97080-06030-00

Unavailable

29

NUT, SELF-LOCKING

90185-06014-00

Unavailable

30

BRACKET,STOPPER CABLE

F1W-U1467-02-00

Unavailable

31

NUT, NYLON (6J8)

95780-08300-00

Unavailable

32

WASHER

9299R-08200-00

Unavailable

33

CABLE,REVERSE

F1W-6149C-02-00

Unavailable

34

. PACKING C

F1B-61438-00-00

Unavailable

35

NUT

F1B-6151S-01-00

Unavailable

36

. BALL JOINT ASSY

F1B-61460-00-00

Unavailable

37

. BALL JOINT ASSY

F1B-61460-00-00

Unavailable

38

PACKING, CABLE

F1W-U146G-00-00

Unavailable

39

STOPPER, CABLE

GH1-61468-01-00

Unavailable

40

HOLDER, STOPPER

GU5-6146K-10-00

Unavailable

41

NUT, NYLON

9572R-06300-00

Unavailable

42

GROMMET

F1W-U1519-00-00

Unavailable

43

GROMMET

F0D-6822E-00-00

Unavailable

44

GROMMET

GU2-6822E-01-00

Unavailable

45

HOSE, WITH SPRING

90447-07001-00

Unavailable

46

BAND

90601-200U1-00

Unavailable

47

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

48

CLAMP COMP (EU0)

90600-91736-00

Unavailable

49

CLAMP

90464-32801-00

Unavailable

50

RIVET, BLIND

90267-48802-00

Unavailable

51

. GRIP

F1W-62714-00-00

Unavailable

52

. LEVER

F1W-62289-00-00

Unavailable

53

. STUD, JOINT BALL

F1X-61461-00-00

Unavailable

54

NUT, SELF-LOCKING

95720-06300-00

Unavailable

55

BOLT(GJ3)

97080-06014-00

Unavailable

56

. SCREW

F1X-613C1-00-00

Unavailable

57

. BOLT

F0D-61355-00-00

Unavailable

58

. WASHER

FJ0-61353-00-00

Unavailable

59

. WASHER

F1W-6134E-00-00

Unavailable
