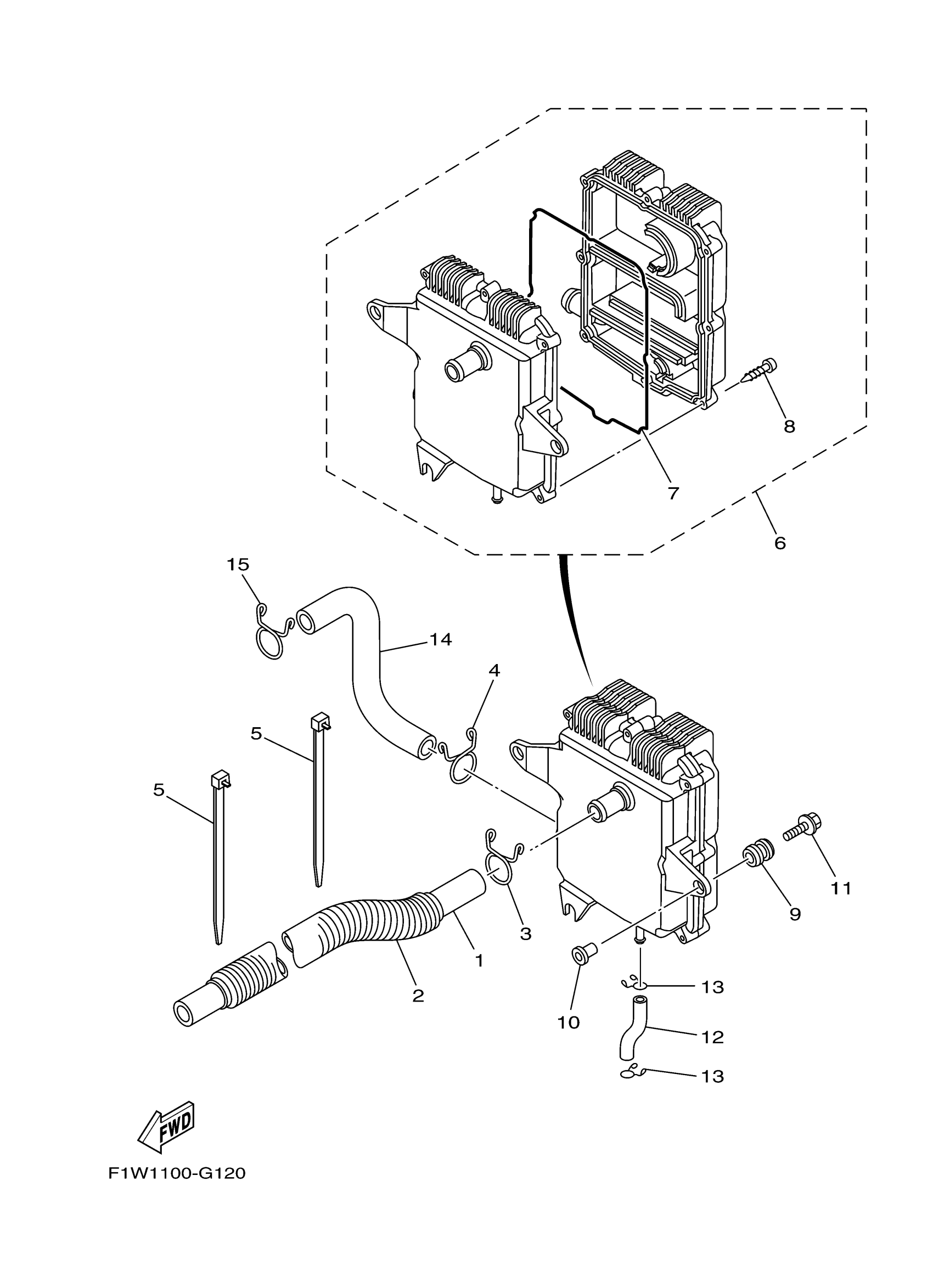

Yamaha FX1800GK (WAVERUNNER FX SUPER HIGH OUTPUT) F1W40 2008 BREATHER OIL Diagram

#

Description
Price

1

PIPE, BREATHER 1

6AP-11166-00-00

Unavailable

2

HOSE

90446-30ME9-00

Unavailable

3

CLIP

90467-240A2-00

$2.73

4

CLIP

90467-240A2-00

$2.73

5

CLAMP

90465-14M66-00

$3.14

6

BREATHER ASSY

6BH-11160-00-00

$84.83

7

. O-RING

93212-02001-00

$15.49

8

SCREW, TAPPING

97780-60530-00

$5.45

9

DAMPER, IGNITION COIL

61N-82317-01-00

$1.01

10

. COLLAR

90387-06119-00

$4.37

11

BOLT, FLANGE

95814-06030-00

$2.56

12

PIPE, BREATHER 4

6S5-11125-00-00

$2.27

13

CLIP(72X)

90467-11M08-00

$2.50

14

PIPE, BREATHER 2

6S5-11167-00-00

$43.92

15

CLIP

90467-240A2-00

$2.73
