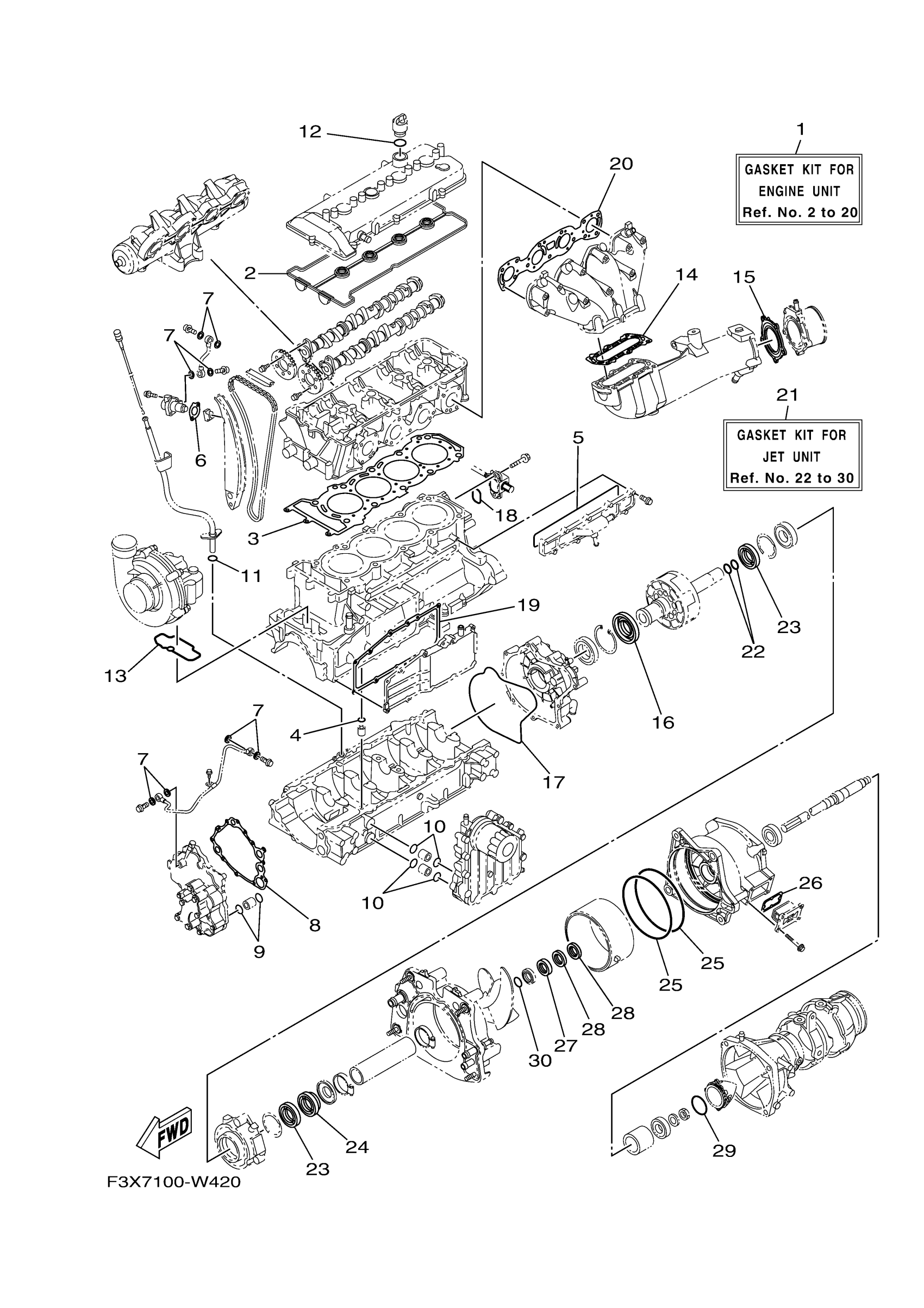

Yamaha FX1800EX (FX SVHO WITH AUDIO_FX SVHO) F5G5 2022 REPAIR KIT 1 Diagram

#

Description
Price

1

GASKET KIT FOR ENG

6HL-W0001-01-00

Unavailable

2

. GASKET, HEAD COVER 1

6BH-11193-00-00

$35.93

3

GASKET, CYLINDER HEAD 1

6JC-11181-00-00

$119.63

4

O-RING (4G0)

93210-11453-00

$5.47

5

. GASKET, WATER INLET

6CS-12517-00-00

$15.55

6

. GASKET

6S5-121E2-00-00

$2.80

7

. GASKET

90430-10007-00

$3.60

8

. GASKET

6S5-13563-00-00

$10.74

9

O-RING (26H)

93210-21631-00

$5.99

10

O-RING (1L9)

93210-18322-00

$4.24

11

. O-RING

93210-12016-00

$2.57

12

O-RING (437)

93210-24235-00

$5.34

13

. O-RING

6S5-1416A-00-00

$8.51

14

. GASKET, MUFFLER DAMPER 1

6S5-14739-00-00

$22.22

15

. GASKET, MUFFLER DAMPER 2

6BH-14749-00-00

$17.77

16

OIL SEAL

6LE-81167-00-00

Unavailable

17

. O-RING

6S5-81168-00-00

$32.18

18

O-RING (341)

93210-32172-00

Unavailable

19

. GASKET

6BH-13557-00-00

$27.78

20

. GASKET, EXHAUST PIPE

6ET-14613-00-00

$36.77

21

GASKET KIT FOR JET UNIT

6GN-W0001-20-00

$256.05

22

O-RING(6U1)

93210-22MF1-00

Unavailable

23

. OIL SEAL

93102-29008-00

$22.22

24

OIL SEAL

93102-29009-00

$54.53

25

. O-RING

93211-70800-00

$3.52

26

. O-RING

66V-42414-00-00

$5.18

27

. OIL SEAL

93102-31009-00

$80.29

28

. OIL SEAL

93101-31001-00

$32.99

29

O-RING

93210-54010-00

$2.64

30

O-RING (30X)

93210-30611-00

Unavailable
