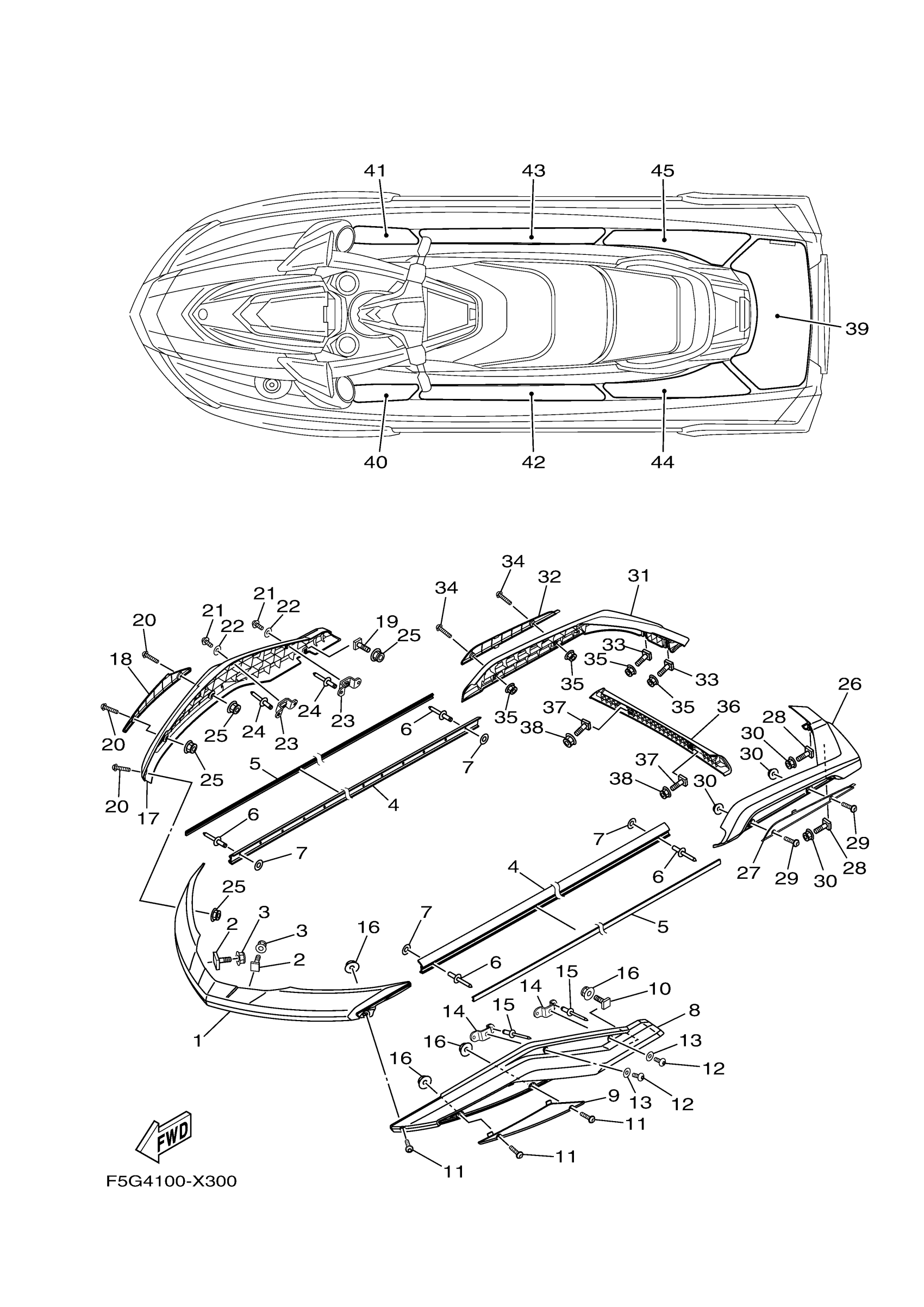

Yamaha FX1800EX (FX SVHO WITH AUDIO_FX SVHO) F5G5 2022 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F3X-U2511-11-00

$37.98

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

GUNWALE, SIDE

F3X-U2512-10-00

$26.10

5

INNER,GUNWALE

F3X-U2519-00-00

$17.90

6

RIVET, BLIND

90267-489U8-00

$1.37

7

WASHER

9299R-05200-00

$4.60

8

JOINT, GUNWALE LH

F3X-U252E-10-00

$39.53

9

GUNWALL INSIDE

F3X-U2514-40-00

$11.93

10

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

11

SCREW

F3X-U7823-12-00

$1.25

12

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

13

WASHER, PLATE

90201-06805-00

$0.60

14

BRACKET

F3X-U4949-00-00

$2.66

15

RIVET, BLIND

90267-489U6-00

Unavailable

16

NUT, LOCK

F2N-U142L-00-00

$1.00

17

JOINT, GUNWALE RH

F3X-U252F-10-00

$39.53

18

GUNWALL INSIDE

F3X-U2514-50-00

$11.48

19

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

20

SCREW

F3X-U7823-12-00

$1.25

21

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

22

WASHER, PLATE

90201-06805-00

$0.60

23

BRACKET

F3X-U4949-00-00

$2.66

24

RIVET, BLIND

90267-489U6-00

Unavailable

25

NUT, LOCK

F2N-U142L-00-00

$1.00

26

GUNWALE, STERN 1

F3X-U251D-10-00

$31.33

27

INNER GUNWALE, AFT

F3X-U255C-40-00

$5.15

28

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

29

SCREW

F3X-U7823-12-00

$1.25

30

NUT, LOCK

F2N-U142L-00-00

$1.00

31

GUNWALE, STERN 2

F3X-U251E-10-00

$31.33

32

INNER GUNWALE, AFT

F3X-U255C-50-00

$5.15

33

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

34

SCREW

F3X-U7823-12-00

$1.25

35

NUT, LOCK

F2N-U142L-00-00

$1.00

36

COVER, GUNWALE 1

F3X-U252C-11-00

$16.40

37

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

38

NUT, LOCK

F2N-U142L-00-00

$1.00

39

MAT, UPPER

F3X-U3581-20-00

$97.00

40

MAT, STEP 1

F3V-U351H-20-00

$44.76

41

MAT, STEP 2

F3V-U351J-20-00

$42.63

42

MAT, STEP 3

F3X-U351K-20-00

$53.72

43

MAT, STEP 4

F3X-U351M-20-00

$53.72

44

MAT, STEP 5

F3X-U351N-20-00

$55.80

45

MAT, STEP 6

F3X-U351P-20-00

$58.19
