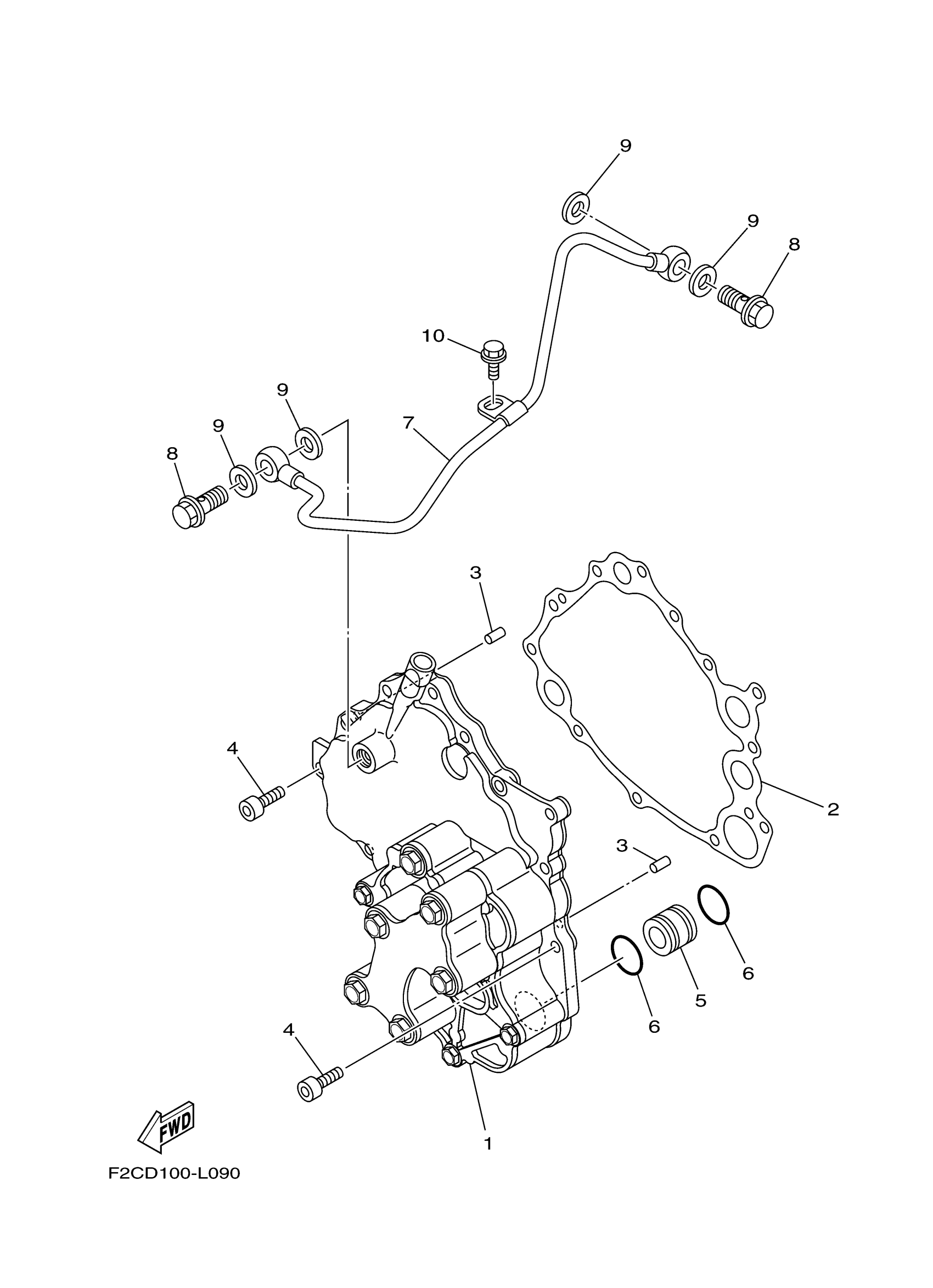

Yamaha FX1800DY (SVHO WITH AUDIO) F5G8 2023 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

6S5-13300-22-00

$939.30

2

. GASKET

6S5-13563-00-00

$11.01

3

PIN, DOWEL (614)

93606-12019-00

$3.50

4

BOLT,SOCKET HEAD

91314-06020-00

$1.91

5

CONNECTOR

6S5-13446-10-00

$16.71

6

O-RING (26H)

93210-21631-00

$5.99

7

PIPE, OIL 1

6HL-13416-00-00

$59.69

8

BOLT, UNION

90401-10040-00

$7.59

9

. GASKET

90430-10007-00

$3.60

10

BOLT, FLANGE D/R (

95E33-06012-00

$0.90
