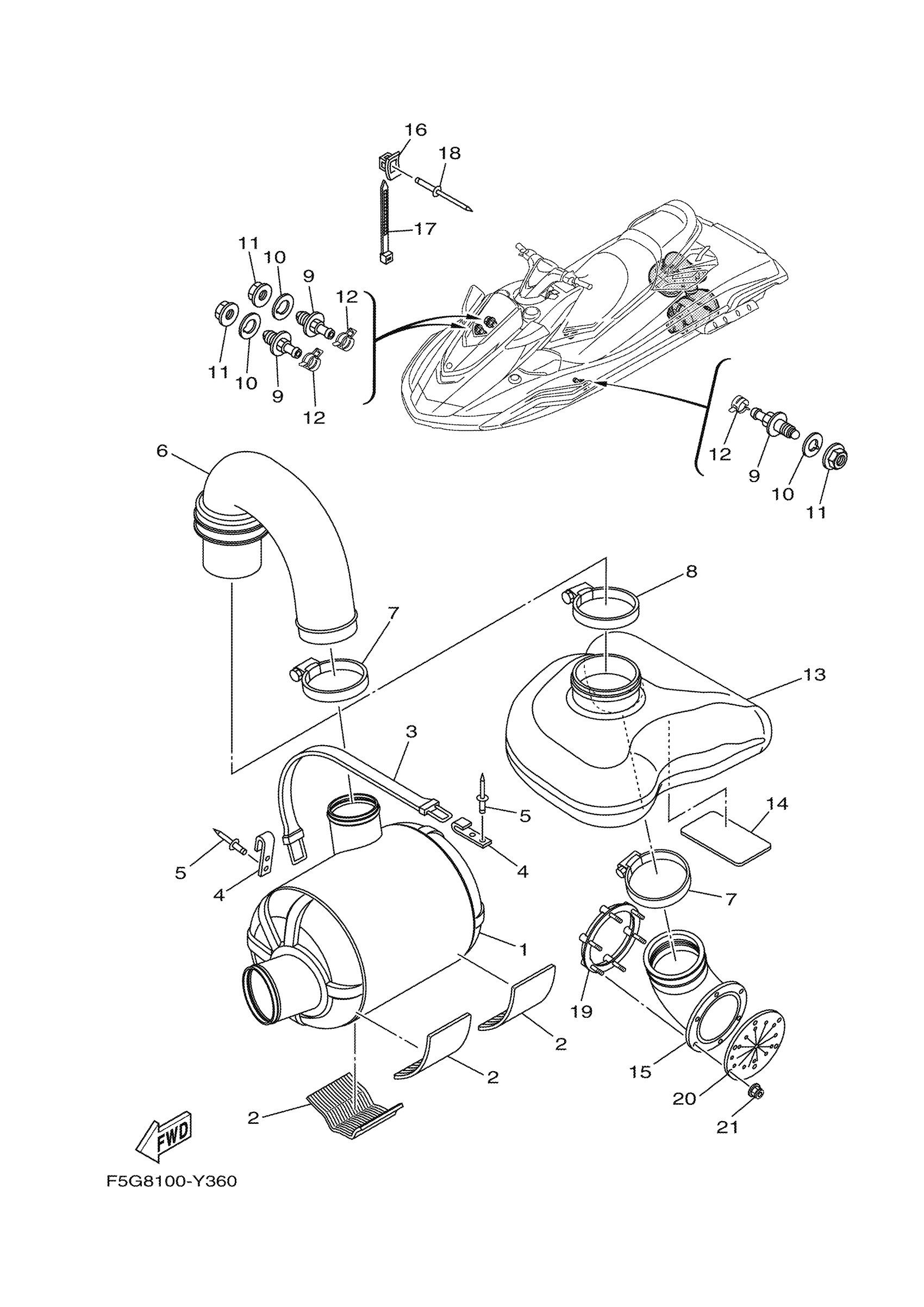

Yamaha FX1800DY (SVHO WITH AUDIO) F5G8 2023 EXHAUST 3 Diagram

#

Description
Price

1

WATER LOCK COMP.

F4P-U7550-00-00

$313.22

2

PAD, BATTERY

F1S-U8221-00-00

$2.88

3

BAND, FUEL TANK

EW2-67821-00-00

Unavailable

4

HOOK A

GA7-65772-00-00

$8.81

5

RIVET (EU0)

90267-48938-00

$4.85

6

HOSE, EXHAUST

F3X-U7555-00-00

$54.40

7

HOSE CLAMP ASSY

90450-99801-00

$4.01

8

HOSE CLAMP ASSY

90450-99804-00

$4.51

9

PILOT, WATER

F2C-U753B-01-00

$2.58

10

GASKET

F2C-U7564-02-00

$4.63

11

NUT

F2C-U2733-00-00

$2.00

12

CLIP

90467-150A5-00

$2.56

13

TANK, WATER

F3X-U4261-00-00

$67.63

14

PAD, BATTERY

F1S-U8221-00-00

$2.88

15

HOSE,EXHAUST 3

F3X-U758D-00-00

Unavailable

16

BASE, CLAMP

F1W-U828M-00-00

$1.29

17

CLAMP

90464-32801-00

$1.29

18

RIVET, BLIND

90267-48806-00

$2.16

19

PLATE

F1S-U757B-01-00

Unavailable

20

VALVE, EXHAUST

F1B-U751G-10-00

Unavailable

21

NUT, LOCK

F2N-U142L-00-00

$1.43
