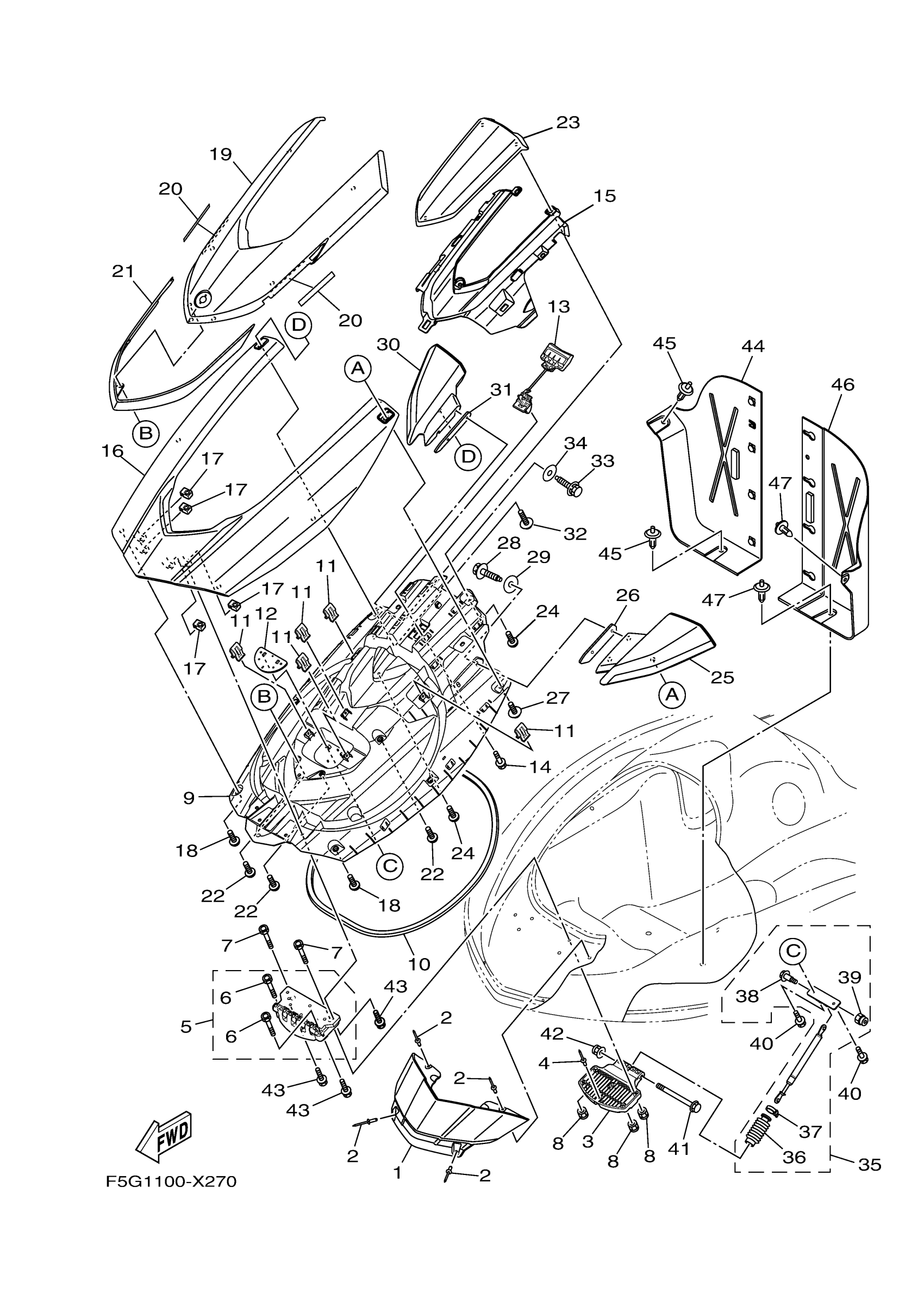

Yamaha FX1800DC (FX LIMITED SVHO) F5GH 2026 ENGINE HATCH 2 Diagram

#

Description
Price

1

COVER, FRONT (LGB)

F3X-U513M-02-98

$87.86

2

RIVET, BLIND

90267-489U6-00

$1.37

3

PLATE, HINGE LID

F3X-U518E-00-00

$21.95

4

RIVET, BLIND

90267-48806-00

$2.00

5

HINGE, LID

F3X-U517D-01-00

$28.77

6

BOLT

F3X-U3222-00-00

$0.72

7

BOLT

F3X-U3222-00-00

$0.72

8

NUT, LOCK

F2N-U142L-00-00

$1.00

9

INNER, ENGINE HATCH

F5G-U519G-02-00

$113.62

10

PACKING 1

F3X-U2663-10-00

Unavailable

11

CLIP

F3Y-U153K-00-00

$1.29

12

PLATE, HATCH

F3X-U5148-00-00

$7.35

13

LOCK, LID

F3X-U517C-00-00

$27.27

14

BOLT, WITH WASHER (EW3)

90119-05912-00

$4.09

15

OUTER, ENGINE HATCH

F5G-U519F-00-00

$29.53

16

LID, ENGINE ROOM (LGB)

F5G-U517B-01-98

$171.16

17

NUT

F3X-U517E-00-00

$1.23

18

SCREW

F2S-U13C1-00-00

$2.36

19

VISOR (LGB)

F5G-U515N-02-98

Unavailable

20

DAMPER 2

F0X-U515E-02-00

Unavailable

21

ORNAMENT, CENTER

F5G-U517V-40-00

$45.44

22

SCREW

F2S-U13C1-00-00

$2.36

23

VISOR, 2

F5G-U515P-01-00

$12.20

24

SCREW

F2S-U13C1-00-00

$2.36

25

MIRROR ASSY 1

F5G-U590D-20-00

Unavailable

26

PLATE

F5G-U5193-00-00

$3.79

27

SCREW

F5G-U6829-09-00

Unavailable

28

BOLT, WITH WASHER

90119-06820-00

$3.52

29

WASHER, PLATE

90201-068G0-00

$0.93

30

MIRROR ASSY 2

F5G-U590E-20-00

Unavailable

31

PLATE

F5G-U5193-00-00

$3.79

32

SCREW

F5G-U6829-09-00

Unavailable

33

BOLT, WITH WASHER

90119-06820-00

$3.52

34

WASHER, PLATE

90201-068G0-00

$0.93

35

DAMPER ASSY

F2S-6514S-00-00

$259.08

36

. COVER, DAMPER

F1W-6514T-00-00

$23.99

37

BAND

1UA-82591-00-00

Unavailable

38

BOLT

90109-06218-00

$10.49

39

NUT, SELF-LOCKING

95720-06300-00

$1.82

40

BOLT, WITH WASHER

90119-06830-00

Unavailable

41

BOLT, SPECIAL

F3X-U491K-00-00

$2.27

42

NUT, LOCK

F3Y-U142L-00-00

$2.52

43

BOLT, WITH WASHER

90119-06896-00

$5.03

44

LOCKER,BOW

F3X-U475B-00-00

$23.47

45

RIVET

F4P-U1454-00-00

$1.06

46

PLATE, LOKER BOW

F3X-U475F-00-00

$23.47

47

RIVET

F4P-U1454-00-00

$1.06
