- FX1800DB (SVHO WITH AUDIO) F5GE 2025
CRANKSHAFT & PISTON

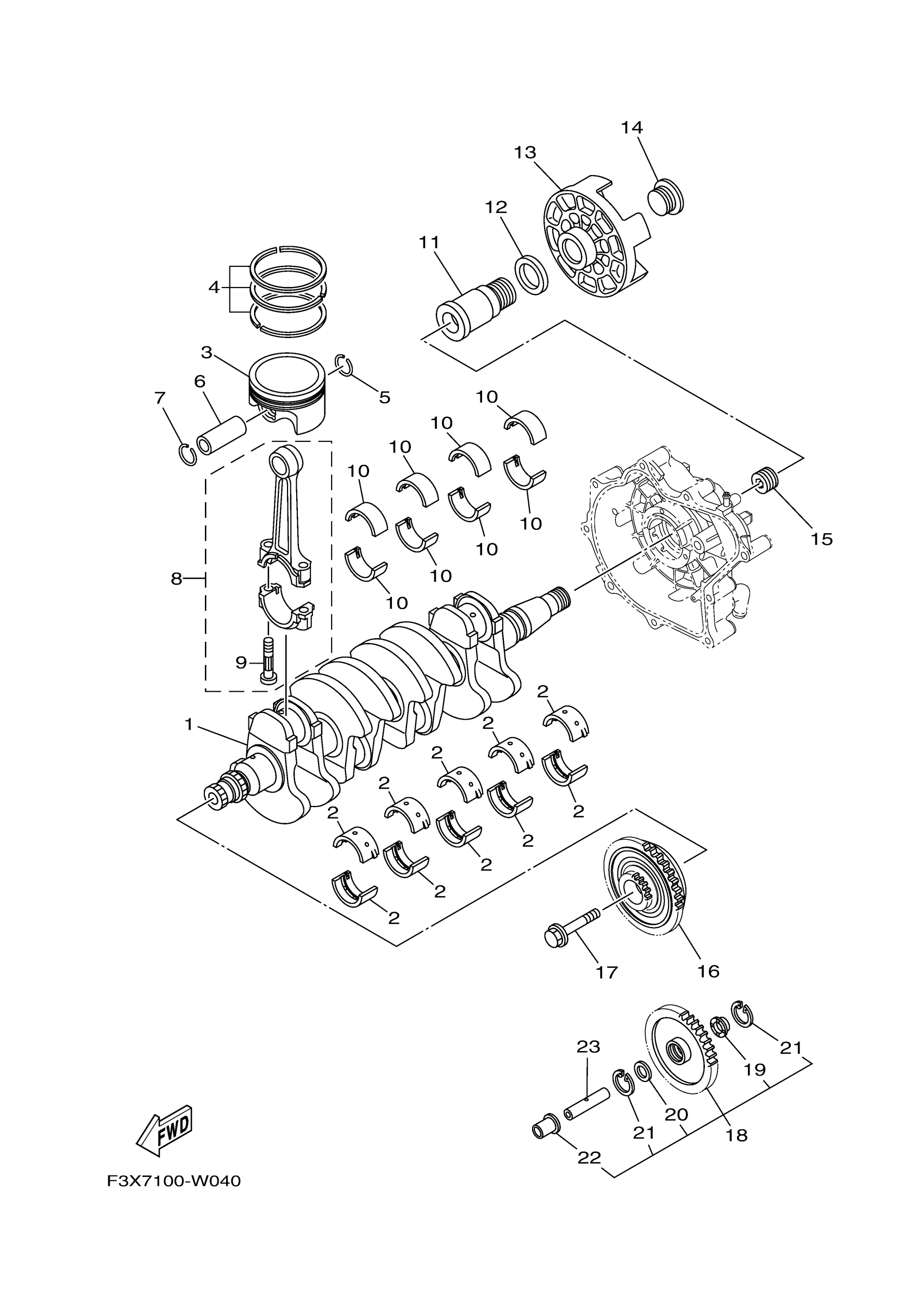

Yamaha FX1800DB (SVHO WITH AUDIO) F5GE 2025 CRANKSHAFT & PISTON Diagram
#
1
CRANKSHAFT
6LE-11411-00-00
$2,724.99
2
PLANE BEARING, CRA
6LE-11416-00-00
$20.99
2
PLANE BEARING, CRA
6LE-11416-10-00
$20.99
2
PLANE BEARING, CRA
6LE-11416-20-00
$20.99
2
PLANE BEARING, CRA
6LE-11416-30-00
$20.99
2
PLANE BEARING, CRA
6LE-11416-40-00
$20.99
3
PISTON (STD)
6ET-11631-01-B0
Unavailable
4
PISTON RING SET (STD)
6S5-11603-01-00
Unavailable
5
CIRCLIP
93450-22174-00
Unavailable
6
PIN, PISTON
6ET-11633-00-00
Unavailable
7
CIRCLIP
93450-22174-00
Unavailable
8
CONNECTING ROD ASSY
6S5-11650-10-00
Unavailable
9
. BOLT, CONNECTING ROD
6S5-11654-10-00
Unavailable
10
PLANE BEARING, CON
6LE-11656-00-00
$22.99
10
PLANE BEARING, CON
6LE-11656-10-00
$22.99
10
PLANE BEARING, CON
6LE-11656-20-00
Unavailable
10
PLANE BEARING, CON
6LE-11656-30-00
Unavailable
11
SHAFT, TRANSFER
6S5-17572-01-00
Unavailable
12
WASHER
6S5-12289-00-00
Unavailable
13
FLANGE, COUPLING
6S5-45813-01-00
Unavailable
14
HOLDER 2
6S5-17525-01-00
Unavailable
15
NUT, SPECIAL
6S5-11459-01-00
Unavailable
16
GEAR UNIT ASSY
6ET-17800-10-00
Unavailable
17
BOLT
6S5-17031-00-00
Unavailable
18
. DRIVE GEAR & COLLAR SET (18T)
6S5-W1783-20-00
Unavailable
19
. WASHER, THRUST
6S5-17529-00-00
Unavailable
20
WASHER, PLATE
90201-13013-00
Unavailable
21
. CIRCLIP
99009-24700-00
Unavailable
22
. COLLAR, GEAR
6S5-17585-10-00
Unavailable
23
SHAFT, MIDDLE DRIVEN
6S5-17553-00-00
Unavailable
