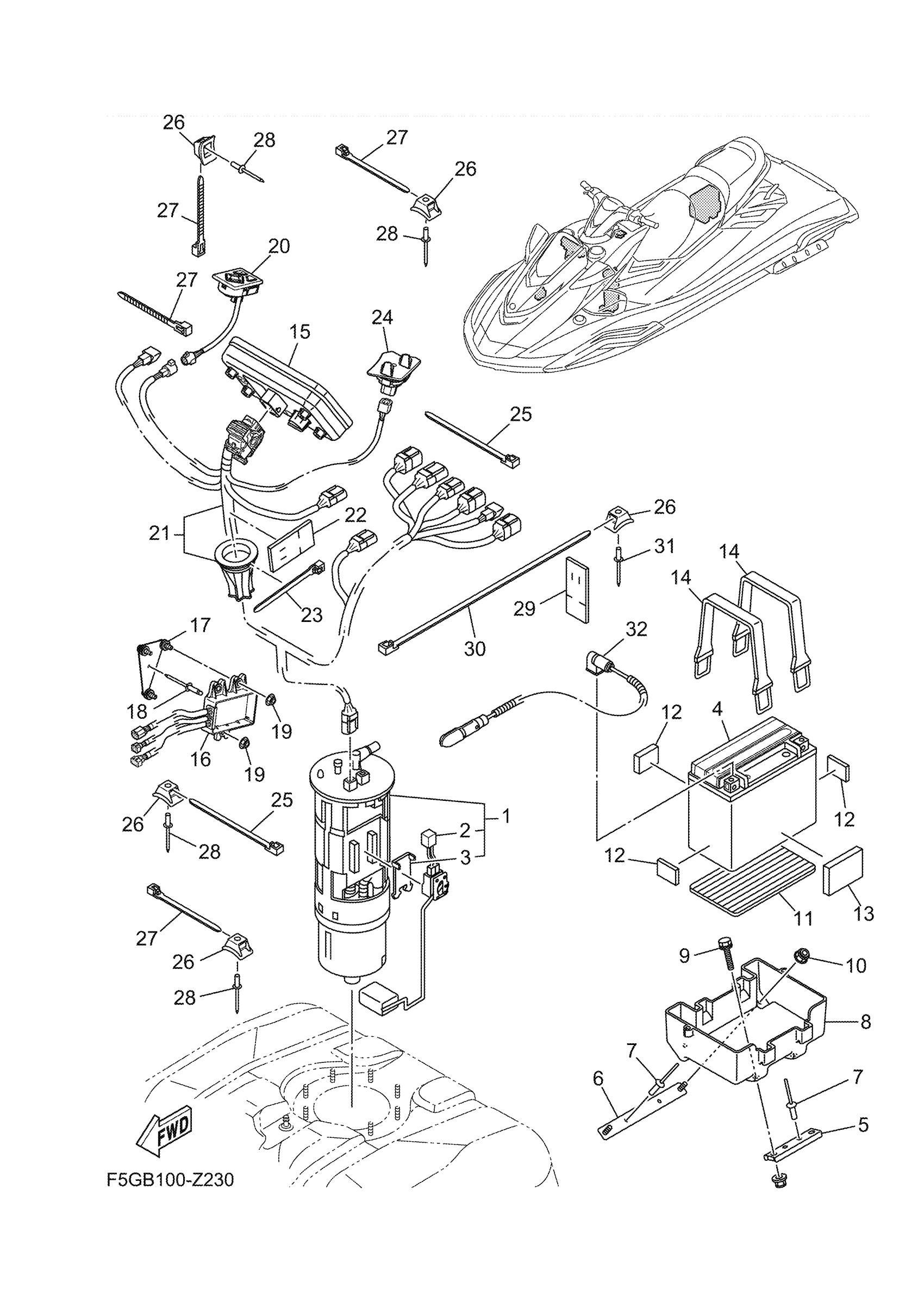

Yamaha FX1800DA (SVHO WITH AUDIO) F5GB 2024 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

6S5-13907-05-00

$1,050.38

2

FUEL SENDER ASSY

6S5-682E0-10-00

Unavailable

3

DAMPER, STOPPER

60E-82556-10-00

$18.49

4

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$163.95

5

PLATE, BASE 2

F2S-U8592-00-00

$5.83

6

PLATE, BASE 3

F2S-U8593-00-00

$5.45

7

RIVET (EU0)

90267-48938-00

$5.00

8

CASE, BATTERY

F2S-U8211-00-00

$9.62

9

BOLT, WITH WASHER

90119-06820-00

$3.52

10

NUT, LOCK

F2N-U142L-00-00

$1.00

11

PAD, BATTERY

F1S-U8221-00-00

$2.75

12

PAD, BATTERY

EU0-U8221-31-00

$1.65

13

PACKING

F7K-U1743-00-00

$2.65

14

BAND, BATTERY 1

F4P-U821D-00-00

$12.20

15

METER ASSY

F7K-U820A-00-00

Unavailable

16

CONVERTING UNIT

F5G-HA260-00-00

$492.65

17

BRACKET

F5G-U826C-00-00

$13.62

18

RIVET (EU0)

90267-48938-00

$5.00

19

NUT, LOCK

F2N-U142L-00-00

$1.00

20

SWITCH ASSY.

F5G-U8090-01-00

Unavailable

21

WIRE HARNESS,1

F5G-U0891-00-00

$295.44

22

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

23

CLAMP

90464-32801-00

$1.23

24

MIC ASSY

F5G-U827A-00-00

$553.85

25

CLAMP

90464-32801-00

$1.23

26

BASE, CLAMP

F1W-U828M-00-00

$1.23

27

CLAMP

90464-32801-00

$1.23

28

RIVET, BLIND

90267-48806-00

$2.00

29

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

30

CLAMP

F5G-U4256-00-00

$5.91

31

RIVET, BLIND

90267-48806-00

$2.00

32

WIRE, MINUS LEAD

6JP-82116-00-00

$65.14
