Partiron

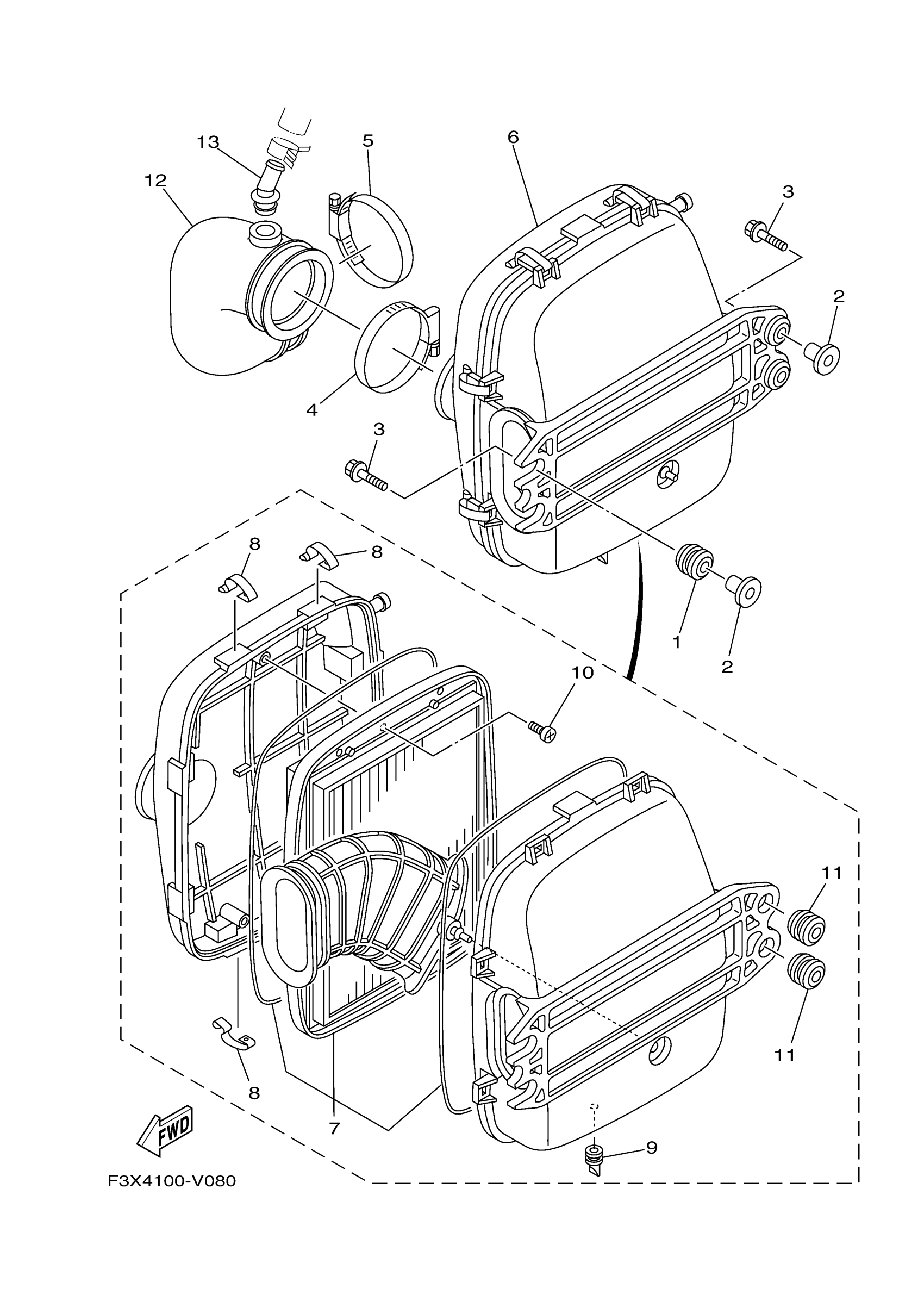

Yamaha FX1800CX (FX CRUISER SVHO WAUDIO_FX CRUISER SVHO) F5G3 2022 INTAKE 3 Diagram

#

Description
Price

1

GROMMET

90480-22M15-00

$10.18

2

COLLAR

90387-08M37-00

$9.81

3

BOLT, WITH WASHER

90119-08187-00

$3.17

4

HOSE CLAMP ASSY

90450-90002-00

$16.99

5

HOSE CLAMP ASSY

90450-90002-00

$16.99

6

AIR CLEANER ASSY.

6S5-E4410-02-00

$174.23

7

ELEMENT, AIR CLEAN

6S5-E4451-01-00

$166.59

8

. HOOK

6S5-E4436-00-00

$3.79

9

. RUBBER, SEAL 2

6S5-G2717-00-00

$2.58

10

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

$2.05

11

. GROMMET

90480-22801-00

$2.73

12

PIPE

6S5-E4419-00-00

$77.26

13

CONNECTION

6S5-R1142-10-00

$48.47
