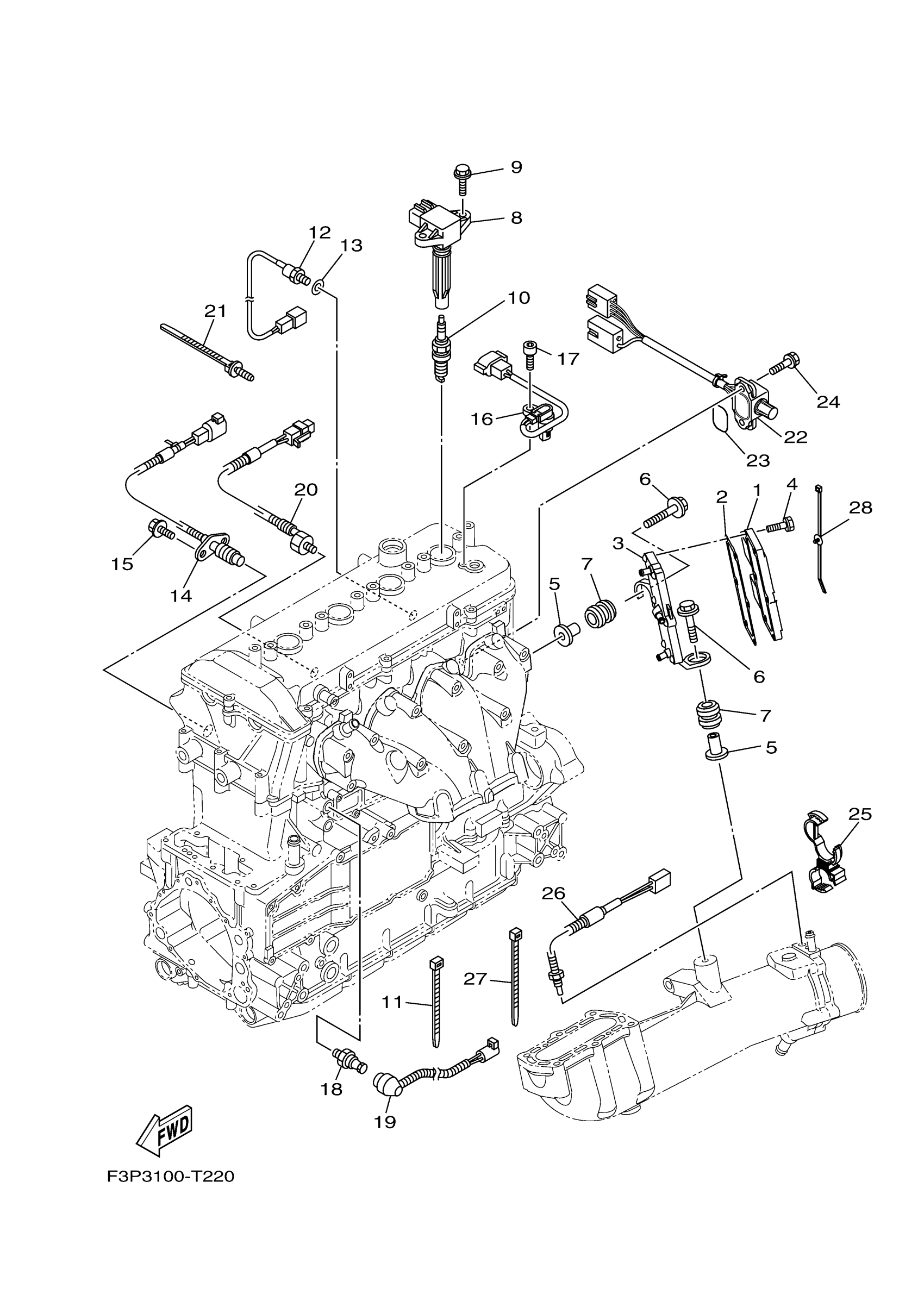

Yamaha FX1800CX (FX CRUISER SVHO WAUDIO_FX CRUISER SVHO) F5G3 2022 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

6EK-81960-10-00

$197.13

2

PLATE, RECTIFIER FITTING

6ET-81975-01-00

$6.36

3

COVER, RECTIFIER

6ET-81972-00-00

$116.65

4

BOLT, WITH WASHER

90119-06MA4-00

$3.26

5

COLLAR

90387-08M37-00

$9.81

6

BOLT, WITH WASHER

90119-08187-00

$3.17

7

GROMMET

90480-22M15-00

$10.18

8

IGNITION COIL ASSY

6S5-82310-10-00

$263.06

9

BOLT,FLANGE (EW2)

90105-06903-00

$5.00

10

PLUG, SPARK (NGK LFR7A)

LFR-7A000-00-00

$11.89

11

CLAMP(3XW)

90464-35132-00

$6.77

12

THERMOSENSOR ASSY

61A-85790-01-00

$121.46

13

WASHER, PLATE

92990-10600-00

$2.57

14

THERMO SWITCH ASSY

6CR-82560-00-00

$72.41

15

BOLT, HEXAGON W/W DEEP RECESS

97E95-06516-00

$3.93

16

SENSOR, CAM POSITION

60E-85896-02-00

$159.08

17

BOLT,SOCKET

91380-06016-00

Unavailable

18

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

$62.91

19

LEAD WIRE ASSY

6S5-81315-01-00

$51.50

20

SENSOR, KNOCK

6AN-85780-01-00

$255.95

21

CLAMP

90464-20005-00

$2.11

22

EARTH PLATE COMP.

6CS-8273J-11-00

$180.29

23

O-RING (341)

93210-32172-00

Unavailable

24

BOLT, WITH WASHER

90119-06MA3-00

$2.80

25

CLAMP

90464-20008-00

Unavailable

26

THERMOSENSOR ASSY

6AA-85790-00-00

$104.60

27

CLAMP

90464-20005-00

$2.11

28

CLAMP

90464-31002-00

Unavailable
