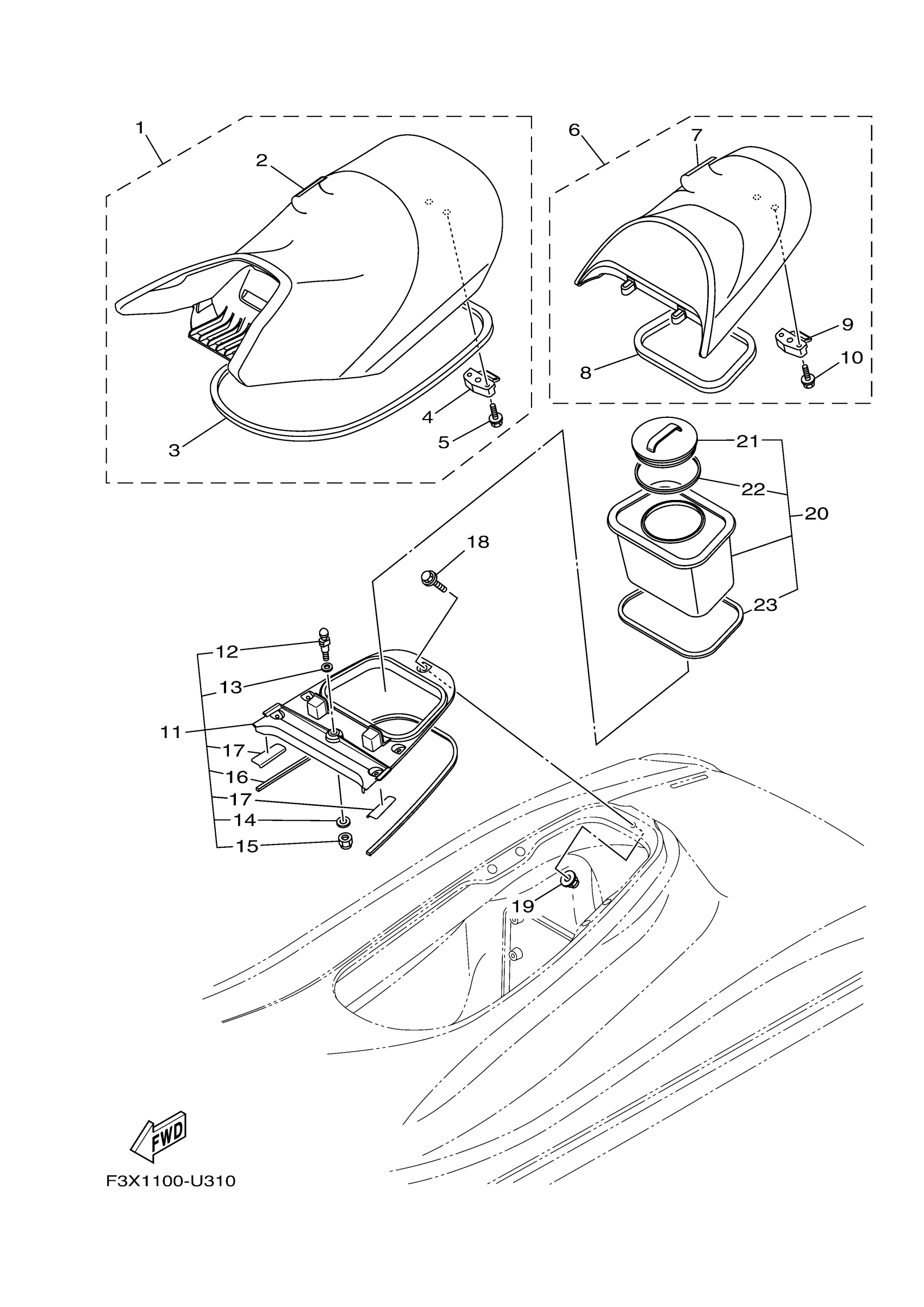

Yamaha FX1800BY (CRUISER SVHO WAUDIO) F5G7 2023 SEAT & UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

F3X-U371A-R0-00

$403.02

1

DOUBLE SEAT ASSY

F3X-U371A-S0-00

$393.92

2

COVER, SEAT 1

F3X-U371B-R0-00

$283.32

2

COVER, SEAT 1

F3X-U371B-S0-00

$310.59

3

. PACKING

F3X-U2664-01-00

$65.14

4

. SEAT LOCK ASSY

F2C-U3850-00-00

$22.97

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

SINGLE SEAT ASSY

F3X-U372A-R0-00

$215.14

6

SINGLE SEAT ASSY

F3X-U372A-S0-00

$225.74

7

COVER, SEAT

F3X-U372B-R0-00

$163.62

7

COVER, SEAT

F3X-U372B-S0-00

$163.62

8

. PACKING 5

F3X-U266D-01-00

$54.53

9

. SEAT LOCK ASSY

F2C-U3850-00-00

$22.97

10

BOLT, WITH WASHER

90119-06808-00

$2.16

11

DECK BEAM ASSY

F2S-U890L-05-00

$53.02

12

PIN

GH1-U3774-00-00

$19.38

13

WASHER, PLATE

90201-109U6-00

$3.29

14

WASHER

9299R-10200-00

$1.63

15

NUT, NYLON

9572R-10300-00

$3.37

16

. PACKING 1

F2S-U375E-00-00

$4.24

17

. PACKING

F2S-U8244-00-00

$1.52

18

BOLT, WITH WASHER

90119-08828-00

$2.30

19

NUT, LOCK

F3Y-U142L-00-00

$2.52

20

CASE,ASSY 1

F2C-U591A-03-00

$46.95

21

. CAP,CASE

F2C-U591C-00-00

$5.67

22

. PACKING,CASE

F2C-U591D-01-00

$1.63

23

. PACKING,6

F2C-U266E-00-00

$14.35
