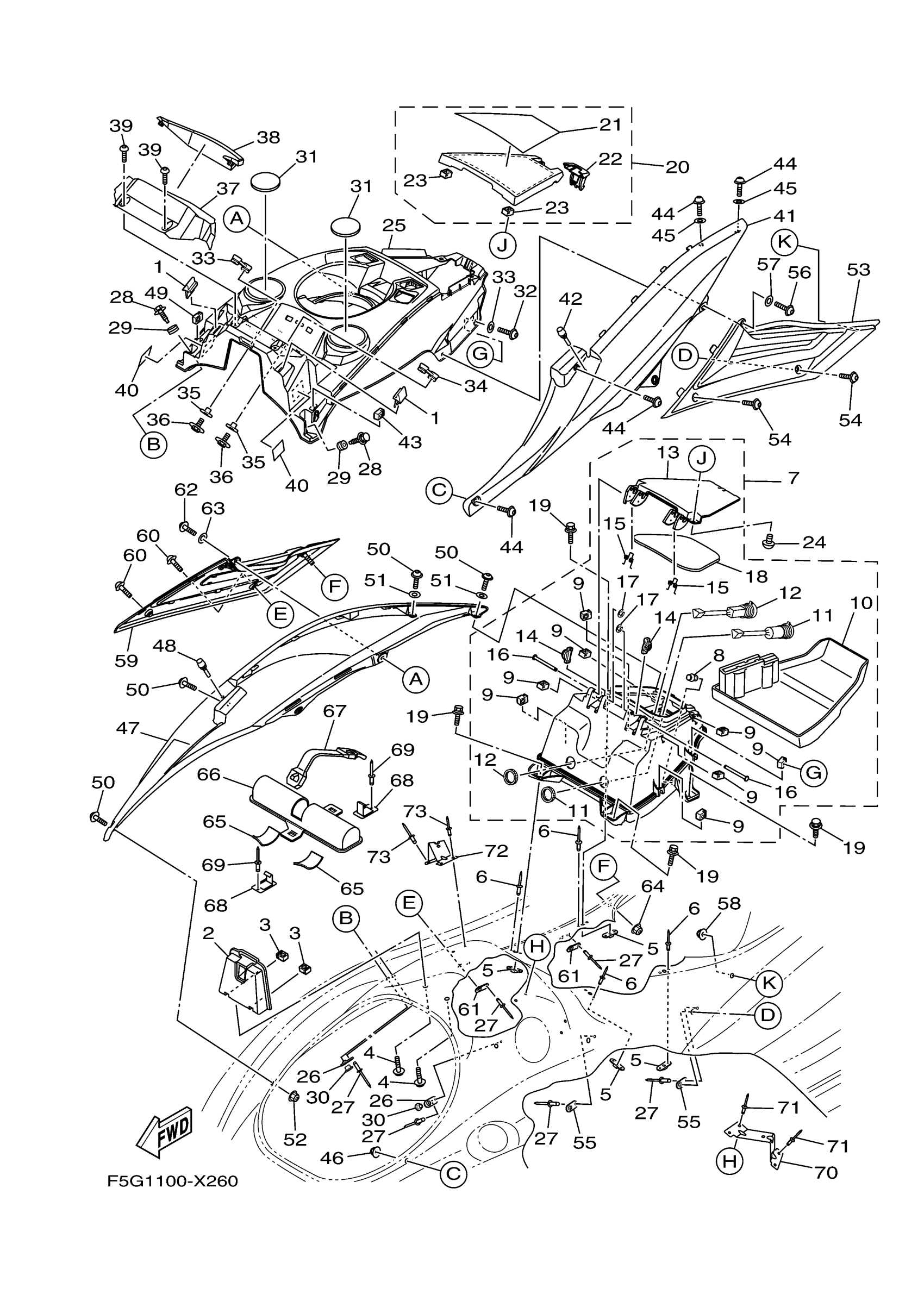

Yamaha FX1800BY (CRUISER SVHO WAUDIO) F5G7 2023 ENGINE HATCH 1 Diagram

#

Description
Price

1

PACKING 4

F1K-U266C-10-00

$2.27

2

HOOK,LID LOCK

F5G-U517F-02-00

$16.65

3

NUT

F3X-U517E-00-00

$1.23

4

BOLT, WITH WASHER

90119-06880-00

$3.52

5

BRACKET

F2C-U826C-00-00

$3.79

6

RIVET 1

F4P-U516R-01-00

$4.87

7

GLOVE BOX HATCH ASSY

F5G-U1708-01-00

$330.29

8

. SEAL

F3X-U2723-00-00

$2.16

9

NUT

F3X-U517E-00-00

$1.23

10

INNER, CASE

F5G-U591L-00-00

$69.68

11

TERMINAL COMP.

F5G-H254B-00-00

$28.02

12

PLUG, USB

F5G-H21E1-00-00

$81.80

13

HING,HATCH 1

F5G-U2811-01-00

$24.98

14

GEAR ASSY

F5G-U0210-00-00

$9.08

15

SPRING, TORSION

F5G-U1395-01-00

Unavailable

16

PIN, HINGE

F5G-U517R-00-00

Unavailable

17

. E-RING

F5G-U515C-00-00

$1.67

18

PACKING CASE

F5G-U519D-01-00

Unavailable

19

BOLT, WITH WASHER

90119-08828-00

$2.30

20

GLOVE BOX COVER ASSY

F5G-U4705-01-00

$51.50

21

. LABEL, WARNING UNIFORM 1

F5G-U41B1-00-00

Unavailable

22

. LOCK

F4N-U2875-00-00

$3.95

23

NUT

F3X-U517E-00-00

$1.23

24

BOLT, HEXAGON SOCKET BUTTON

90111-06873-00

$5.03

25

COVER, CENTER

F5G-U5554-02-00

$79.28

26

PLATE, FIX

F2X-U5175-00-00

$1.80

27

RIVET (EU0)

90267-48938-00

$5.00

28

BOLT, WITH WASHER

90119-06820-00

$3.52

29

DAMPER 1

F5G-U828E-00-00

$1.97

30

COLLAR

F5G-U2119-00-00

$5.68

31

MAT

F5G-U3844-00-00

$2.95

32

SCREW

F3X-U7823-12-00

$1.25

33

WASHER, PLATE

90201-06805-00

$0.61

34

GROMMET

F3X-U1338-00-00

$1.67

35

COLLAR

F3X-U151R-00-00

$1.14

36

BOLT

F3X-U1355-00-00

$0.83

37

COVER METER

F5G-U8262-01-00

$18.92

38

ORNAMENT, METER

F5G-U826F-01-00

$45.44

39

SCREW

F2S-U13C1-00-00

$2.36

40

PACKING

F2C-U1743-00-00

$1.87

41

COVER,SIDE 1 (RM9)

F5G-U377B-01-P1

$166.65

41

COVER,SIDE 1 (SSA)

F5G-U377B-01-P5

Unavailable

42

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

43

NUT

F3X-U517E-00-00

$1.23

44

SCREW

F3X-U7823-12-00

$1.25

45

WASHER, PLATE

90201-06805-00

$0.61

46

NUT, LOCK

F2N-U142L-00-00

$1.00

47

COVER,SIDE 2 (RM9)

F5G-U377C-01-P1

$165.04

47

COVER,SIDE 2 (SSA)

F5G-U377C-01-P5

Unavailable

48

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

49

NUT

F3X-U517E-00-00

$1.23

50

SCREW

F3X-U7823-12-00

$1.25

51

WASHER, PLATE

90201-06805-00

$0.61

52

NUT, LOCK

F2N-U142L-00-00

$1.00

53

SIDE ORNAMENT ASSY 1

F3X-U370J-20-00

$57.56

53

SIDE ORNAMENT ASSY

F3X-U370J-G0-00

Unavailable

54

SCREW

F3X-U7823-02-00

$1.37

55

PLATE, FIX

F2X-U5175-00-00

$1.80

56

SCREW

F3X-U7823-12-00

$1.25

57

WASHER, PLATE

90201-06805-00

$0.61

58

NUT, LOCK

F2N-U142L-00-00

$1.00

59

SIDE ORNAMENT ASSY 2

F3X-U370K-20-00

$57.56

59

SIDE ORNAMENT ASSY

F3X-U370K-G0-00

Unavailable

60

SCREW

F3X-U7823-02-00

$1.37

61

PLATE, FIX

F2X-U5175-00-00

$1.80

62

SCREW

F3X-U7823-12-00

$1.25

63

WASHER, PLATE

90201-06805-00

$0.61

64

NUT, LOCK

F2N-U142L-00-00

$1.00

65

MAT 2

F1K-U759C-00-00

$1.72

66

BOX, FIRE EXTINGUISHER

F1K-U5983-01-00

$17.94

67

BAND 1

F2P-U828K-00-00

$5.87

68

HOOK A

F1K-U5772-04-00

$6.29

69

RIVET (EU0)

90267-48938-00

$5.00

70

RFM.,DASH BOARD 1

F5G-U974A-00-00

$6.89

71

RIVET 1

F4P-U516R-01-00

$4.87

72

RFM.,DASH BOARD 2

F5G-U974B-00-00

$6.89

73

RIVET 1

F4P-U516R-01-00

$4.87
