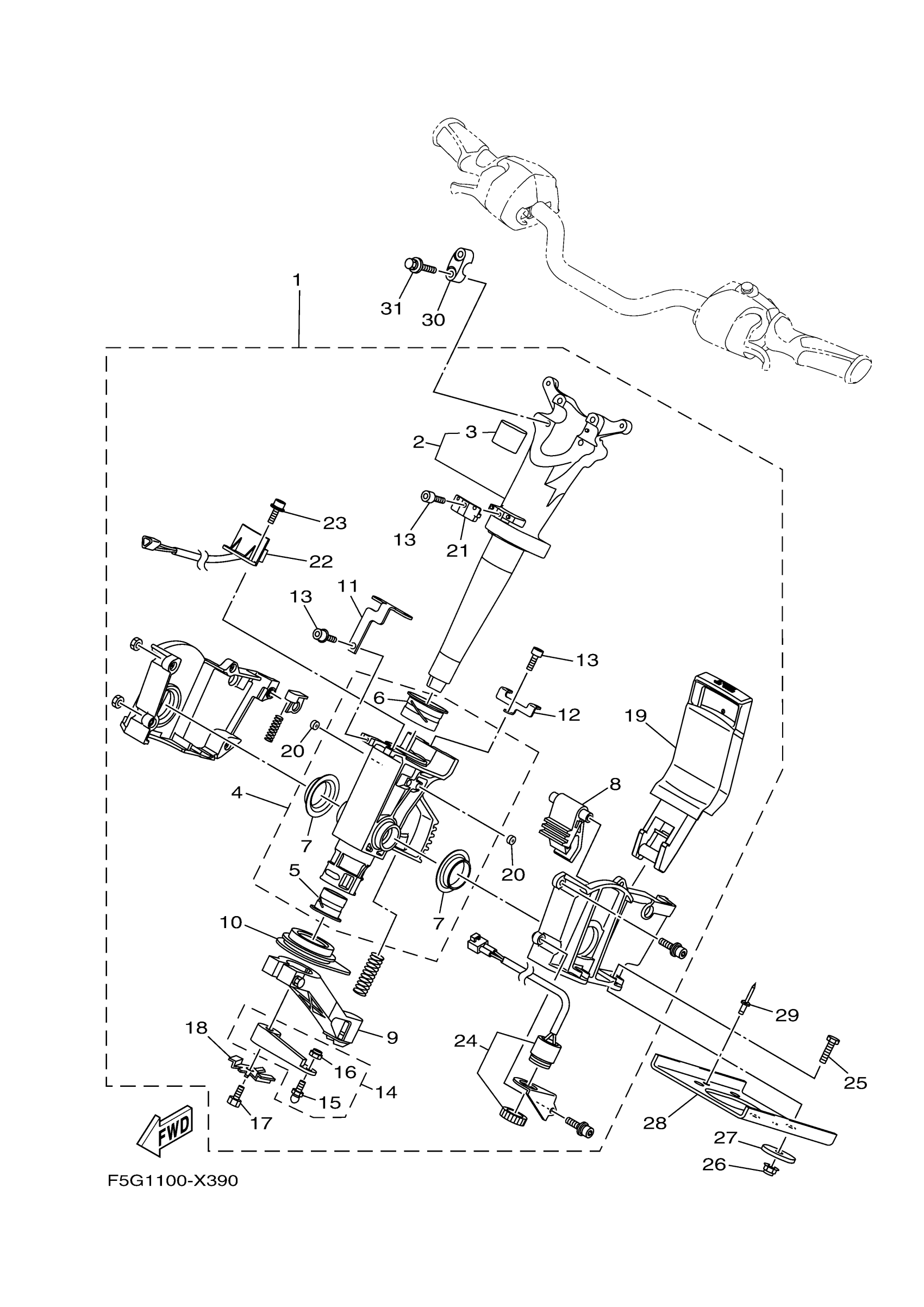

Yamaha FX1800BC (FX LIMITED SVHO) F5GG 2026 STEERING 2 Diagram

#

Description
Price

1

STEERING MASTER AS

F5G-61400-01-00

$2,110.28

2

. SHAFT ASSY

F5G-67410-00-00

$536.75

3

.. PIPE, SEAL

F4P-61435-00-00

$16.90

4

. TUBE

F4P-6773D-00-00

$361.75

5

.. BUSH

F1S-6134M-00-00

$10.28

6

. BUSH

F2C-6134M-00-00

$10.99

7

.. BUSH

F1S-6134M-10-00

$10.28

8

. LOCK 1

F1S-61782-00-00

Unavailable

9

. CABLE STOPPER ASSY

F1S-6146A-00-00

$126.46

10

. SEAL, RUBBER

F1S-6143C-00-00

$33.81

11

. STAY 1

F5G-65938-00-00

$20.57

12

. STAY 2

F5G-65939-00-00

$19.10

13

SCREW

F4P-613C1-10-00

Unavailable

14

ARM ASSY.

F1S-6153R-02-00

$88.22

15

STUD, JOINT BALL

EU0-61461-02-00

$11.01

16

NUT, SELF-LOCKING

95720-06300-00

$1.76

17

BOLT

F1W-61355-10-00

Unavailable

18

. PLATE, RETAINING

F1W-6142B-00-00

$18.37

19

. LEVER ASSY

F2S-6151M-00-00

Unavailable

20

. PLUG

F1W-6358B-00-00

$19.10

21

MAGNET

F2X-6838C-01-00

$25.72

22

SENSOR, MAGNET

F2X-6838B-02-00

$130.87

23

BOLT

F1W-61516-10-00

Unavailable

24

BUZZER

F1S-68341-00-00

$110.28

25

BOLT

90101-08069-00

$4.41

26

NUT, LOCK

F3Y-U142L-00-00

$2.66

27

WASHER

F1W-U725E-00-00

$11.01

28

PLATE, RETAINING

F1X-U1554-00-00

$52.93

29

RIVET, BLIND

90267-489U6-00

Unavailable

30

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.09

31

BOLT, WITH WASHER

90119-089U1-00

$3.37
