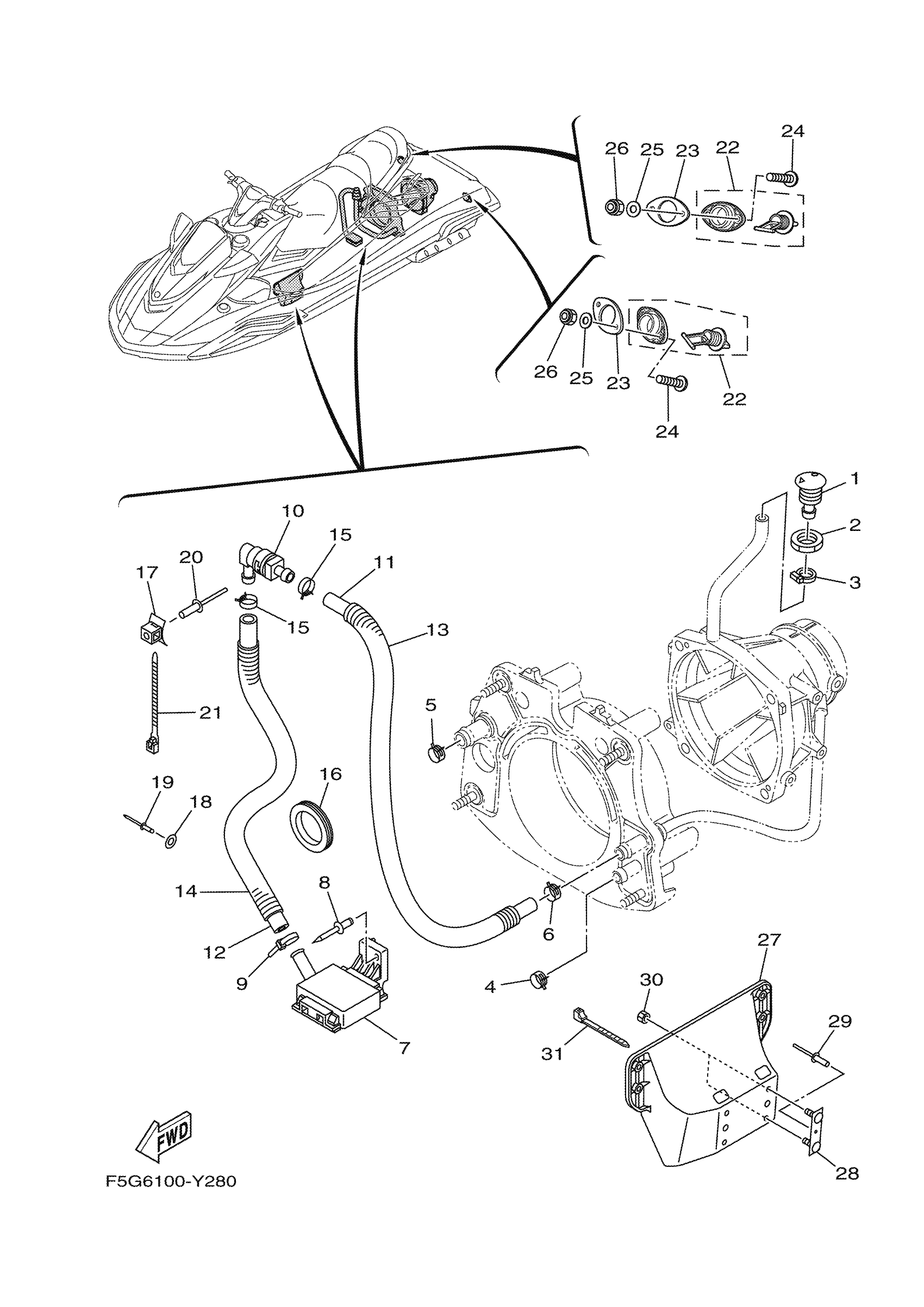

Yamaha FX1800BB (CRUIS SVHO WAUDI) F5GD 2025 HULL & DECK Diagram

#

Description
Price

1

SPOUT

F1W-U269B-00-00

$1.80

2

NUT

EU0-61652-00-00

$11.48

3

BAND, HOSE 18

90601-118UF-00

$2.07

4

CLIP

90467-200A3-00

$5.92

5

CLIP

90467-240A3-00

$2.69

6

CLIP

90467-190A2-00

$3.18

7

STRAINER, BILGE

F1B-U761D-02-00

$5.15

8

RIVET, BLIND

90267-489U8-00

$0.99

9

BAND

90601-200U1-00

$2.77

10

JOINT, HOSE

68N-5112T-00-00

$48.96

11

HOSE (L860)

90445-20804-00

$12.86

12

HOSE (L500)

90445-20800-00

$12.86

13

HOSE

90446-27M73-00

$18.83

14

HOSE(63M)

90446-27M55-00

$14.36

15

CLIP

90467-190A2-00

$3.18

16

GROMMET

F4F-U1338-00-00

$3.64

17

BASE, CLAMP

F1W-U828M-00-00

$1.23

18

WASHER

9299R-05200-00

$3.16

19

RIVET, BLIND

90267-48806-00

$2.00

20

RIVET, BLIND

90267-48802-00

$1.98

21

CLAMP

90464-32801-00

$1.23

22

DRAIN PLUG ASSY

F1S-U2280-02-00

$12.20

23

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

24

SCREW, PAN HEAD

9788R-05025-00

$2.52

25

WASHER

9299R-05200-00

$3.16

26

NUT, FLANGE

9572R-05300-00

$1.43

27

BRACKET 2

F1W-U8572-01-00

$48.47

28

BRACKET

F1K-U826C-03-00

$12.86

29

RIVET (EU0)

90267-48938-00

$5.00

30

NUT, LOCK

F3Y-U142L-00-00

$2.52

31

CLAMP

90464-32801-00

$1.23
