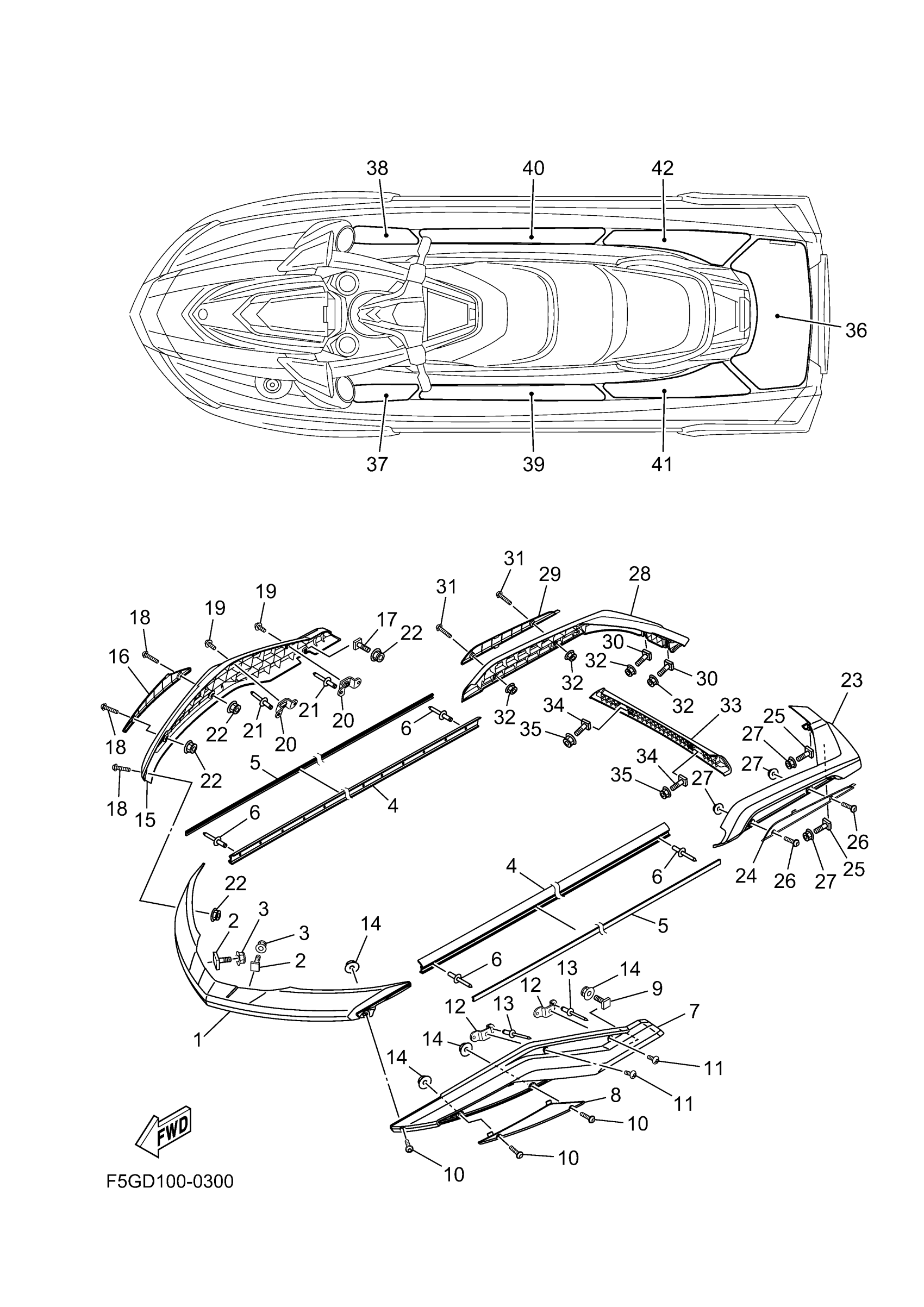

Yamaha FX1800BB (CRUIS SVHO WAUDI) F5GD 2025 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F3X-U2511-01-00

$28.34

1

GUNWALE, BOW

F3X-U2511-11-00

$37.98

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

GUNWALE, SIDE

F3X-U2512-00-00

$25.36

4

GUNWALE, SIDE

F3X-U2512-10-00

$26.10

5

INNER,GUNWALE

F3X-U2519-20-00

$17.90

5

INNER,GUNWALE

F3X-U2519-80-00

$30.13

6

RIVET

F7K-U1454-00-00

$4.66

7

JOINT, GUNWALE LH

F3X-U252E-00-00

$27.60

7

JOINT, GUNWALE LH

F3X-U252E-10-00

$39.53

8

GUNWALE INSIDE

F3X-U2514-00-00

$11.48

8

GUNWALE INSIDE

F3X-U2514-20-00

$11.93

9

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

10

SCREW

F3X-U7823-12-00

$1.25

11

SCREW

F7K-U8198-00-00

Unavailable

12

BRACKET

F3X-U4949-00-00

$2.66

13

RIVET, BLIND

90267-489U6-00

Unavailable

14

NUT, LOCK

F2N-U142L-00-00

$1.00

15

JOINT, GUNWALE RH

F3X-U252F-00-00

$27.60

15

JOINT, GUNWALE RH

F3X-U252F-10-00

$39.53

16

GUNWALE INSIDE

F3X-U2514-10-00

$11.48

16

GUNWALE INSIDE

F3X-U2514-30-00

$11.93

17

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

18

SCREW

F3X-U7823-12-00

$1.25

19

SCREW

F7K-U8198-00-00

Unavailable

20

BRACKET

F3X-U4949-00-00

$2.66

21

RIVET, BLIND

90267-489U6-00

Unavailable

22

NUT, LOCK

F2N-U142L-00-00

$1.00

23

GUNWALE, STERN 1

F3X-U251D-00-00

$24.61

23

GUNWALE, STERN 1

F3X-U251D-10-00

$31.33

24

INNER GUNWALE, AFT

F3X-U255C-00-00

$5.07

24

INNER GUNWALE, AFT

F3X-U255C-20-00

$8.19

25

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

26

SCREW

F3X-U7823-12-00

$1.25

27

NUT, LOCK

F2N-U142L-00-00

$1.00

28

GUNWALE, STERN 2

F3X-U251E-00-00

$24.61

28

GUNWALE, STERN 2

F3X-U251E-10-00

$31.33

29

INNER GUNWALE, AFT

F3X-U255C-10-00

$5.07

29

INNER GUNWALE, AFT

F3X-U255C-30-00

$8.19

30

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

31

SCREW

F3X-U7823-12-00

$1.25

32

NUT, LOCK

F2N-U142L-00-00

$1.00

33

COVER, GUNWALE 1

F3X-U252C-01-00

$10.75

33

COVER, GUNWALE 1

F3X-U252C-11-00

$16.40

34

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

35

NUT, LOCK

F2N-U142L-00-00

$1.00

36

MAT, UPPER

F3X-U3581-01-00

$71.63

37

MAT, STEP 1

F7K-U351H-00-00

Unavailable

38

MAT, STEP 2

F7K-U351J-00-00

$29.09

39

MAT, STEP 3

F3X-U351K-00-00

$44.76

40

MAT, STEP 4

F3X-U351M-00-00

$44.76

41

MAT, STEP 5

F3X-U351N-00-00

$46.25

42

MAT, STEP 6

F3X-U351P-00-00

$46.25
