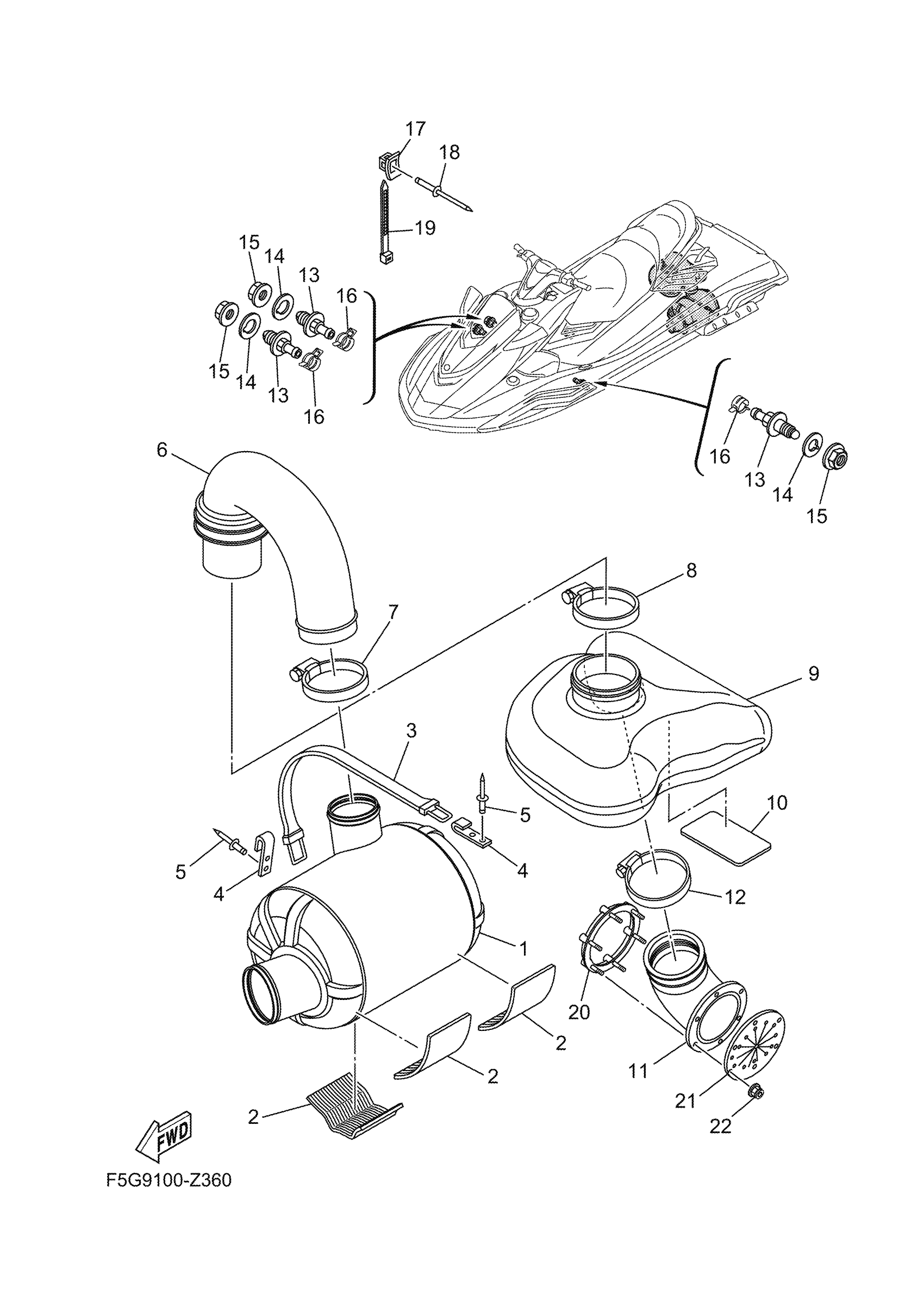

Yamaha FX1800BB (CRUIS SVHO WAUDI) F5GD 2025 EXHAUST 3 Diagram

#

Description
Price

1

WATER LOCK COMP.

F4P-U7550-00-00

$317.90

2

PAD, BATTERY

F1S-U8221-00-00

$2.88

3

BAND, FUEL TANK

EW2-67821-00-00

$29.25

4

HOOK A

GA7-65772-00-00

$8.94

5

RIVET (EU0)

90267-48938-00

$4.72

6

HOSE, EXHAUST

F3X-U7555-00-00

$55.21

7

HOSE CLAMP ASSY

90450-99801-00

$4.01

8

HOSE CLAMP ASSY

90450-99804-00

$4.51

9

TANK, WATER

F3X-U4261-00-00

$68.21

10

PAD, BATTERY

F1S-U8221-00-00

$2.88

11

HOSE,EXHAUST 3

F3X-U758D-00-00

$17.22

12

HOSE CLAMP ASSY

90450-99801-00

$4.01

13

PILOT, WATER

F2C-U753B-01-00

$2.58

14

GASKET

F2C-U7564-02-00

$4.70

15

NUT

F2C-U2733-00-00

$2.00

16

CLIP

90467-150A5-00

$2.58

17

BASE, CLAMP

F1W-U828M-00-00

$1.29

18

RIVET, BLIND

90267-48806-00

$2.16

19

CLAMP

90464-32801-00

$1.29

20

PLATE

F1S-U757B-01-00

$24.39

21

VALVE, EXHAUST

F1B-U751G-10-00

Unavailable

22

NUT, LOCK

F2N-U142L-00-00

$1.00
