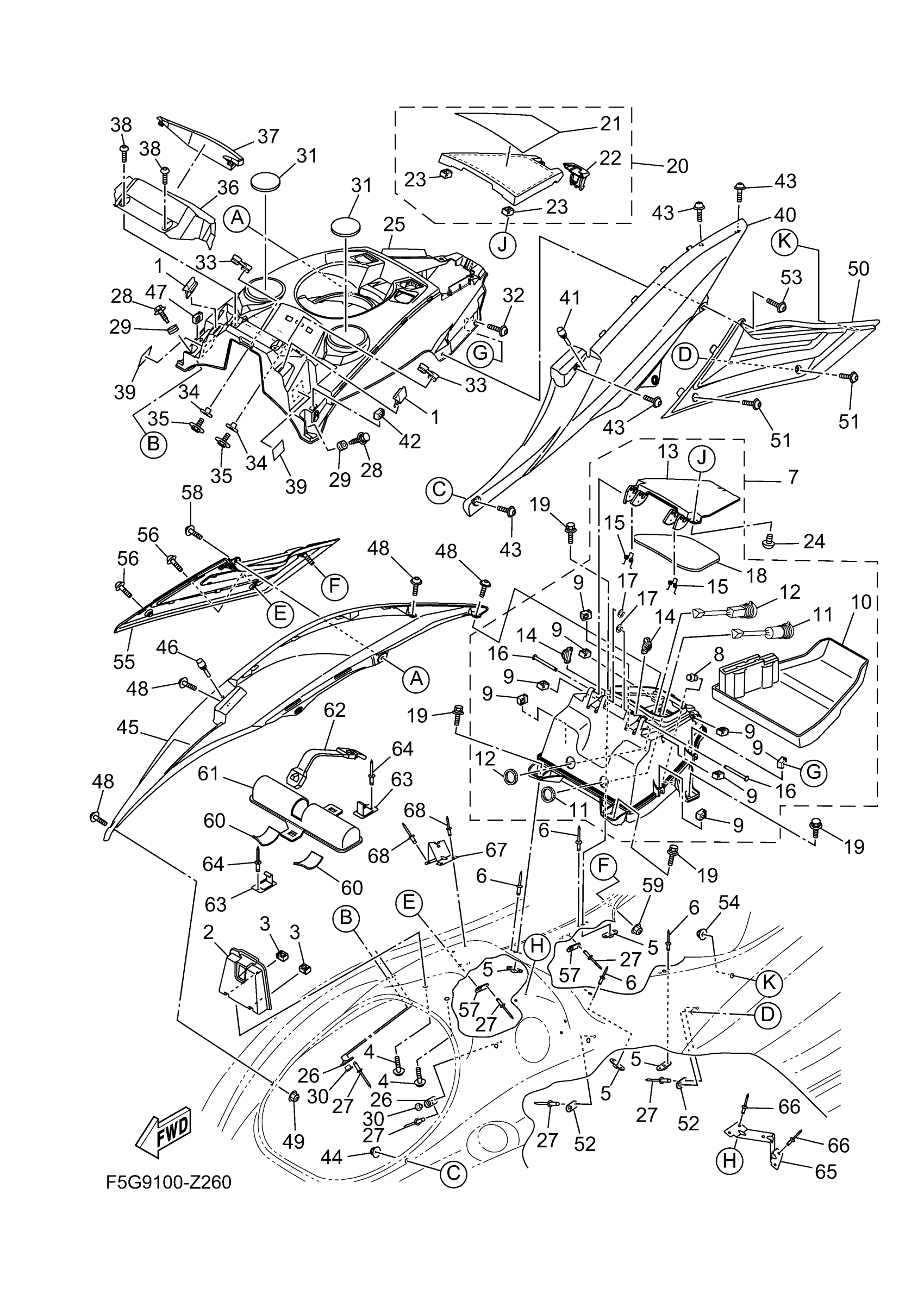

Yamaha FX1800BB (CRUIS SVHO WAUDI) F5GD 2025 ENGINE HATCH 1 Diagram

#

Description
Price

1

PACKING 4

F1K-U266C-10-00

$2.27

2

HOOK,LID LOCK

F5G-U517F-02-00

$16.65

3

NUT

F3X-U517E-00-00

$1.23

4

BOLT, WITH WASHER

90119-06880-00

$3.52

5

BRACKET

F2C-U826C-00-00

$3.79

6

RIVET 1

F4P-U516R-01-00

$4.87

7

GLOVE BOX HATCH ASSY

F5G-U1708-01-00

$330.29

8

. SEAL

F3X-U2723-00-00

$2.16

9

NUT

F3X-U517E-00-00

$1.23

10

INNER, CASE

F5G-U591L-00-00

$69.68

11

TERMINAL COMP.

F5G-H254B-00-00

$28.02

12

PLUG, USB

F5G-H21E1-00-00

$81.80

13

HING,HATCH 1

F5G-U2811-01-00

$24.98

14

GEAR ASSY

F5G-U0210-00-00

$9.08

15

SPRING, TORSION

F5G-U1395-01-00

Unavailable

16

PIN, HINGE

F5G-U517R-00-00

Unavailable

17

. E-RING

F5G-U515C-00-00

$1.67

18

PACKING CASE

F5G-U519D-01-00

Unavailable

19

BOLT, WITH WASHER

90119-08828-00

$2.30

20

GLOVE BOX COVER ASSY

F5G-U4705-01-00

$51.50

21

. LABEL, WARNING UNIFORM 1

F5G-U41B1-00-00

Unavailable

22

. LOCK

F4N-U2875-00-00

$3.95

23

NUT

F3X-U517E-00-00

$1.23

24

BOLT, HEXAGON SOCKET BUTTON

90111-06873-00

$5.03

25

COVER, CENTER

F5G-U5554-02-00

$79.28

26

PLATE, FIX

F2X-U5175-00-00

$1.80

27

RIVET (EU0)

90267-48938-00

$5.00

28

BOLT, WITH WASHER

90119-06820-00

$3.52

29

DAMPER 1

F5G-U828E-00-00

$1.97

30

COLLAR

F5G-U2119-00-00

$5.68

31

MAT

F5G-U3844-00-00

$2.95

32

SCREW

F5G-U6829-09-00

Unavailable

33

GROMMET

F3X-U1338-00-00

$1.67

34

COLLAR

F3X-U151R-00-00

$1.14

35

BOLT

F3X-U1355-00-00

$0.83

36

COVER METER

F5G-U8262-01-00

$18.92

37

ORNAMENT, METER

F5G-U826F-01-00

$45.44

38

SCREW

F2S-U13C1-00-00

$2.36

39

PACKING

F2C-U1743-00-00

$1.87

40

COVER,SIDE 1 (LGB)

F5G-U377B-01-98

$140.89

40

COVER,SIDE 1 (MBWS

F5G-U377B-01-P6

Unavailable

41

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

42

NUT

F3X-U517E-00-00

$1.23

43

SCREW

F5G-U6829-09-00

Unavailable

44

NUT, LOCK

F2N-U142L-00-00

$1.00

45

COVER,SIDE 2 (LGB)

F5G-U377C-01-98

$160.59

45

COVER,SIDE 2 (MBWS

F5G-U377C-01-P6

Unavailable

46

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

47

NUT

F3X-U517E-00-00

$1.23

48

SCREW

F5G-U6829-09-00

Unavailable

49

NUT, LOCK

F2N-U142L-00-00

$1.00

50

SIDE ORNAMENT ASSY

F3X-U370J-H0-00

Unavailable

50

SIDE ORNAMENT ASSY 1

F3X-U370J-L0-00

$122.71

51

SCREW

F5G-U6829-00-00

$0.91

52

PLATE, FIX

F2X-U5175-00-00

$1.80

53

SCREW

F5G-U6829-09-00

Unavailable

54

NUT, LOCK

F2N-U142L-00-00

$1.00

55

SIDE ORNAMENT ASSY

F3X-U370K-H0-00

Unavailable

55

SIDE ORNAMENT ASSY 2

F3X-U370K-L0-00

$122.71

56

SCREW

F5G-U6829-00-00

$0.91

57

PLATE, FIX

F2X-U5175-00-00

$1.80

58

SCREW

F5G-U6829-09-00

Unavailable

59

NUT, LOCK

F2N-U142L-00-00

$1.00

60

MAT 2

F1K-U759C-00-00

$1.72

61

BOX, FIRE EXTINGUISHER

F1K-U5983-01-00

$17.94

62

BAND 1

F2P-U828K-00-00

$5.87

63

HOOK A

F1K-U5772-04-00

$6.29

64

RIVET (EU0)

90267-48938-00

$5.00

65

RFM.,DASH BOARD 1

F5G-U974A-00-00

$6.89

66

RIVET 1

F4P-U516R-01-00

$4.87

67

RFM.,DASH BOARD 2

F5G-U974B-00-00

$6.89

68

RIVET 1

F4P-U516R-01-00

$4.87
