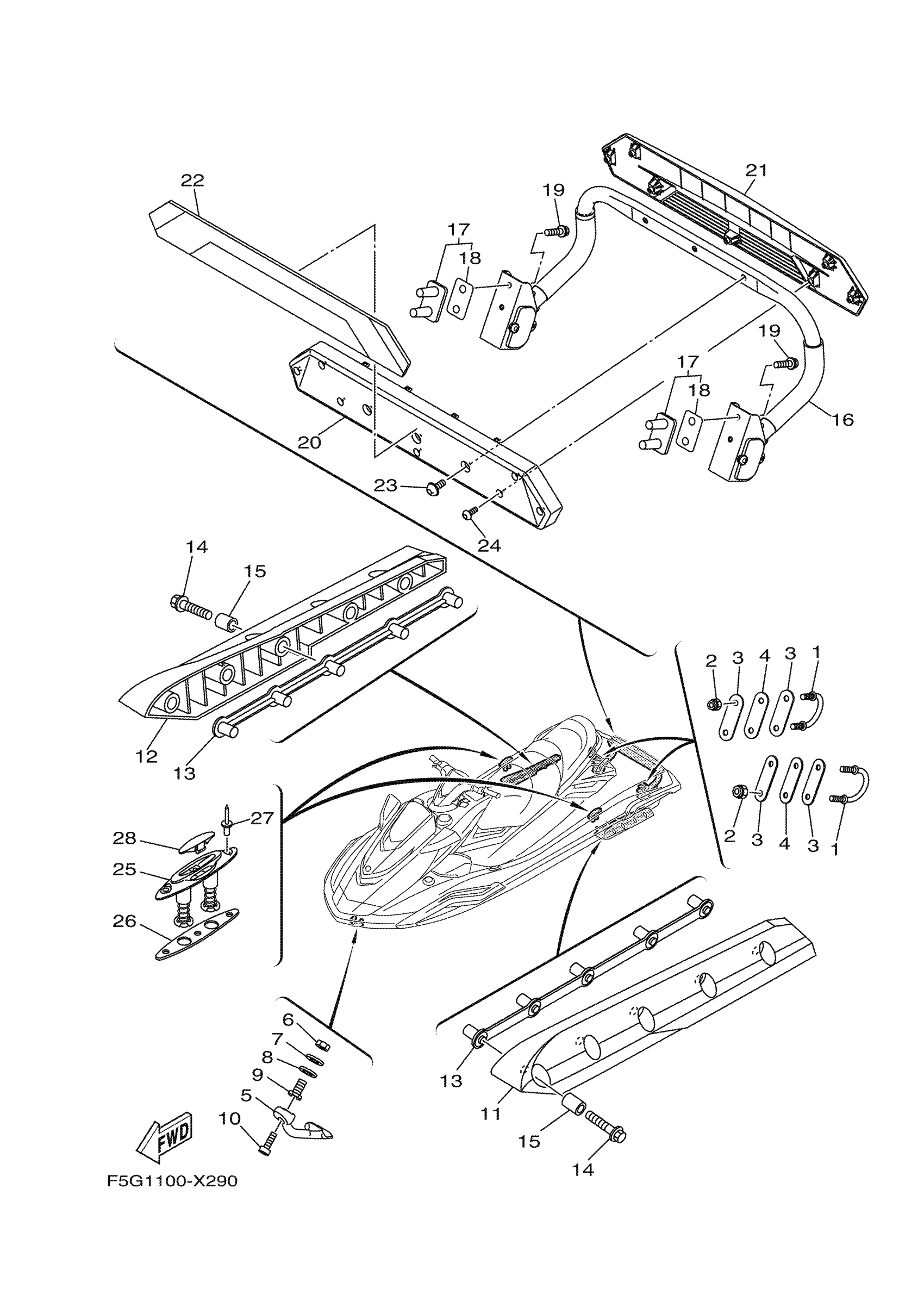

Yamaha FX1800AY (FX LIMITED SVHO) F5G6 2023 HULL & DECK 2 Diagram

#

Description
Price

1

STERN EYE

F2N-U1628-02-00

Unavailable

2

NUT, NYLON (6J8)

95780-08300-00

Unavailable

3

PLATE A

GP7-U4953-10-00

Unavailable

4

PACKING

F1B-U1653-03-00

$4.99

5

BOW EYE 1

F1K-61624-00-00

Unavailable

6

NUT.HEX.(COARS)

99780-12600-00

Unavailable

7

YBS66-12 WASHER,PLAIN

92990-12200-00

$8.49

8

WASHER

F0X-61637-00-00

Unavailable

9

NUT

F0X-61652-01-00

$15.99

10

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

Unavailable

11

STABILIZER LH

F1S-U883N-01-00

Unavailable

12

STABILIZER RH

F1S-U883P-01-00

Unavailable

13

BRACKET,STABILIZER

F1X-U883T-02-00

Unavailable

14

BOLT,WASHER BASED

90105-088F9-00

Unavailable

15

SPACER

F2N-U8169-10-00

Unavailable

16

LADDER, STEP ASSY

F3X-U278A-00-00

Unavailable

17

BRACKET, LADDER LH

F2S-U278F-01-00

Unavailable

18

PACKING, BRKT. 1

F2S-U278H-01-00

Unavailable

19

BOLT, WITH WASHER

90119-08844-00

Unavailable

20

STEP

F3X-U882F-02-00

Unavailable

21

PLATE, STEP 1

F3X-U884R-01-00

Unavailable

22

COVER STEP 1

F3X-U4994-00-00

Unavailable

23

BOLT, WITH WASHER

90119-06830-00

Unavailable

24

SCREW

F2S-U13C1-00-00

Unavailable

25

CLEAT ASSY.

F4G-U163A-02-00

Unavailable

26

PACKING

F4G-U2284-10-00

Unavailable

27

RIVET, BLIND

90267-489U2-00

Unavailable

28

COVER

F1X-U826D-01-00

Unavailable
