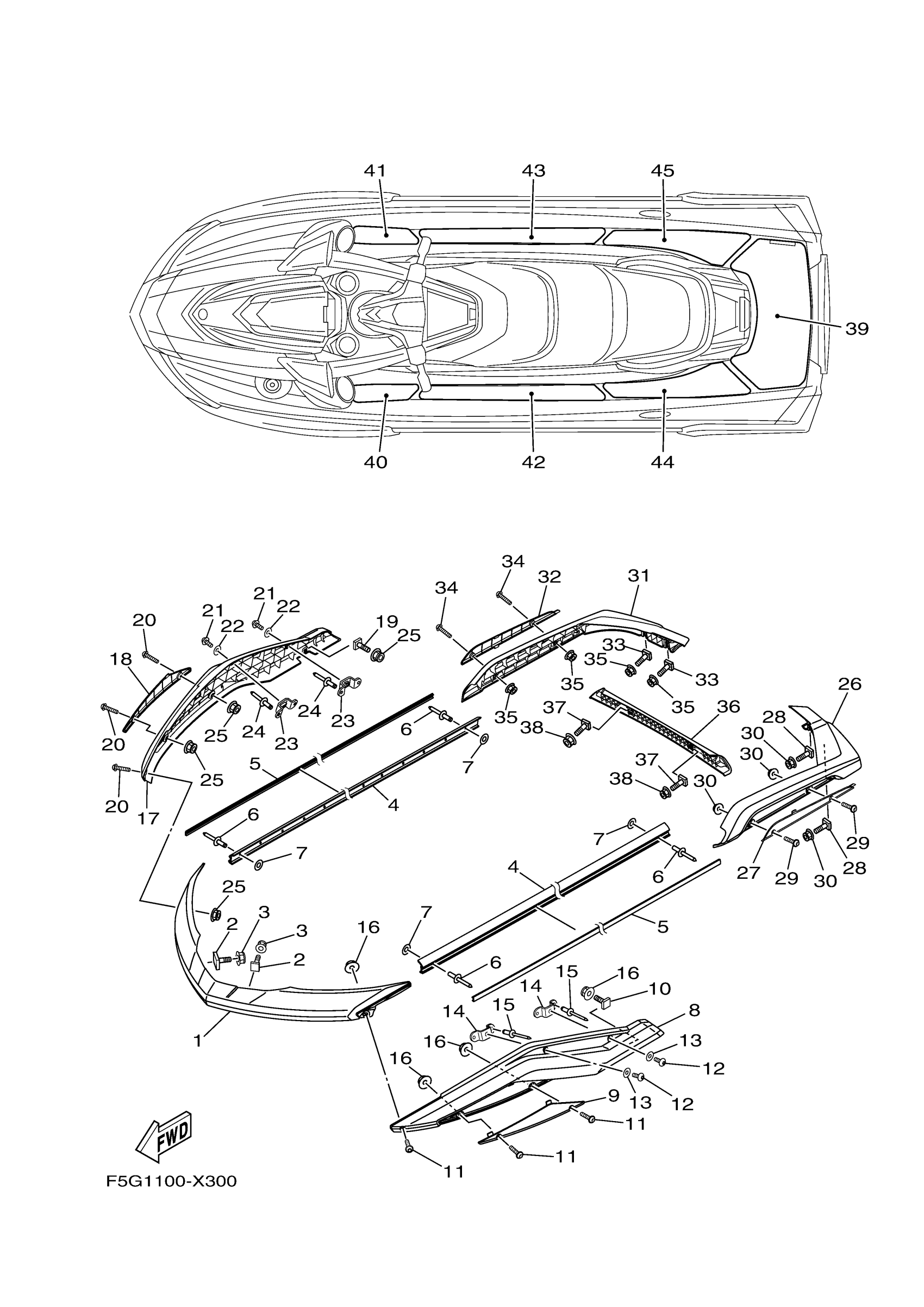

Yamaha FX1800AY (FX LIMITED SVHO) F5G6 2023 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F3X-U2511-01-00

Unavailable

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

Unavailable

4

GUNWALE, SIDE

F3X-U2512-00-00

Unavailable

5

INNER,GUNWALE

F3X-U2519-A0-00

Unavailable

6

RIVET, BLIND

90267-489U8-00

Unavailable

7

WASHER

9299R-05200-00

Unavailable

8

JOINT, GUNWALE LH

F3X-U252E-00-00

Unavailable

9

GUNWALL INSIDE

F3X-U2514-L0-00

Unavailable

10

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

11

SCREW

F3X-U7823-12-00

Unavailable

12

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

13

WASHER, PLATE

90201-06805-00

Unavailable

14

BRACKET

F3X-U4949-00-00

Unavailable

15

RIVET, BLIND

90267-489U6-00

Unavailable

16

NUT, LOCK

F2N-U142L-00-00

Unavailable

17

JOINT, GUNWALE RH

F3X-U252F-00-00

Unavailable

18

GUNWALL INSIDE

F3X-U2514-M0-00

Unavailable

19

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

20

SCREW

F3X-U7823-12-00

Unavailable

21

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

22

WASHER, PLATE

90201-06805-00

Unavailable

23

BRACKET

F3X-U4949-00-00

Unavailable

24

RIVET, BLIND

90267-489U6-00

Unavailable

25

NUT, LOCK

F2N-U142L-00-00

Unavailable

26

GUNWALE, STERN 1

F3X-U251D-00-00

Unavailable

27

INNER GUNWALE, AFT

F3X-U255C-L1-00

Unavailable

28

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

29

SCREW

F3X-U7823-12-00

Unavailable

30

NUT, LOCK

F2N-U142L-00-00

Unavailable

31

GUNWALE, STERN 2

F3X-U251E-00-00

Unavailable

32

INNER GUNWALE, AFT

F3X-U255C-M1-00

Unavailable

33

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

34

SCREW

F3X-U7823-12-00

Unavailable

35

NUT, LOCK

F2N-U142L-00-00

Unavailable

36

COVER, GUNWALE 1

F3X-U252C-01-00

Unavailable

37

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

38

NUT, LOCK

F2N-U142L-00-00

Unavailable

39

MAT, UPPER

F3X-U3581-01-00

Unavailable

40

MAT, STEP 1

F3V-U351H-00-00

Unavailable

41

MAT, STEP 2

F3V-U351J-00-00

Unavailable

42

MAT, STEP 3

F3X-U351K-00-00

Unavailable

43

MAT, STEP 4

F3X-U351M-00-00

Unavailable

44

MAT, STEP 5

F3X-U351N-00-00

Unavailable

45

MAT, STEP 6

F3X-U351P-00-00

Unavailable
