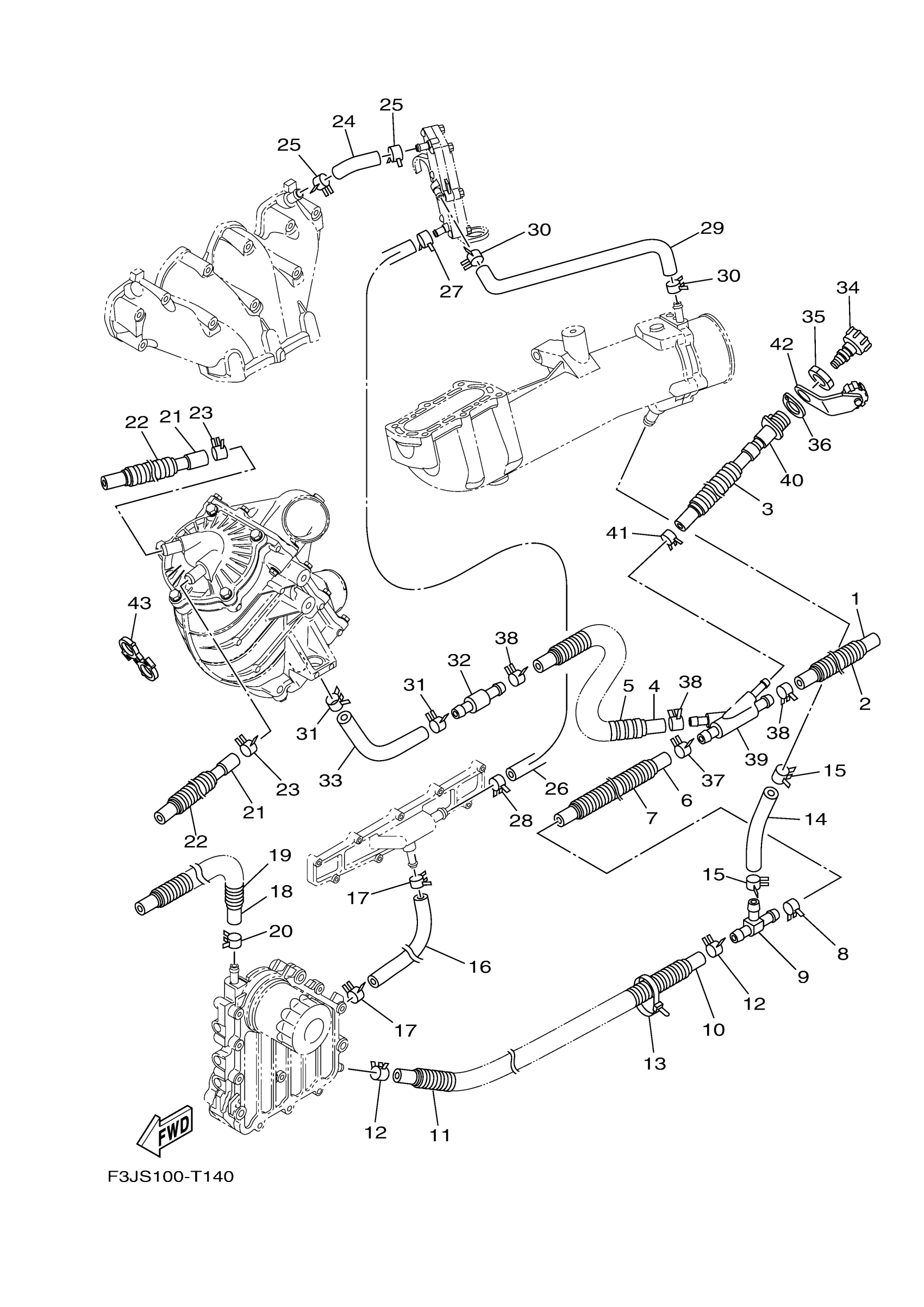

Yamaha FX1800AY (FX LIMITED SVHO) F5G6 2023 EXHAUST 2 Diagram

#

Description
Price

1

HOSE

F3X-U1273-00-00

$11.18

2

TUBE

F2T-U773D-20-00

Unavailable

3

TUBE (L485)

90447-19801-00

$3.51

4

HOSE (L970)

90445-21807-00

$14.16

5

TUBE (L850)

90447-22802-00

$4.03

6

HOSE 2

6S5-1243E-01-00

$21.53

7

TUBE

F2T-U773D-00-00

$1.34

8

CLIP

90467-200A3-00

$6.07

9

JOINT, HOSE 3

6BH-12584-00-00

$4.55

10

HOSE (L400)

90445-18012-00

$18.99

11

TUBE (L260)

90447-19005-00

$3.58

12

CLIP

90467-160A0-00

$3.03

13

CLAMP(3XW)

90464-35132-00

$6.67

14

HOSE 6

6S5-12589-01-00

Unavailable

15

CLIP

90467-200A3-00

$6.07

16

HOSE 5

6BH-1244H-00-00

$20.88

17

CLIP

90467-141A3-00

Unavailable

18

HOSE 5

6CS-12588-00-00

$27.60

19

TUBE (L760)

90447-19018-00

$8.94

20

CLIP

90467-160A0-00

$3.03

21

HOSE 8

6CS-12552-00-00

$20.88

22

TUBE

F3J-U773D-00-00

$4.70

23

CLIP

90467-170A4-00

$2.16

24

HOSE 2

6ET-12577-00-00

$7.16

25

CLIP

90467-160A0-00

$3.03

26

HOSE 4

6ET-12579-00-00

$8.19

27

CLIP

90467-160A0-00

$3.03

28

CLIP

90467-170A5-00

$3.79

29

HOSE 1

6ET-12576-01-00

$13.99

30

CLIP

90467-160A0-00

$3.03

31

CLIP

90467-200A3-00

$6.07

32

JOINT, HOSE 4

6S5-12594-00-00

$4.48

33

HOSE 1

6S5-12576-01-00

$22.37

34

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.85

35

NUT

EU0-61652-00-00

$11.77

36

PACKING

F2S-U7525-01-00

Unavailable

37

CLIP

90467-200A3-00

$6.07

38

CLIP

90467-200A3-00

$6.07

39

JOINT, HOSE 1

6ET-12581-10-00

$31.33

40

JOINT ASSY

64T-12580-00-00

$111.93

41

CLIP

90467-150A5-00

$2.58

42

CAP,1

6EY-84385-00-00

$10.63

43

CLAMP

90464-24003-00

$2.69
