- FX1800AY (FX LIMITED SVHO) F5G6 2023
ENGINE HATCH 1

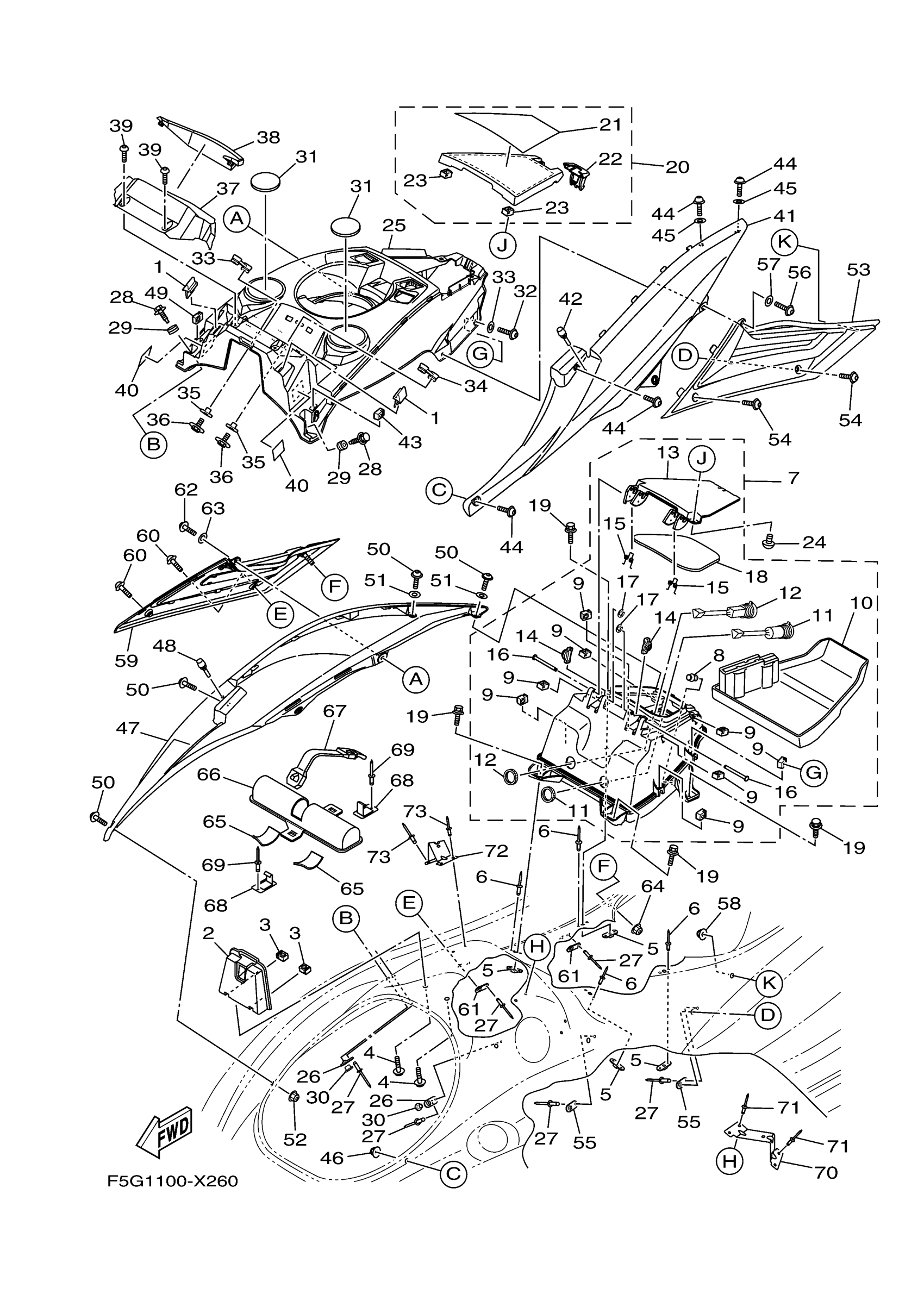

Yamaha FX1800AY (FX LIMITED SVHO) F5G6 2023 ENGINE HATCH 1 Diagram
#
1
PACKING 4
F1K-U266C-10-00
$4.99
2
HOOK,LID LOCK
F5G-U517F-02-00
Unavailable
3
NUT
F3X-U517E-00-00
Unavailable
4
BOLT, WITH WASHER
90119-06880-00
Unavailable
5
BRACKET
F2C-U826C-00-00
Unavailable
6
RIVET 1
F4P-U516R-01-00
Unavailable
7
GLOVE BOX HATCH ASSY
F5G-U1708-01-00
$349.99
8
. SEAL
F3X-U2723-00-00
Unavailable
9
NUT
F3X-U517E-00-00
Unavailable
10
INNER, CASE
F5G-U591L-00-00
$85.99
11
TERMINAL COMP.
F5G-H254B-00-00
$47.99
12
PLUG, USB
F5G-H21E1-00-00
$96.99
13
HING,HATCH 1
F5G-U2811-01-00
$30.99
14
GEAR ASSY
F5G-U0210-00-00
$9.99
15
SPRING, TORSION
F5G-U1395-01-00
Unavailable
16
PIN, HINGE
F5G-U517R-00-00
Unavailable
17
. E-RING
F5G-U515C-00-00
Unavailable
18
PACKING CASE
F5G-U519D-01-00
Unavailable
19
BOLT, WITH WASHER
90119-08828-00
Unavailable
20
GLOVE BOX COVER ASSY
F5G-U4705-01-00
Unavailable
21
. LABEL, WARNING UNIFORM 1
F5G-U41B1-00-00
Unavailable
22
. LOCK
F4N-U2875-00-00
Unavailable
23
NUT
F3X-U517E-00-00
Unavailable
24
BOLT, HEXAGON SOCKET BUTTON
90111-06873-00
Unavailable
25
COVER, CENTER
F5G-U5554-02-00
Unavailable
26
PLATE, FIX
F2X-U5175-00-00
Unavailable
27
RIVET (EU0)
90267-48938-00
Unavailable
28
BOLT, WITH WASHER
90119-06820-00
Unavailable
29
DAMPER 1
F5G-U828E-00-00
Unavailable
30
COLLAR
F5G-U2119-00-00
Unavailable
31
MAT
F5G-U3844-00-00
Unavailable
32
SCREW
F3X-U7823-12-00
Unavailable
33
WASHER, PLATE
90201-06805-00
Unavailable
34
GROMMET
F3X-U1338-00-00
Unavailable
35
COLLAR
F3X-U151R-00-00
Unavailable
36
BOLT
F3X-U1355-00-00
Unavailable
37
COVER METER
F5G-U8262-01-00
Unavailable
38
ORNAMENT, METER
F5G-U826F-01-00
Unavailable
39
SCREW
F2S-U13C1-00-00
Unavailable
40
PACKING
F2C-U1743-00-00
Unavailable
41
COVER,SIDE 1 (PCS1)
F5G-U377B-01-P4
Unavailable
42
. CUSHION, RUBBER
F1W-U3768-01-00
Unavailable
43
NUT
F3X-U517E-00-00
Unavailable
44
SCREW
F3X-U7823-12-00
Unavailable
45
WASHER, PLATE
90201-06805-00
Unavailable
46
NUT, LOCK
F2N-U142L-00-00
Unavailable
47
COVER,SIDE 2 (PCS1)
F5G-U377C-01-P4
Unavailable
48
. CUSHION, RUBBER
F1W-U3768-01-00
Unavailable
49
NUT
F3X-U517E-00-00
Unavailable
50
SCREW
F3X-U7823-12-00
Unavailable
51
WASHER, PLATE
90201-06805-00
Unavailable
52
NUT, LOCK
F2N-U142L-00-00
Unavailable
53
SIDE ORNAMENT ASSY 1
F3X-U370J-F0-00
Unavailable
54
SCREW
F3X-U7823-02-00
Unavailable
55
PLATE, FIX
F2X-U5175-00-00
Unavailable
56
SCREW
F3X-U7823-12-00
Unavailable
57
WASHER, PLATE
90201-06805-00
Unavailable
58
NUT, LOCK
F2N-U142L-00-00
Unavailable
59
SIDE ORNAMENT ASSY 2
F3X-U370K-F0-00
Unavailable
60
SCREW
F3X-U7823-02-00
Unavailable
61
PLATE, FIX
F2X-U5175-00-00
Unavailable
62
SCREW
F3X-U7823-12-00
Unavailable
63
WASHER, PLATE
90201-06805-00
Unavailable
64
NUT, LOCK
F2N-U142L-00-00
Unavailable
65
MAT 2
F1K-U759C-00-00
Unavailable
66
BOX, FIRE EXTINGUISHER
F1K-U5983-01-00
Unavailable
67
BAND 1
F2P-U828K-00-00
Unavailable
68
HOOK A
F1K-U5772-04-00
Unavailable
69
RIVET (EU0)
90267-48938-00
Unavailable
70
RFM.,DASH BOARD 1
F5G-U974A-00-00
Unavailable
71
RIVET 1
F4P-U516R-01-00
Unavailable
72
RFM.,DASH BOARD 2
F5G-U974B-00-00
Unavailable
73
RIVET 1
F4P-U516R-01-00
Unavailable
