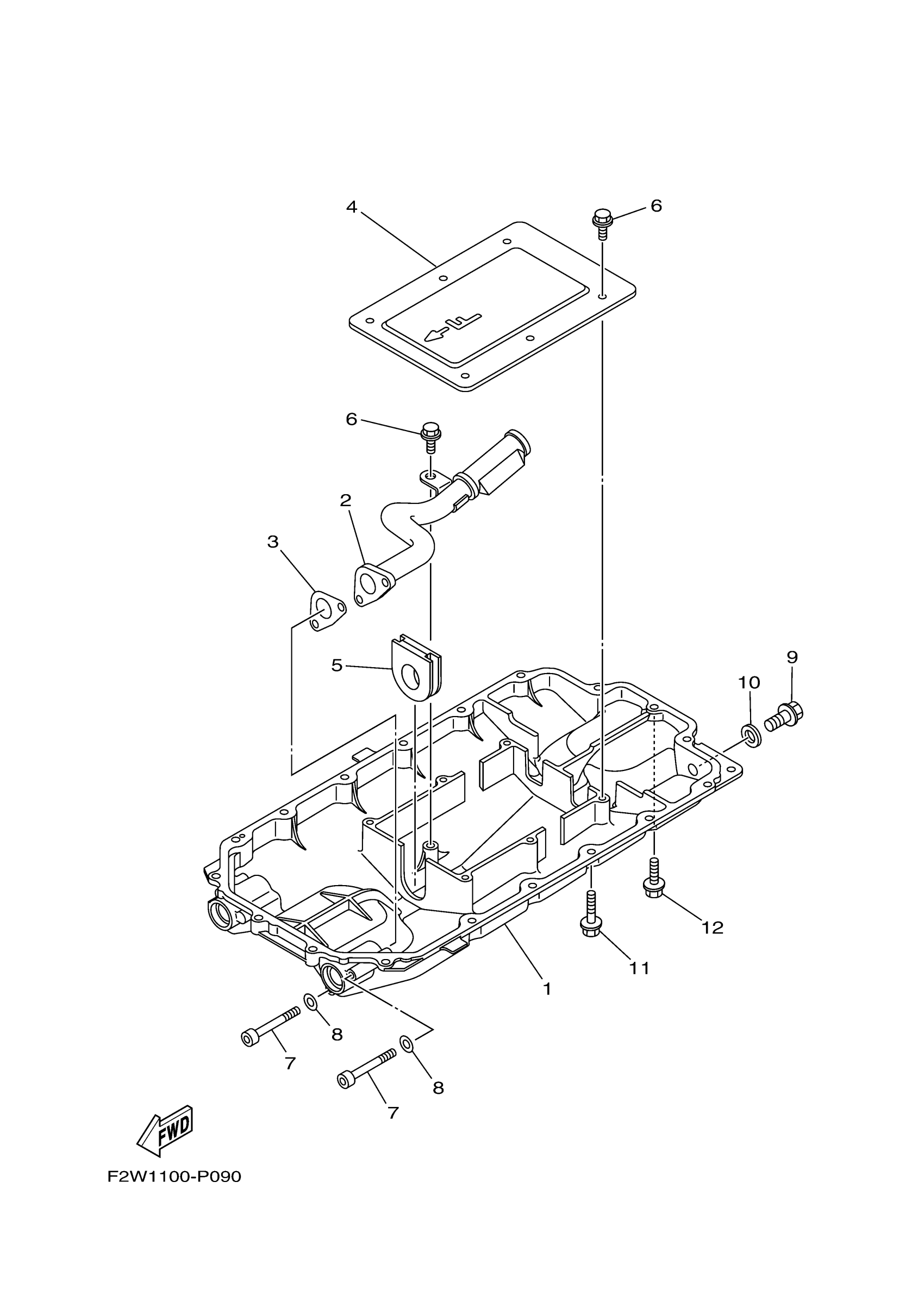

Yamaha FX1800AX (FX LIMITED SVHO) F5G1 2022 OIL PAN Diagram

#

Description
Price

1

PAN, OIL

6S5-1310A-25-00

$660.59

2

OIL PIPE COMP. 1

6S5-13405-11-00

$165.14

3

GASKET

6S5-13477-00-00

$2.95

4

PLATE, BAFFLE

6S5-13317-10-00

$12.86

5

GROMMET

6S5-15486-10-00

$15.89

6

BOLT, FLANGE

95817-06014-00

Unavailable

7

BOLT, SOCKET

91314-06060-00

$6.22

8

WASHER, PLATE

90201-06028-00

$2.36

9

BOLT, FLANGE(4HM)

95814-08020-00

$5.75

10

GASKET(3GH)

90430-08209-00

$2.56

11

BOLT, FLANGE

90105-06195-00

$1.51

12

BOLT, FLANGE DEEP

95E34-06020-00

Unavailable
