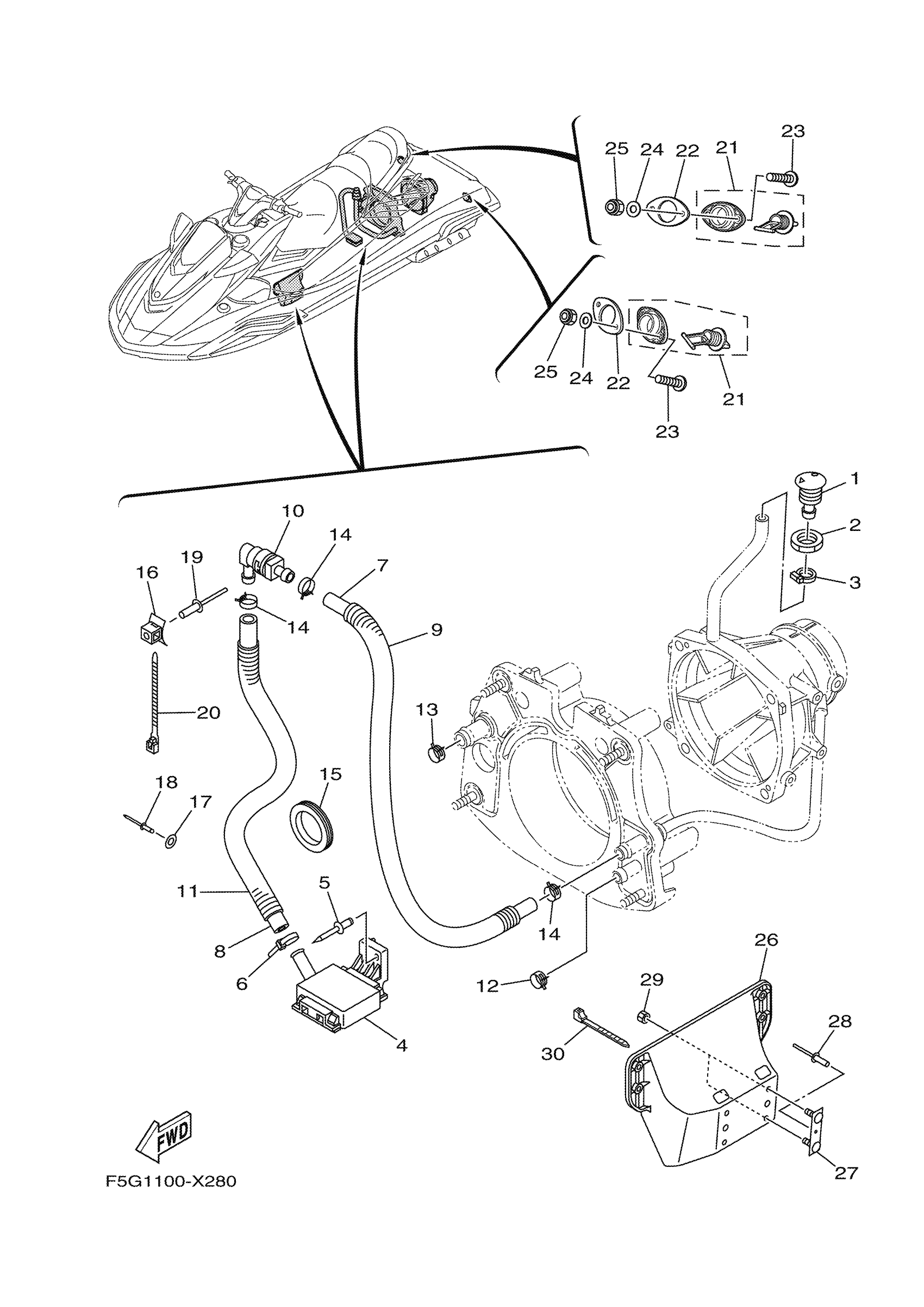

Yamaha FX1800AX (FX LIMITED SVHO) F5G1 2022 HULL & DECK Diagram
#
1
SPOUT
F1W-U269B-00-00
Unavailable
2
NUT
EU0-61652-00-00
Unavailable
3
BAND, HOSE 18
90601-118UF-00
Unavailable
4
STRAINER, BILGE
F1B-U761D-02-00
Unavailable
5
RIVET, BLIND
90267-489U8-00
Unavailable
6
BAND
90601-200U1-00
Unavailable
7
HOSE (L860)
90445-20804-00
Unavailable
8
HOSE (L500)
90445-20800-00
Unavailable
9
HOSE
90446-27M73-00
$21.99
10
JOINT, HOSE
68N-5112T-00-00
Unavailable
11
HOSE(63M)
90446-27M55-00
$16.99
12
CLIP
90467-200A3-00
Unavailable
13
CLIP
90467-240A3-00
Unavailable
14
CLIP
90467-190A2-00
Unavailable
15
GROMMET
F4F-U1338-00-00
Unavailable
16
BASE, CLAMP
F1W-U828M-00-00
Unavailable
17
WASHER
9299R-05200-00
Unavailable
18
RIVET, BLIND
90267-48806-00
Unavailable
19
RIVET, BLIND
90267-48802-00
Unavailable
20
CLAMP
90464-32801-00
Unavailable
21
DRAIN PLUG ASSY
F1S-U2280-02-00
Unavailable
22
PACKING, DRAIN
F1S-U2285-01-00
Unavailable
23
SCREW, PAN HEAD
9788R-05025-00
Unavailable
24
WASHER
9299R-05200-00
Unavailable
25
NUT, FLANGE
9572R-05300-00
Unavailable
26
BRACKET 2
F1W-U8572-01-00
Unavailable
27
BRACKET
F1K-U826C-03-00
Unavailable
28
RIVET (EU0)
90267-48938-00
Unavailable
29
NUT, LOCK
F3Y-U142L-00-00
Unavailable
30
CLAMP
90464-32801-00
Unavailable
