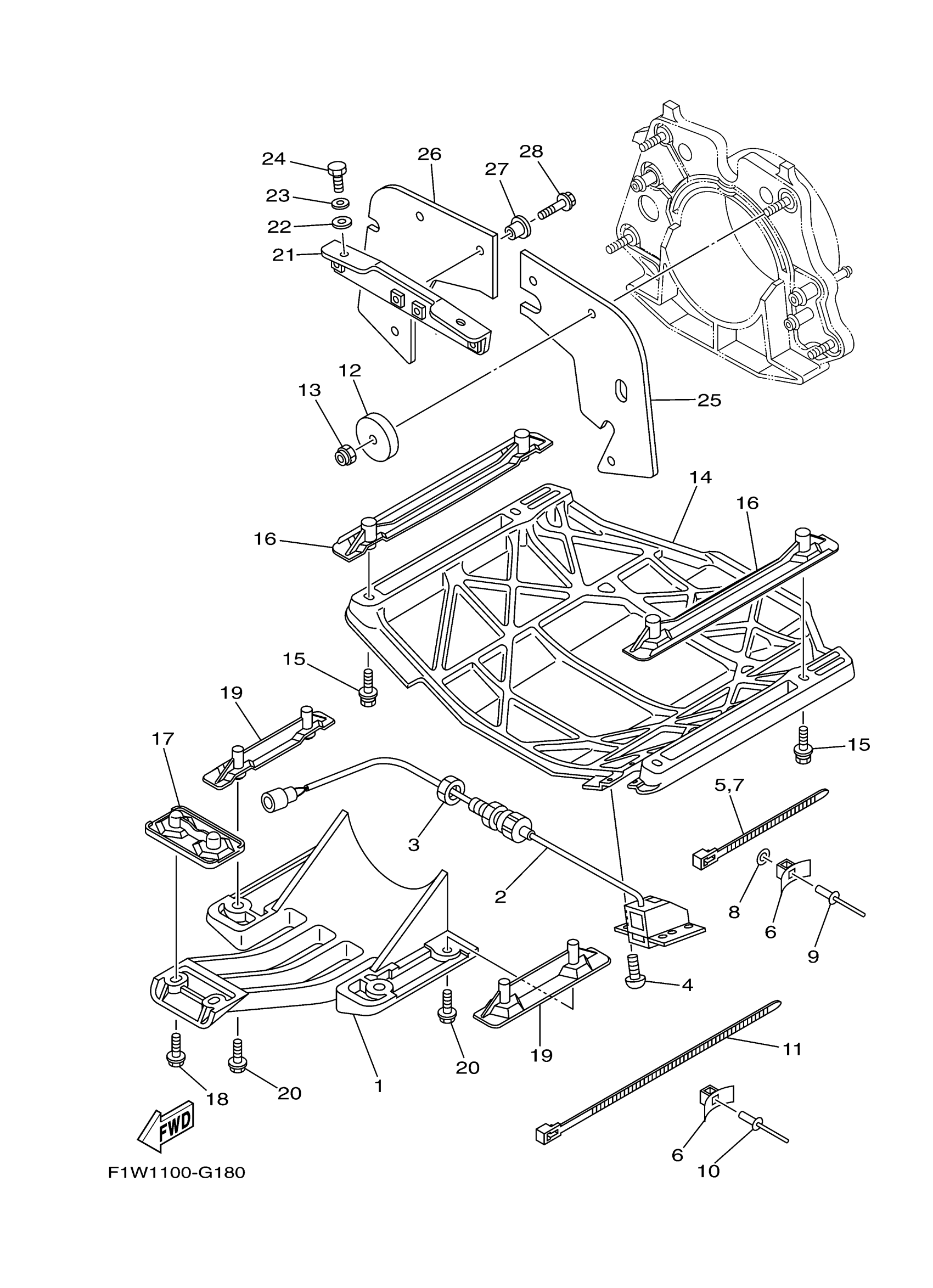

Yamaha FX1800AK (FX CRUISER SHO) F1WK 2011 JET UNIT 4 Diagram

#

Description

Price

1

SCREEN, INTAKE

6S5-R1333-02-00

Unavailable

2

SENSOR SPEED

F1X-U8K31-02-00

Unavailable

3

NUT

F2C-U151S-00-00

Unavailable

4

SCREW, ROUND HEAD

90150-05807-00

Unavailable

5

CLAMP

90464-32801-00

Unavailable

6

BASE, CLAMP

F1W-U828M-00-00

Unavailable

7

CLAMP

90464-32801-00

Unavailable

8

WASHER

9299R-05200-00

Unavailable

9

RIVET, BLIND

90267-48802-00

Unavailable

10

RIVET, BLIND

90267-489U6-00

Unavailable

11

CLAMP

90464-99801-00

Unavailable

12

WASHER

F1S-U725E-01-00

Unavailable

13

NUT, NYLON

9572R-10300-00

Unavailable

14

PLATE 2

F1W-6273B-02-00

Unavailable

15

BOLT, WITH WASHER

90119-08829-00

Unavailable

16

BRACKET 2

F1B-U8572-01-00

Unavailable

17

BRACKET, 3

F1K-U8577-01-00

Unavailable

18

BOLT, WITH WASHER

90119-06896-00

Unavailable

19

BRACKET 1

F1G-U8571-02-00

Unavailable

20

BOLT, WITH WASHER

90119-08829-00

Unavailable

21

BRACKET

F1B-67557-00-00

Unavailable

22

GASKET

90430-12002-00

Unavailable

23

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

24

BOLT

90109-08043-00

Unavailable

25

PLATE, RUBBER 1

F1X-U757E-00-00

Unavailable

26

PLATE, RUBBER 2

F1X-U757F-00-00

Unavailable

27

COLLAR

90387-06080-00

Unavailable

28

BOLT, WITH WASHER

90119-06827-00

Unavailable
