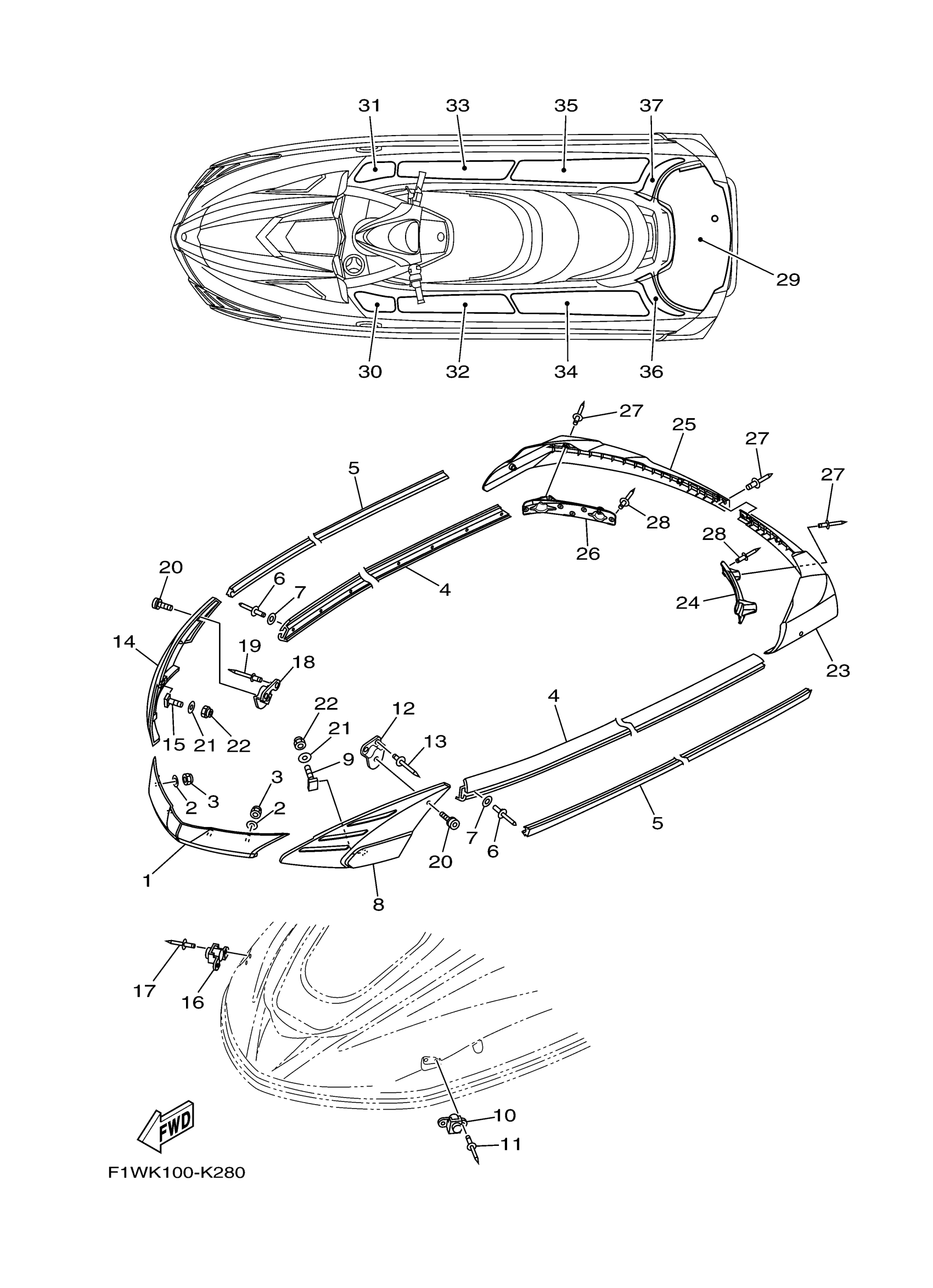

Yamaha FX1800AK (FX CRUISER SHO) F1WK 2011 GUNWALE & MAT Diagram

#

Description
Price

1

BOW GUNWALE COMP.

F1W-U2501-01-00

Unavailable

1

BOW GUNWALE COMP.

F1W-U2501-11-00

Unavailable

2

WASHER

9299R-06200-00

$0.43

3

NUT, NYLON

9572R-06300-00

$2.80

4

GUNWALE, SIDE

F1B-U2512-00-00

$127.26

4

GUNWALE, SIDE

F1B-U2512-20-00

$242.41

5

INNER,GUNWALE

F1B-U2519-10-00

$57.79

6

RIVET, BLIND

90267-489U8-00

$0.99

7

WASHER

9299R-05200-00

$3.16

8

JOINT,GUNWALE LH

F1W-U252E-02-00

Unavailable

8

JOINT,GUNWALE LH

F1W-U252E-11-00

$70.68

9

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

10

GROMMET ASSY

F1W-U250B-00-00

$4.24

11

RIVET, BLIND

90267-489U6-00

$1.37

12

BRACKET

F1W-U4949-00-00

$3.26

13

RIVET, BLIND

90267-489U6-00

$1.37

14

JOINT,GUNWALE RH

F1W-U252F-02-00

Unavailable

14

JOINT,GUNWALE RH

F1W-U252F-11-00

Unavailable

15

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

16

GROMMET ASSY

F1W-U250B-00-00

$4.24

17

RIVET, BLIND

90267-489U6-00

$1.37

18

BRACKET

F1W-U4949-00-00

$3.26

19

RIVET, BLIND

90267-489U6-00

$1.37

20

BOLT,HEX. SOCKET BUTTON

90111-06115-00

$2.95

21

WASHER

9299R-06200-00

$0.43

22

NUT, NYLON

9572R-06300-00

$2.80

23

GUNWALE, STERN 1

F1W-U251D-02-00

$163.62

23

GUNWALE, STERN 1

F1W-U251D-11-00

$93.16

24

BRACKET, GUNWALE 1

F1W-U251L-01-00

$4.70

25

GUNWALE, STERN 2

F1W-U251E-02-00

$163.62

25

GUNWALE, STERN 2

F1W-U251E-11-00

$102.58

26

BRACKET, GUNWALE 2

F1W-U251M-01-00

$4.70

27

RIVET, BLIND

90267-48825-00

$1.44

28

RIVET, BLIND

90267-489U8-00

$0.99

29

MAT, UPPER

F1W-U3581-00-00

$93.92

29

MAT, UPPER

F1W-U3581-10-00

$98.47

30

MAT, STEP 1

F1W-U351H-00-00

$6.29

30

MAT, STEP 1

F1W-U351H-10-00

$6.36

31

MAT, STEP 2

F1W-U351J-00-00

$5.00

31

MAT, STEP 2

F1W-U351J-10-00

$6.14

32

MAT, STEP 3

F1W-U351K-00-00

$24.23

32

MAT, STEP 3

F1W-U351K-10-00

$24.23

33

MAT, STEP 4

F1W-U351M-00-00

$24.23

33

MAT, STEP 4

F1W-U351M-10-00

Unavailable

34

MAT, STEP 5

F1W-U351N-00-00

Unavailable

34

MAT, STEP 5

F1W-U351N-10-00

$29.53

35

MAT, STEP 6

F1W-U351P-00-00

$29.53

35

MAT, STEP 6

F1W-U351P-10-00

$29.53

36

MAT, STEP 7

F1W-U351R-00-00

$13.62

36

MAT, STEP 7

F1W-U351R-10-00

Unavailable

37

MAT, STEP 8

F1W-U351S-00-00

$12.11

37

MAT, STEP 8

F1W-U351S-10-00

$12.86
