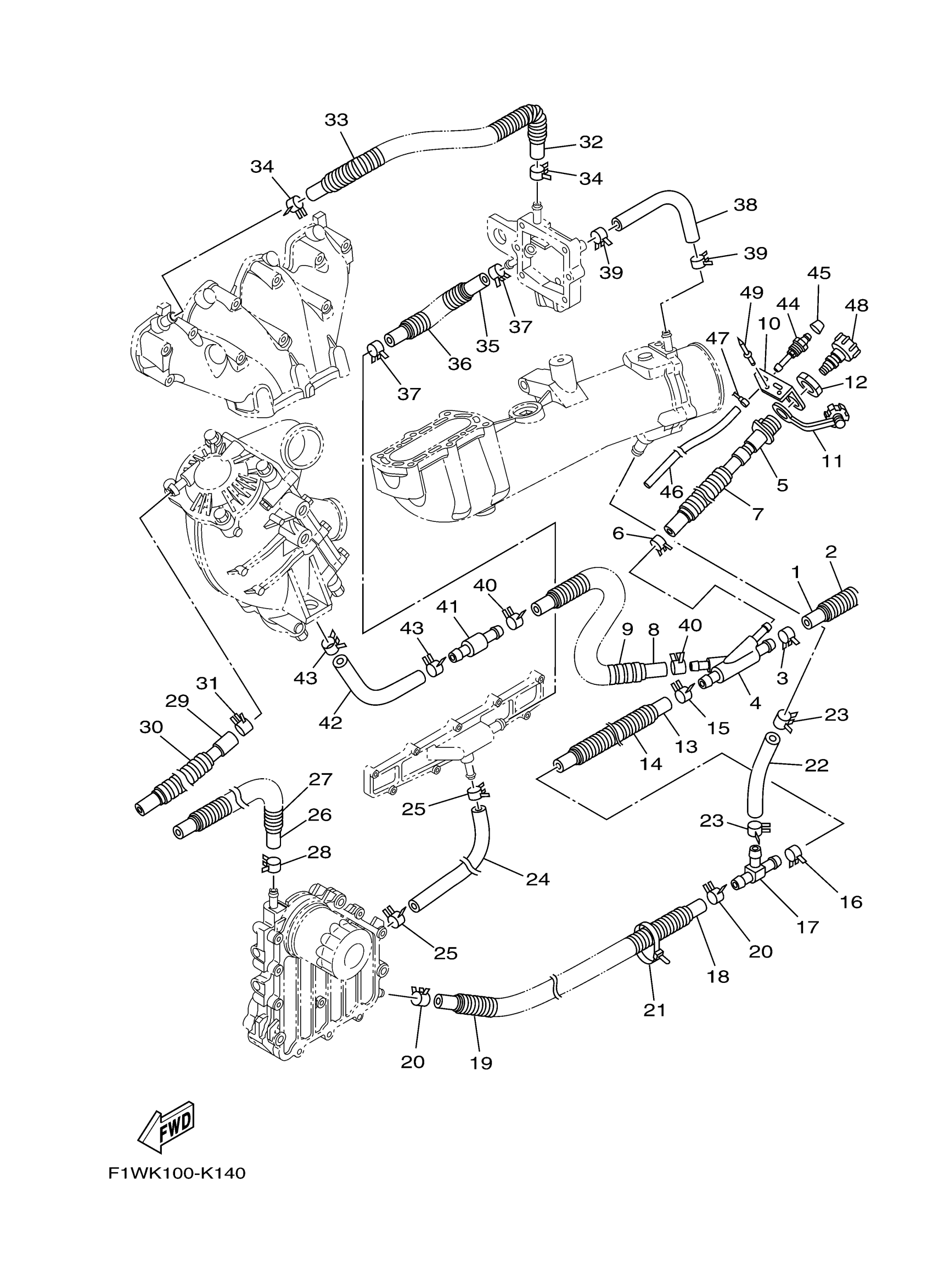

Yamaha FX1800AK (FX CRUISER SHO) F1WK 2011 EXHAUST 2 Diagram

#

Description
Price

1

HOSE (L250)

90445-21806-00

$12.67

2

TUBE

F2T-U773D-20-00

Unavailable

3

CLIP

90467-200A0-00

$7.59

4

JOINT, HOSE 1

6CS-12581-00-00

$32.82

5

JOINT ASSY

63M-12580-00-00

$76.37

6

CLIP

90467-150A0-00

$3.41

7

TUBE (L485)

90447-19801-00

$3.51

8

HOSE (L970)

90445-21807-00

$14.16

9

TUBE (L850)

90447-22802-00

$4.03

10

STAY

6S5-12443-00-00

$22.37

11

CAP,1

682-84385-01-00

$7.21

12

NUT

EU0-61652-00-00

$11.77

13

HOSE 2

6S5-1243E-01-00

$21.53

14

TUBE

F2T-U773D-00-00

$1.34

15

CLIP

90467-200A0-00

$7.59

16

CLIP

90467-200A0-00

$7.59

17

JOINT, HOSE 3

6BH-12584-00-00

$4.55

18

HOSE (L400)

90445-18012-00

$18.99

19

TUBE (L260)

90447-19005-00

$3.58

20

CLIP

90467-160A0-00

$3.03

21

CLAMP(3XW)

90464-35132-00

Unavailable

22

HOSE 6

6S5-12589-01-00

Unavailable

23

CLIP

90467-200A0-00

$7.59

24

HOSE 5

6BH-1244H-00-00

$20.88

25

. CLIP

90467-150A1-00

$3.41

26

HOSE 5

6S5-12588-00-00

$16.22

27

HOSE, WITH SPRING (L=630)

90447-19006-00

$7.14

28

CLIP

90467-160A0-00

$3.03

29

HOSE 8

6S5-12552-00-00

$22.37

30

HOSE (L420)

90446-24M89-00

$7.21

31

CLIP

90467-170A0-00

$2.80

32

HOSE 2

6S5-12577-00-00

$15.66

33

HOSE(63M)

90446-27M55-00

Unavailable

34

CLIP

90467-160A0-00

$3.03

35

HOSE 4

6S5-12579-00-00

$19.39

36

TUBE (L150)

90447-19011-00

$2.69

37

CLIP

90467-160A0-00

$3.03

38

HOSE (L220)

90445-16013-00

$11.18

39

CLIP

90467-160A0-00

$3.03

40

CLIP

90467-200A0-00

$7.59

41

JOINT, HOSE 4

6S5-12594-00-00

$4.48

42

HOSE 1

6S5-12576-01-00

$22.37

43

CLIP

90467-200A0-00

$7.59

44

NIPPLE, GREASE

61L-5169A-00-00

$8.94

45

CAP, GREASE NIPPLE

663-45119-01-00

Unavailable

46

HOSE (L445)

90445-09M21-00

Unavailable

47

CLAMP

90465-10098-00

$2.24

48

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.85

49

RIVET (EU0)

90267-48938-00

$4.72
