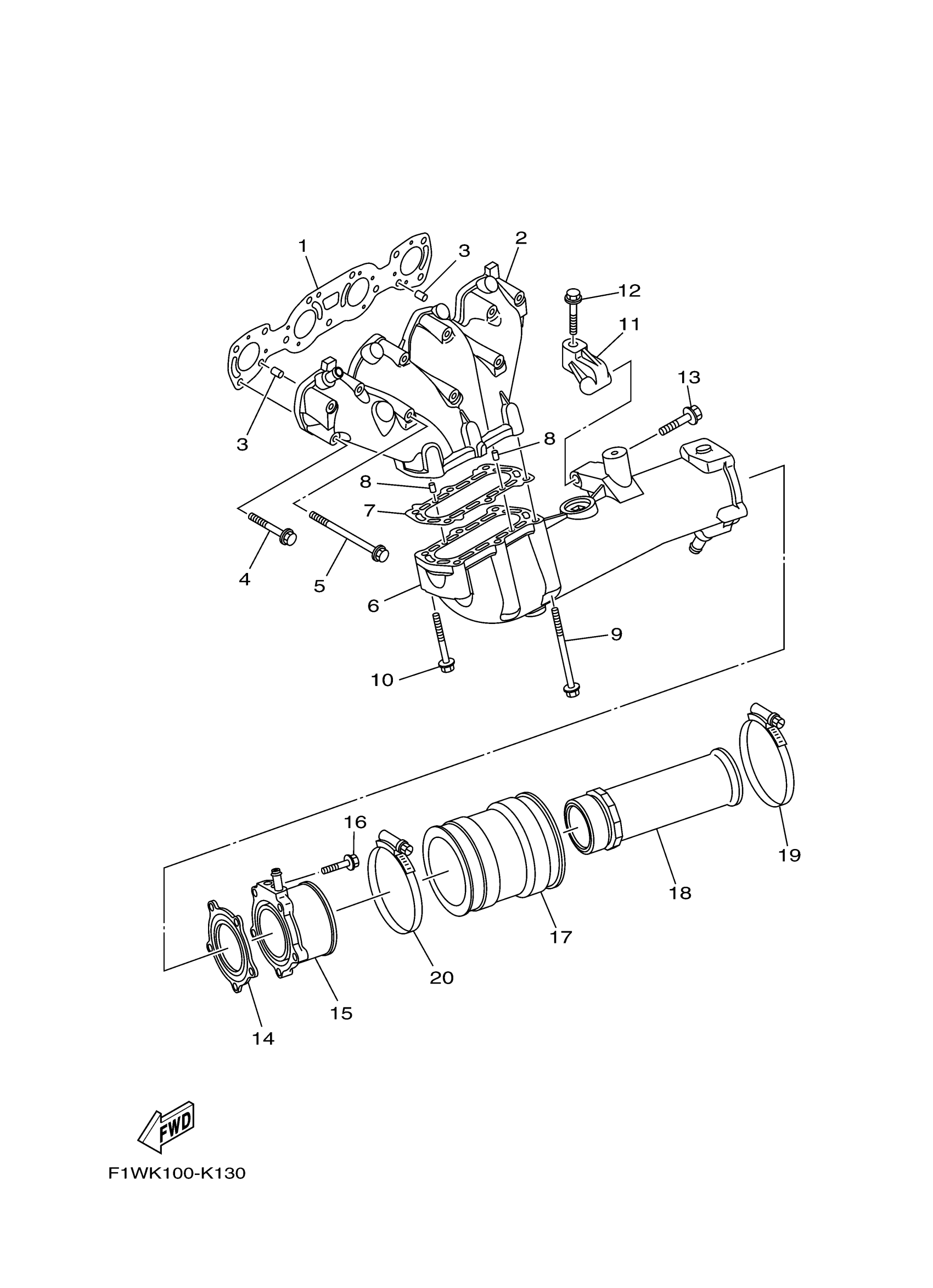

Yamaha FX1800AK (FX CRUISER SHO) F1WK 2011 EXHAUST 1 Diagram

#

Description
Price

1

. GASKET, EXHAUST PIPE

6S5-14613-00-00

$35.93

2

MUFFLER 1

6S5-14711-00-94

$921.20

3

PIN, DOWEL

93608-16M16-00

$2.41

4

BOLT, WITH WASHER

90119-08034-00

$3.33

5

BOLT, WITH WASHER

90119-08097-00

$5.18

6

MUFFLER 2

6BH-14721-11-00

$890.89

7

. GASKET, MUFFLER DAMPER 1

6S5-14739-00-00

$22.22

8

PIN, DOWEL (614)

93606-12019-00

$3.05

9

BOLT, WITH WASHER

90119-08097-00

$5.18

10

BOLT, WITH WASHER

90119-08034-00

$3.33

11

STAY, MUFFLER 1

6S5-14771-00-00

$75.74

12

BOLT, WITH WASHER

90119-08096-00

$5.00

13

BOLT, WITH WASHER

90119-10076-00

$4.09

14

. GASKET, MUFFLER DAMPER 2

6BH-14749-00-00

$17.77

15

PIPE, TAIL

6BH-14784-01-00

$183.32

16

BOLT, FLANGE(3EF)

95024-08035-00

Unavailable

17

PIPE, OUTLET

6S5-E4752-01-00

Unavailable

18

PIPE 1

6CS-1475A-00-00

$206.05

19

HOSE CLAMP ASSY(62T)

90450-99M06-00

Unavailable

20

HOSE CLAMP ASSY

90450-90M10-00

$52.99
