CRANKSHAFT & PISTON

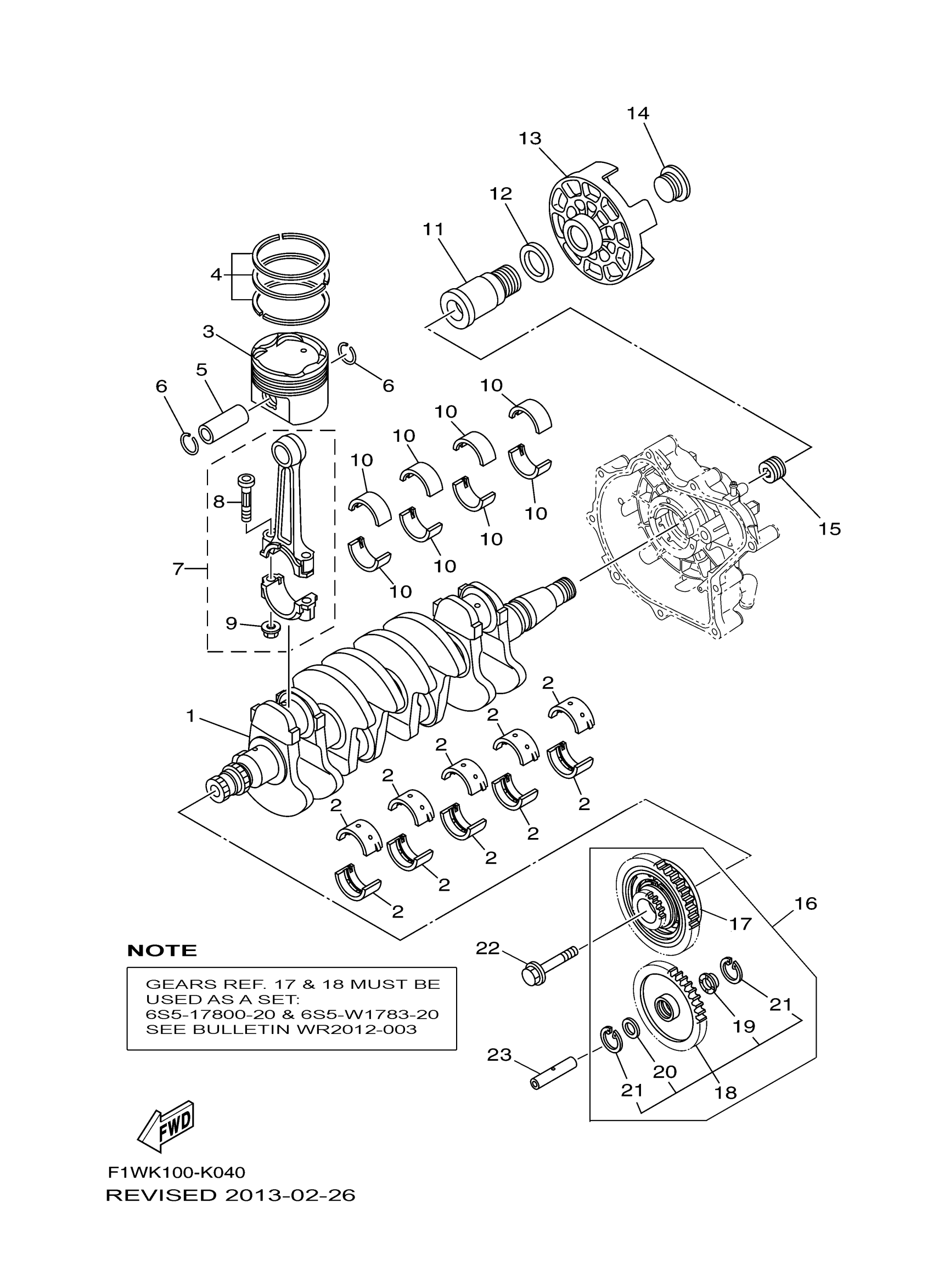

Yamaha FX1800AK (FX CRUISER SHO) F1WK 2011 CRANKSHAFT & PISTON Diagram
#
1
CRANKSHAFT
6S5-11411-01-00
Unavailable
2
PLANE BEARING, CRANKSHAFT 1
6S5-11416-00-00
Unavailable
2
PLANE BEARING, CRANKSHAFT 1
6S5-11416-10-00
Unavailable
2
PLANE BEARING, CRANKSHAFT 1
6S5-11416-20-00
Unavailable
2
PLANE BEARING, CRANKSHAFT 1
6S5-11416-30-00
Unavailable
2
PLANE BEARING, CRANKSHAFT 1
6S5-11416-40-00
Unavailable
3
PISTON (STD)
6ET-11631-01-B0
Unavailable
4
PISTON RING SET (STD)
6S5-11603-01-00
Unavailable
5
PIN, PISTON
6S5-11633-00-00
Unavailable
6
CIRCLIP 256116340000
93450-24028-00
$5.60
7
CONNECTING ROD ASSY
6S5-11650-00-00
Unavailable
8
. BOLT, CONNECTING ROD
6S5-11654-00-00
Unavailable
9
NUT (11H)
90179-09379-00
$8.49
10
PLANE BEARING, CONNECTING ROD
6S5-11656-00-00
Unavailable
10
PLANE BEARING, CONNECTING ROD
6S5-11656-10-00
Unavailable
10
PLANE BEARING, CONNECTING ROD
6S5-11656-20-00
Unavailable
10
PLANE BEARING, CONNECTING ROD
6S5-11656-30-00
Unavailable
11
SHAFT, TRANSFER
6S5-17572-01-00
Unavailable
12
WASHER
6S5-12289-00-00
Unavailable
13
FLANGE, COUPLING
6S5-45813-01-00
Unavailable
14
HOLDER 2
6S5-17525-01-00
Unavailable
15
NUT, SPECIAL
6S5-11459-01-00
Unavailable
16
GEAR UNIT & DRIVE GEAR SET
99999-04107-00
Unavailable
17
. GEAR UNIT ASSY (57T)
6S5-17800-20-00
Unavailable
18
. DRIVE GEAR & COLLAR SET (18T)
6S5-W1783-20-00
Unavailable
19
. WASHER, THRUST
6S5-17529-00-00
Unavailable
20
WASHER, PLATE
90201-13013-00
Unavailable
21
. CIRCLIP
99009-24700-00
Unavailable
22
BOLT
6S5-17031-00-00
Unavailable
23
SHAFT, MIDDLE DRIVEN
6S5-17553-00-00
Unavailable
