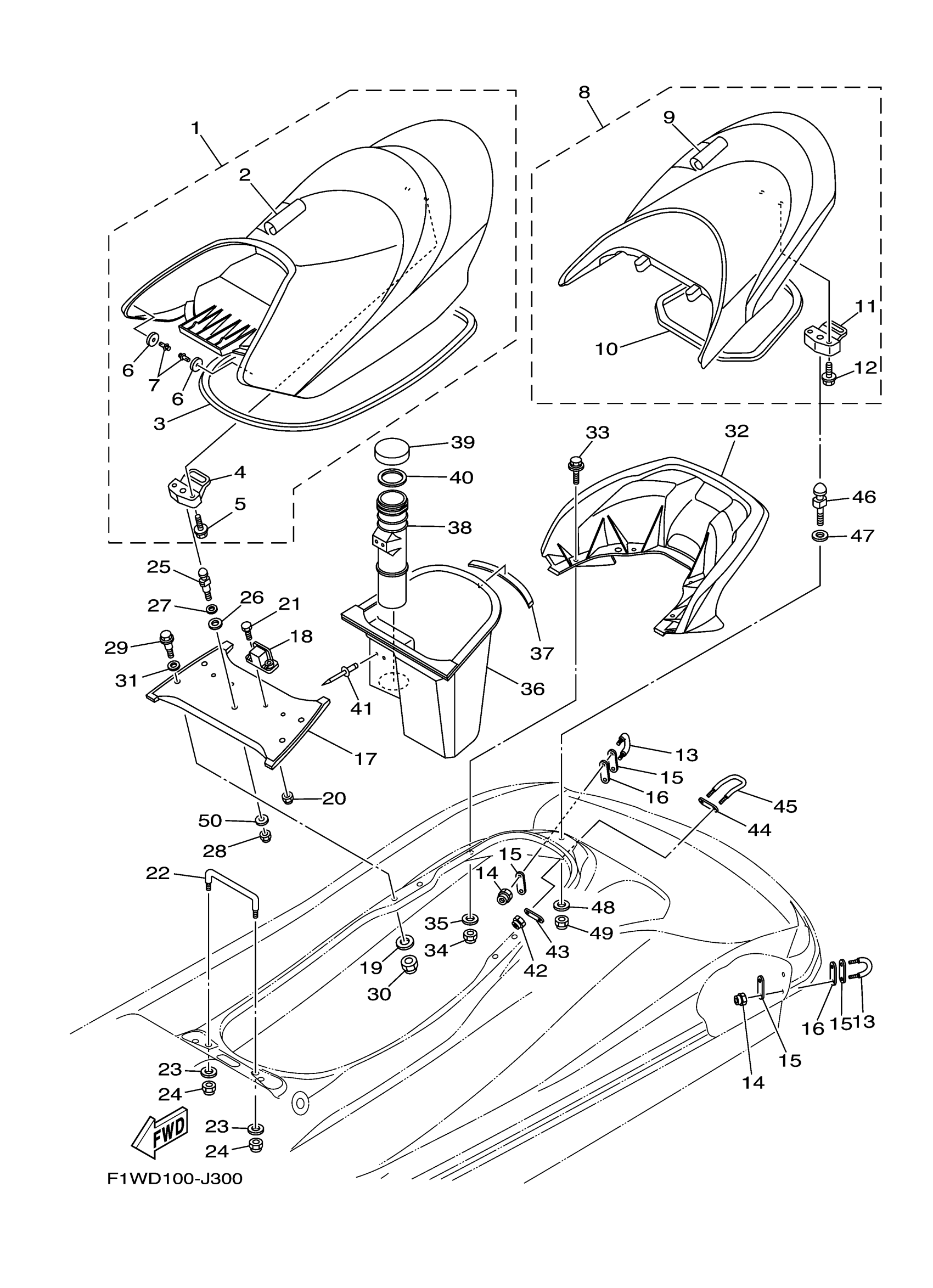

Yamaha FX1800AJ (FX CRUISER SHO) F1WD 2010 SEAT & UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

F1W-U371A-22-00

Unavailable

2

COVER, SEAT 1

F1W-U371B-21-00

Unavailable

3

. PACKING

F1W-U2664-01-00

$33.32

4

SEAT LOCK ASSY

F1B-U3850-02-00

$9.32

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

. BUMPER, SIDE

F1W-U251C-00-00

Unavailable

7

. RIVET, BLIND

90267-48834-00

Unavailable

8

SINGLE SEAT ASSY

F1W-U372A-22-00

Unavailable

9

COVER, SEAT

F1W-U372B-21-00

$156.05

10

. PACKING 5

F1W-U266D-00-00

Unavailable

11

SEAT LOCK ASSY

F1B-U3850-02-00

$9.32

12

BOLT, WITH WASHER

90119-06808-00

$2.16

13

STERN EYE (BLACK)

F1K-61628-00-00

$39.38

14

NUT, NYLON (6J8)

95780-08300-00

$10.55

15

PLATE A

GP7-U4953-10-00

$3.52

16

PACKING

F1B-U1653-03-00

Unavailable

17

BEAM, DECK 1

F1B-U8952-01-00

$228.77

18

STAY,SEAT 2

GU2-6378D-02-00

$19.68

19

WASHER

9299R-08200-00

Unavailable

20

NUT, NYLON

9572R-06300-00

$2.80

21

BOLT

90101-069U0-00

$1.23

22

STAY, SEAT 1

F0X-6378C-00-00

$51.50

23

WASHER, PLATE

90201-099U3-00

$2.16

24

NUT, NYLON (6J8)

95780-08300-00

$10.55

25

PIN

F1B-U3774-00-00

$22.71

26

PACKING 1

F0X-6375E-00-00

$3.64

27

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

28

NUT, NYLON

9572R-10300-00

$3.37

29

BOLT

F1B-U2624-00-00

Unavailable

30

NUT, NYLON (6J8)

95780-08300-00

$10.55

31

WASHER

9299R-10200-00

$1.63

32

GRIP, HAND

F1W-U271B-01-00

Unavailable

33

BOLT, WITH WASHER

90119-08907-00

$5.45

34

NUT, NYLON (6J8)

95780-08300-00

$10.55

35

WASHER

9299R-08200-00

Unavailable

36

LOCKER, UNDER 2

F1B-U4742-01-00

Unavailable

37

.. PACKING,6

F0X-U266E-01-00

$15.89

38

BOX, FIRE EXTINGUISHER

F0X-U5983-01-00

Unavailable

39

. CAP, CASE

EW2-U5912-01-00

Unavailable

40

PACKING, CASE

EW2-U5913-01-00

Unavailable

41

RIVET, 1

F3J-U516R-00-00

$2.36

42

NUT, NYLON (6J8)

95780-08300-00

$10.55

43

PLATE A

GP7-U4953-10-00

$3.52

44

PLATE A

GP7-U4953-10-00

$3.52

45

SKI TOWS

F1B-U1629-00-00

$25.11

46

PIN

GH1-U3774-00-00

$19.38

47

WASHER, PLATE

90201-109U6-00

$3.29

48

WASHER

9299R-10200-00

$1.63

49

NUT, NYLON

9572R-10300-00

$3.37

50

WASHER

9299R-10200-00

$1.63
