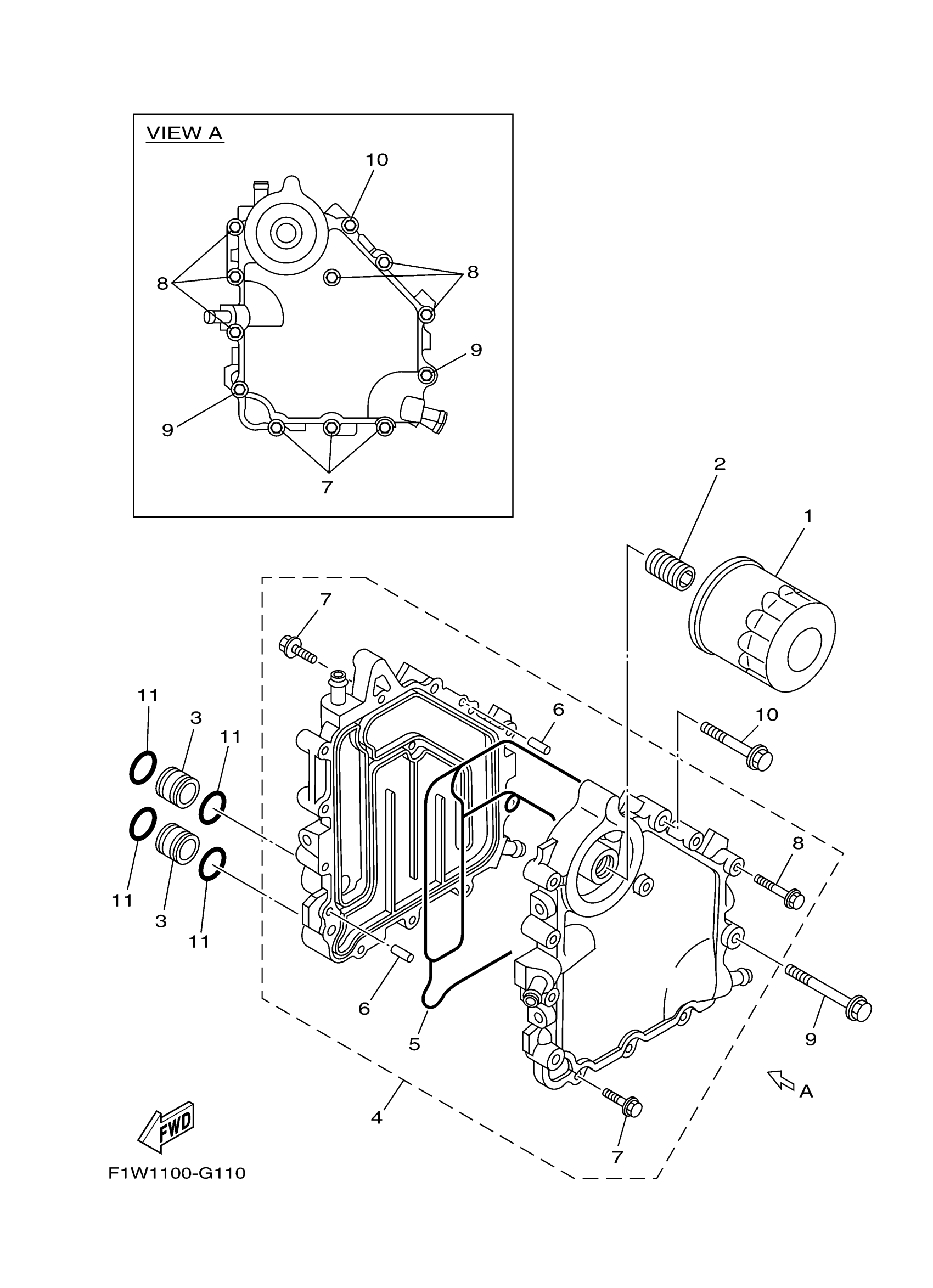

Yamaha FX1800AJ (FX CRUISER SHO) F1WD 2010 OIL COOLER Diagram

#

Description

Price

1

ELEMENT ASSY, OIL CLEANER

69J-13440-05-00

Unavailable

2

BOLT, UNION

6S5-12858-00-00

Unavailable

3

CONNECTOR

60E-13446-00-00

Unavailable

4

OIL COOLER ASSY

6S5-13470-00-00

Unavailable

5

. GASKET, MANIFOLD

6S5-13556-00-00

Unavailable

6

PIN, DOWEL

93604-10M03-00

Unavailable

7

BOLT (6G1)

90105-06M24-00

$1.54

8

BOLT (6E0)

90105-06M16-00

$1.54

9

BOLT, FLANGE

90105-08169-00

Unavailable

10

BOLT, FLANGE

90105-08170-00

Unavailable

11

O-RING (1L9)

93210-18322-00

$5.60
