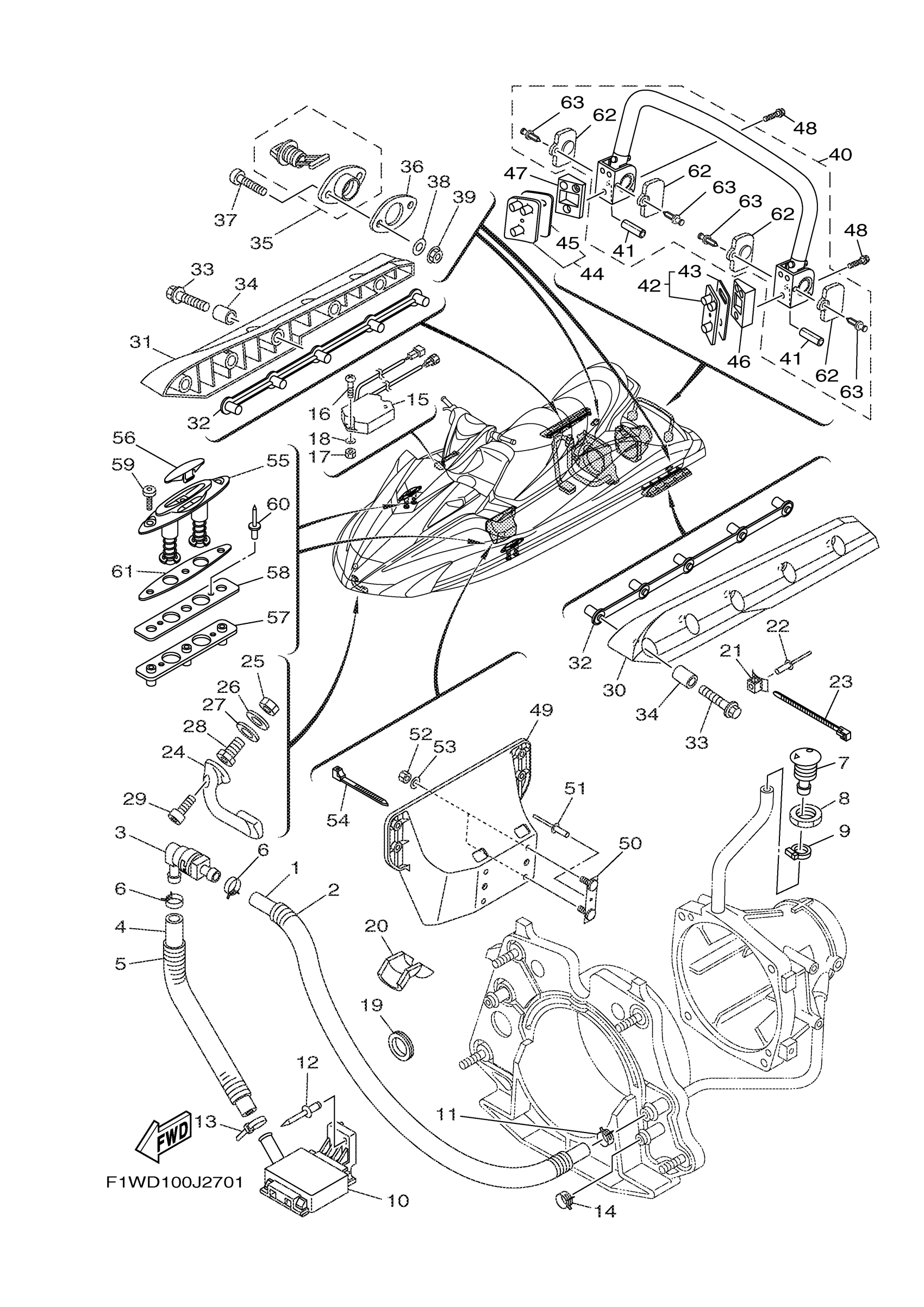

Yamaha FX1800AJ (FX CRUISER SHO) F1WD 2010 HULL & DECK Diagram
#
1
HOSE (L860)
90445-20804-00
Unavailable
2
HOSE
90446-27M73-00
$21.99
3
JOINT, HOSE
68N-5112T-00-00
Unavailable
4
HOSE (L500)
90445-20800-00
Unavailable
5
HOSE(63M)
90446-27M55-00
$16.99
6
CLIP
90467-18804-00
Unavailable
7
SPOUT
F1W-U269B-00-00
Unavailable
8
NUT
EU0-61652-00-00
Unavailable
9
BAND, HOSE 18
90601-118UF-00
Unavailable
10
STRAINER, BILGE
F1B-U761D-02-00
Unavailable
11
CLIP
90467-21800-00
Unavailable
12
RIVET, BLIND
90267-489U8-00
Unavailable
13
BAND
90601-200U1-00
Unavailable
14
CLIP
90467-200A0-00
Unavailable
15
SENSOR, COMPASS
F1X-U8K22-01-00
Unavailable
16
SCREW, PAN HEAD
9788R-05025-00
Unavailable
17
NUT, FLANGE
9572R-05300-00
Unavailable
18
WASHER
9299R-05200-00
Unavailable
19
GROMMET
90480-38800-00
Unavailable
20
TRIM, 1
F1S-U828H-01-00
Unavailable
21
BASE, CLAMP
F1W-U828M-00-00
Unavailable
22
RIVET, BLIND
90267-48802-00
Unavailable
23
CLAMP
90464-32801-00
Unavailable
24
BOW EYE 1
F1K-61624-00-00
Unavailable
25
NUT.HEX.(COARS)
99780-12600-00
Unavailable
26
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
27
WASHER
F0X-61637-00-00
Unavailable
28
NUT
F0X-61652-01-00
Unavailable
29
BOLT, HEXAGON SOCKET HEAD
90110-06280-00
Unavailable
30
STABILIZER LH
F1S-U883N-01-00
Unavailable
31
STABILIZER RH
F1S-U883P-01-00
Unavailable
32
BRACKET,STABILIZER
F1X-U883T-02-00
Unavailable
33
BOLT,WASHER BASED
90105-088F9-00
Unavailable
34
SPACER
F2N-U8169-10-00
Unavailable
35
DRAIN PLUG ASSY
F1S-U2280-02-00
Unavailable
36
PACKING, DRAIN
F1S-U2285-01-00
Unavailable
37
SCREW, PAN HEAD
9788R-05025-00
Unavailable
38
WASHER
9299R-05200-00
Unavailable
39
NUT, FLANGE
9572R-05300-00
Unavailable
40
LADDER, STEP ASSY
F1W-U278A-01-00
Unavailable
41
. SLEEVE 1
F1W-U771H-00-00
Unavailable
42
BRACKET, LADDER LH
F2H-U278F-00-00
Unavailable
43
. PACKING, BRKT 1
F2H-U278H-00-00
Unavailable
44
BRACKET, LADDER RH
F2H-U278G-00-00
Unavailable
45
. PACKING, BRKT 1
F2H-U278H-00-00
Unavailable
46
BRACKET 1
F2H-U278K-00-00
Unavailable
47
BRACKET 2
F2H-U278L-00-00
Unavailable
48
BOLT, WITH WASHER
90119-08844-00
Unavailable
49
BRACKET 2
F1W-U8572-01-00
Unavailable
50
BRACKET
F1K-U826C-03-00
Unavailable
51
RIVET (EU0)
90267-48938-00
Unavailable
52
NUT, NYLON (6J8)
95780-08300-00
Unavailable
53
WASHER
9299R-08200-00
Unavailable
54
CLAMP
90464-32801-00
Unavailable
55
CLEAT ASSY.
F4G-U163A-02-00
Unavailable
56
COVER
F1X-U826D-01-00
Unavailable
57
BRACKET
F1X-U826C-10-00
Unavailable
58
PACKING
F1X-U2157-00-00
Unavailable
59
BOLT
F1W-U2624-00-00
Unavailable
60
RIVET, BLIND
90267-489U6-00
Unavailable
61
PACKING
F4G-U2284-10-00
Unavailable
62
. INNER, COVER SIDE 1
F2C-U377H-00-00
Unavailable
63
. PIN
F2C-U1314-00-00
Unavailable
